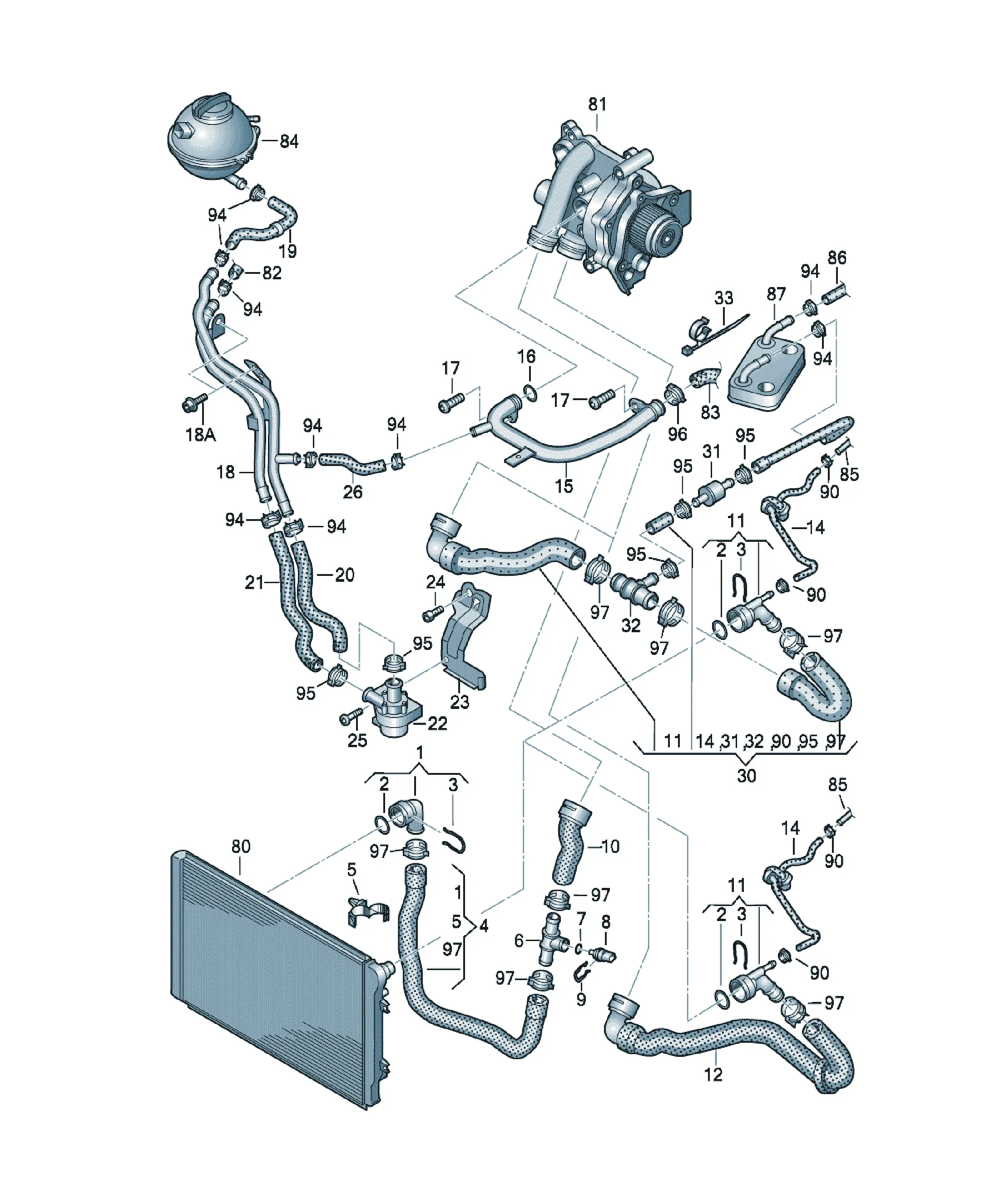

Система охлаждения

[Name] [QTY]

Quick acting coupling 1

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Quick acting coupling 1

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 20X3 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [QTY]

Coolant pipe 1

D >> - 02.03.2008

[Name] [Note] [QTY]

Coolant pipe plastic 1

D - 03.03.2008>>

[Name] [Note] [QTY]

oval head panel screw 6X22 2

D - 03.03.2008>>

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 2

D >> - 02.03.2008

Replacements: N 10721401

[Name] [QTY]

Coolant hose 1

Replacements: 5N0121109E

[Name] [Note] [QTY]

O-ring 32X4 X

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Additional coolant pump 1

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Bracket 1

Additional coolant pump

[Name] [Note] [QTY]

Hex socket head locating bolt M10X12 1

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

retaining spring 32MM X

[Name] [Model info] [QTY]

Coolant hose with quick release coupling PR:G1D 1

For vehicles with:

7-speed dual clutch gearbox

Replacements: 5N0122101AN

[Name] [Model info] [QTY]

Coolant regulator PR:G1D 1

For vehicles with:

7-speed dual clutch gearbox

[Name] [Note] [Model info] [QTY]

connection piece 32X20X32 PR:G1D 1

For vehicles with:

7-speed dual clutch gearbox

[Name] [Note] [Model info] [QTY]

Cable tie with hose retainer 7,0X213,5/23 PR:G1D 1

for cable: 22-24MM

For vehicles with:

7-speed dual clutch gearbox

[Name] [QTY]

Coolant hose with quick release coupling 1

Replacements: 5N0121051M

[Name] [QTY]

Hose bracket 1

[Name] [Note] [QTY]

t-piece 32X32XT 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

Coolant temperature sender 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note]

Cooler for coolant

see illustration, item: 121-082,1

[Name] [Note]

Coolant pump

and

Coolant regulator housing

see illustration, item: 121-004,1

[Name] [Note]

Coolant pipe

see illustration, item: 121-029,15

[Name] [Note]

Coolant hose

see illustration, item: 121-029,1

[Name] [Note]

Reservoir

see illustration, item: 121-082,20

[Name] [Note]

Coolant pipe

see illustration, item: 121-029,11

[Name] [Note] [Model info]

Coolant hose PR:G1D

For vehicles with:

7-speed dual clutch gearbox

see illustration, item: 121-029,20

[Name] [Note] [Model info]

Gear oil cooler PR:G1D

For vehicles with:

7-speed dual clutch gearbox

see illustration, item: 321-060,6

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X
