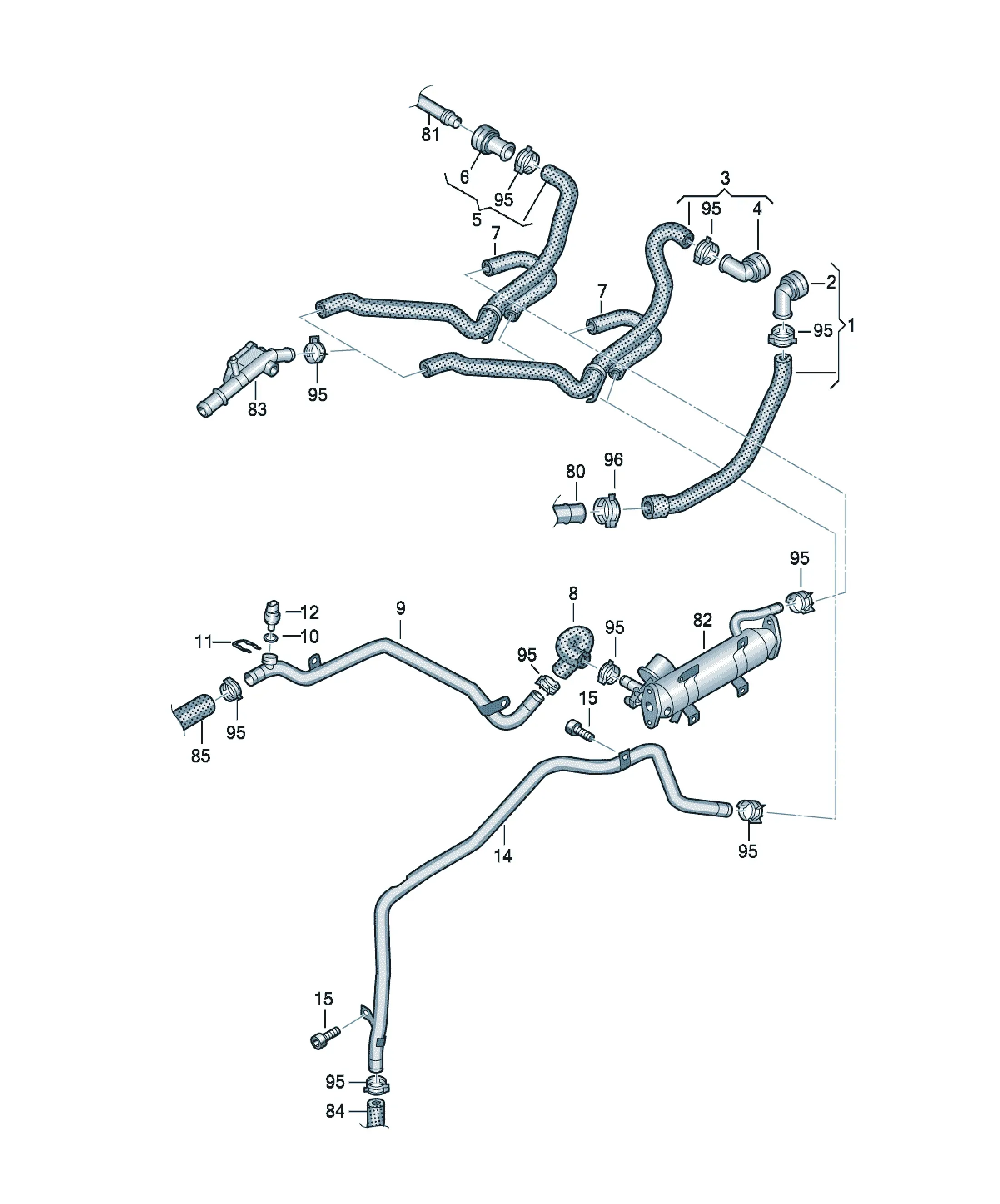

Система охлаждения

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

retaining spring 1

[Name] [QTY]

Coolant temperature sender 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 2

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

Potential individual parts

[Name] [Note] [QTY]

Coolant hose with quick release coupling 1

contains additional positions: 7

[Name] [QTY]

Quick acting coupling 1

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Potential individual parts

WHT009067 seal ring 21,7X29X4-N NW16 1

[Name] [Note] [QTY]

Coolant hose with quick release coupling

for vehicles with auxiliary heater

or

Auxiliary heater for water circuit

contains additional positions: 7

F 5N-8-030 001>>* 1

[Name] [QTY]

Quick acting coupling 1

for vehicles with auxiliary heater

or

Auxiliary heater for water circuit

Items supplied

Quick acting coupling 1

WHT009245 O-ring 22X3,5 NW16 1

Spring clip 1

Retaining ring 1

Potential individual parts

[Name] [Note]

Coolant hose

Included in position: 5

[Name] [QTY]

Coolant hose

F 5N-8-040 001>>* 1

[Name] [Note]

Coolant pipe

see illustration, item: 121-060,17

[Name] [Note]

Coolant pipe

see illustration, item: 819-070,10

[Name] [Note]

Cooler for exhaust recuperation

see illustration, item: 131-040,7

[Name] [Note]

flange

see illustration, item: 121-086,11

D - 03.08.2009>>

[Name] [Note]

flange

see illustration, item: 121-086,1

D >> - 02.08.2009

[Name] [Note]

Coolant hose

see illustration, item: 121-060,11

[Name] [Note]

Coolant hose

see illustration, item: 121-060,6

[Name] [Note] [QTY]

Coolant pipe 1

also use: 5N0 121 101 H 1

Accompanying details: 5N0121101H

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X
