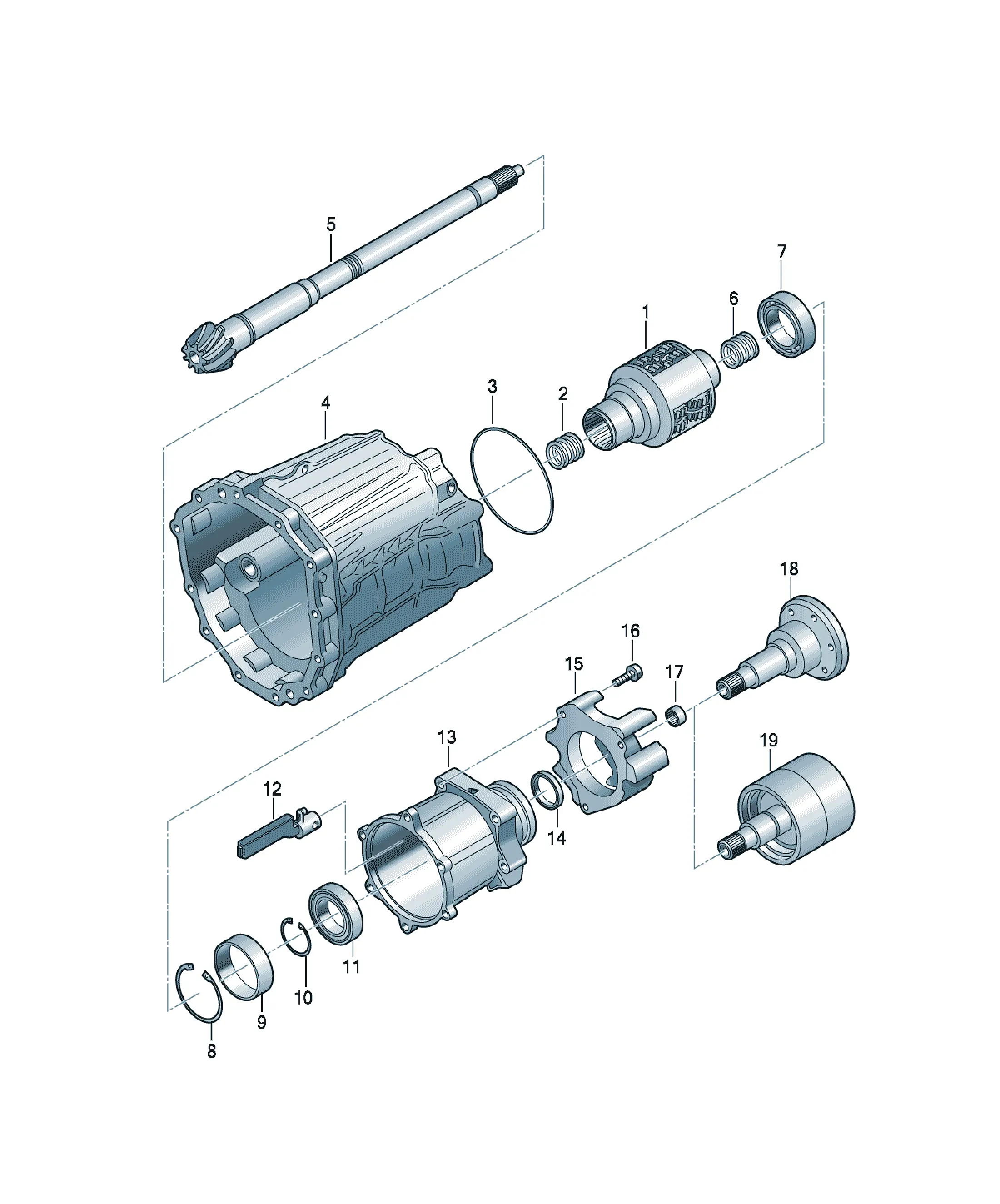

Center differential

[Name] [QTY]

centre differential, self- locking 1

[Name] [Note] [QTY]

Securing ring 35X1,5 1

[Name] [Note] [QTY]

grooved ball bearing 35X62X14 1

[Name] [Note]

oil drip tray

see illustration: 301-070

[Name] [Note]

Housing for centre differential

see illustration: 301-070

[Name] [Note] [QTY]

radial shaft seal 40X52X11

G 30 08 4>> 1

[Name] [Note] [QTY]

radial shaft seal 40X52X7 1

G >> 29 08 4

[Name] [Note]

Balance weight

see illustration: 301-070

[Name] [Note]

Oval hexagon socket head bolt

see illustration: 301-070

[Name] [Note] [QTY]

Needle bush 12X18X12 1

[Name] [Note] [QTY]

Flanged shaft rear 1

also use: >>30084

02X 409 400 A 1

Accompanying details: 02X409400A

[Name] [QTY]

Pressure spring 1

[Name] [Note]

O-ring

see illustration: 301-070

[Name] [Note]

Transmission housing cover

see illustration: 301-070

[Name] [Note]

Output shaft

see illustration: 409-030

[Name] [QTY]

Pressure spring 1

[Name] [Note] [QTY]

grooved ball bearing 50X80X16 1

[Name] [Note] [QTY]

Securing ring 62X1,5 1

[Name] [QTY]

spacer sleeve 1
