Differential

Differential

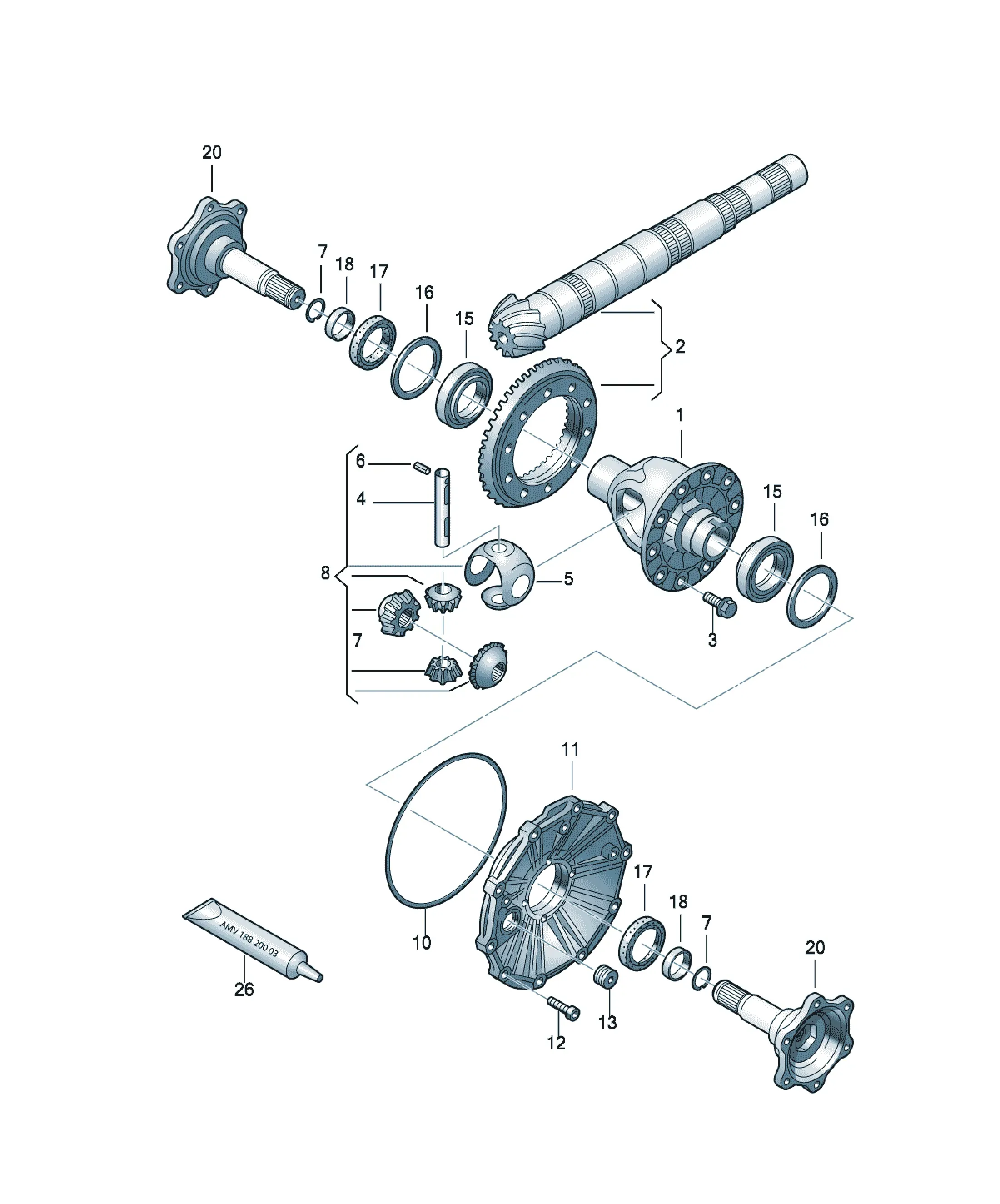

Assembly diagrams

12 diagrams

Parts

44 parts

01X409121A Offers

[Name] [Note] [QTY]
Differential housing ball:90mm 1
N90514401 Offers

[Name] [Note] [QTY]
O-ring 171X3,5 1
01X409131B Offers

[Name] [QTY]
Cover for axle differential 1
N10607002 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M8X38 10
N10037105 Offers

[Name] [Note] [QTY]
sealing plug M22X1,5 1
002517185A Offers

[Name] [Note] [QTY]
Taper roller bearing 46X75X18 1
right
Replacements: 002517185M
01X409123 Offers

[Name] [Note] [QTY]
Taper roller bearing 50X80X20 1
left
012409387EA Offers

[Name] [Note] [QTY]
compensation washer 0,73 X
left
012409387AQ Offers

[Name] [Note] [QTY]
compensation washer 0,65 X
right
012409387AP Offers

[Name] [Note] [QTY]
compensation washer 0,61 X
right
012409387AN Offers

[Name] [Note] [QTY]
compensation washer 0,57 X
right
012409387AM Offers

[Name] [Note] [QTY]
compensation washer 0,53 X
right
012409387DS Offers

[Name] [Note] [QTY]
compensation washer 0,65 X
left
012409387AK Offers

[Name] [Note] [QTY]
compensation washer 0,45 X
right
012409387ED Offers

[Name] [Note] [QTY]
compensation washer 0,85 X
left
012409387DT Offers

[Name] [Note] [QTY]
compensation washer 0,69 X
left
012409387EC Offers

[Name] [Note] [QTY]
compensation washer 0,81 X
left
012409387EB Offers

[Name] [Note] [QTY]
compensation washer 0,77 X
left
012409387DR Offers

[Name] [Note] [QTY]
compensation washer 0,61 X
left
012409387DQ Offers

[Name] [Note] [QTY]
compensation washer 0,57 X
left
012409387DP Offers

[Name] [Note] [QTY]
compensation washer 0,53 X
left
012409387DN Offers

[Name] [Note] [QTY]
compensation washer 0,49 X
left
012409387DM Offers

[Name] [Note] [QTY]
compensation washer 0,45 X
left
012409387BB Offers

[Name] [Note] [QTY]
compensation washer 0,85 X
right
012409387BA Offers

[Name] [Note] [QTY]
compensation washer 0,81 X
right
012409387AT Offers

[Name] [Note] [QTY]
compensation washer 0,77 X
right
012409387AS Offers

[Name] [Note] [QTY]
compensation washer 0,73 X
right
012409387AR Offers

[Name] [Note] [QTY]
compensation washer 0,69 X
right
012409387AL Offers

[Name] [Note] [QTY]
compensation washer 0,49 X
right
016409399B Offers

[Name] [Note] [QTY]
radial shaft seal 45X60X8 2
012409228 Offers

[Name] [Note] [QTY]
Spacer ring 35X38,5X6,6 2
02X409143P Offers

[Name] [Note] [QTY]
pinion gear set 35/8 1
01X409143AH Offers

[Name] [Note] [Model info] [QTY]
pinion gear set 33/8
G 05 12 5>> GYF 1
01X409143N Offers

[Name] [Note] [Model info] [QTY]
pinion gear set 33/8
also use: >>G 23 024
01X 311 325 B
G >> 04 12 5 GYF 1
Accompanying details: 01X311325B
Replacements: 01X409143AH
01X409143AA Offers

[Name] [Note] [Model info] [QTY]
pinion gear set 30/8 GVC,GYX 1
012409343AD Offers

[Name] [Note] [QTY]
Flanged shaft 88MM 2
AMV18820003 Offers

[Name] [Note] [QTY]
Sealing compound paste 100G X
G052128A1 Offers

[Name] [Note] [QTY]
sealing grease for radial shaft oil seal 50G X
Replacements: G 055128A1
WHT000942A Offers

[Name] [Note] [QTY]
Hexagon bolt M10X1X22,8 10
005409177 Offers

[Name] [QTY]
shaft - differential pinion 1
02M409170A Offers

[Name] [QTY]
Thrust washer assembly 1
N10072601 Offers

[Name] [Note] [QTY]
spring pin 5X36 1
012409413 Offers

[Name] [QTY]
snap ring 2
01X498081 Offers

[Name] [QTY]
1 set: differential pinions 1
repair set
02M409159 Large differential bevel gear 2
01X409169 differential pinion 2
02M409170A Thrust washer assembly 1
005409177 shaft - differential pinion 1
012409413 snap ring 1
N 10072601 spring pin 5X36 1
