Differential

Final drive housing

Assembly diagrams

12 diagrams

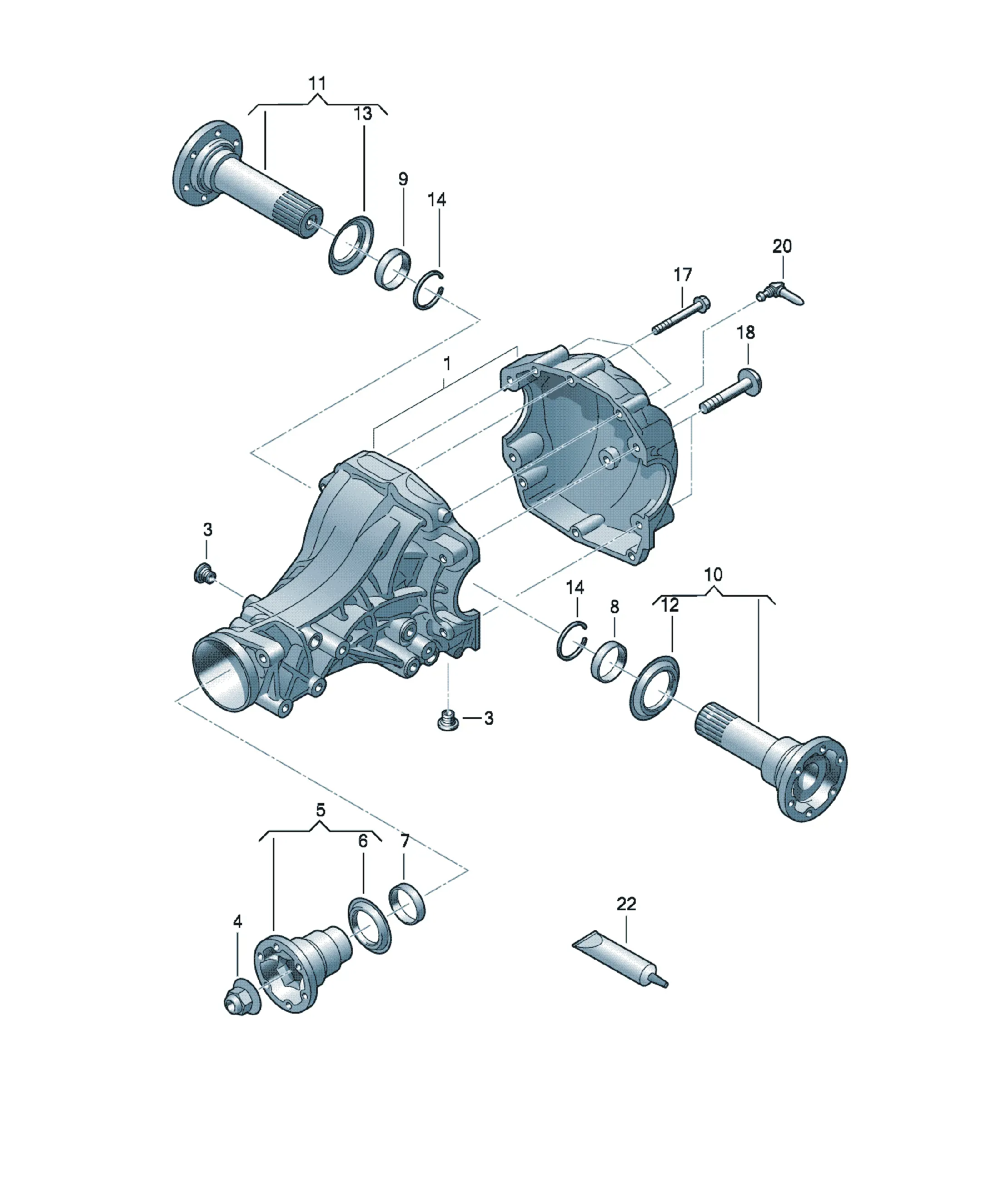

Final drive housing diagram

Parts

17 parts

08V525053 Offers

[Name] [QTY]
rear axle housing 1
08V525289B Offers

[Name] [Note] [QTY]
Flanged shaft 75,5MM 1
08V525289B Offers

[Name] [Note] [QTY]
Flanged shaft 75,5MM 1
08V525171A Offers

[Name] [Note] [QTY]
protective ring left 1
08V525171A Offers

[Name] [Note] [QTY]
protective ring right 1
N0122922 Offers

[Name] [Note] [QTY]
Securing ring 68X2,5 2
WHT001899 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X60 6
WHT001900 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M12X80 4
017525093 Offers

[Name] [QTY]
Breather valve 1
D176501A1 Offers

[Name] [Note] [QTY]
Silicon sealant 50ML 1
0AA409057 Offers

[Name] [Note] [QTY]
sealing plug M16X1,5 2
WHT001896 Offers

[Name] [Note] [QTY]
Collar nut M22X1,5 1
08V525357 Offers

[Name] [QTY]
flange 1
08V525171 Offers

[Name] [QTY]
protective ring 1
08V525583B Offers

[Name] [Note] [QTY]
Shaft oil seal 45X68X10 1
08V525583 Offers

[Name] [Note] [QTY]
Shaft oil seal 45X68X8 1
08V525583A Offers

[Name] [Note] [QTY]
Shaft oil seal 45X61X8 1
