Differential

Rear axle differential housing

Assembly diagrams

12 diagrams

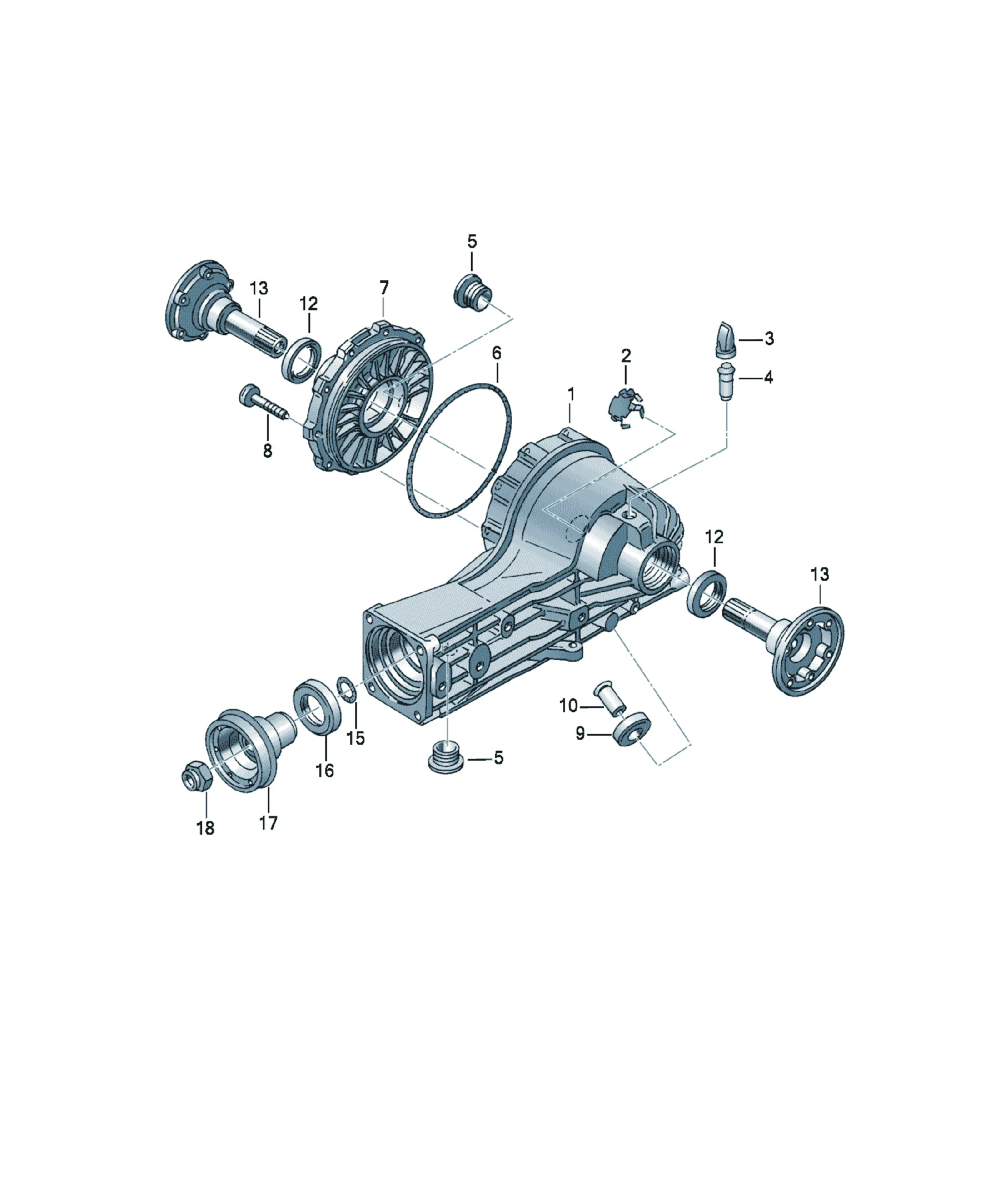

Rear axle differential housing diagram

Parts

22 parts

Shielding ring
01R525375A Offers

[Name] [Note] [QTY]
Shield ring 83X83X10 2
01R525053K Offers

[Name] [Model info] [QTY]
rear axle housing HCC 1
01R525053M Offers

[Name] [Model info] [QTY]
rear axle housing GSZ,FGL 1
01R525053M Offers

[Name] [Model info] [QTY]
rear axle housing FUB,ETS 1
01R525053AB Offers

[Name] [Model info] [QTY]
rear axle housing JVK 1
012301183A Offers

[Name] [QTY]
bush 1
016409399B Offers

[Name] [Note] [QTY]
radial shaft seal 45X60X8 2
also use: 01R 525 375 A X
Accompanying details: 01R525375A
[Name] [Note]
Flanged shaft
see illustration: 525-030
N90068201 Offers

[Name] [Note] [QTY]
seal ring 25X4 1
857525275 Offers

[Name] [QTY]
radial shaft seal 1
Replacements: 857525275A
017525385B Offers

[Name] [QTY]
flange 1
014311379 Offers

[Name] [Note] [QTY]
Hexagon nut M24X1,5 1
01R525045 Offers

[Name] [QTY]
End cap 1
017525093 Offers

[Name] [QTY]
Breather valve 1
01R525095 Offers

[Name] [QTY]
Sleeve 1
N10037106 Offers

[Name] [Note] [QTY]
sealing plug M22X1,5 1
N90514401 Offers

[Name] [Note] [QTY]
O-ring 171X3,5 1
01R525131G Offers

[Name] [Model info] [QTY]
Cover for axle differential HCC 1
01R525131F Offers

[Name] [Model info] [QTY]
Cover for axle differential FUB,ETS, 1
JVK
01R525131F Offers

[Name] [Model info] [QTY]
Cover for axle differential GSZ,FGL 1
N10577001 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M8X36 10
012301143 Offers

[Name] [QTY]
Magnet 1
