Differential

Differential

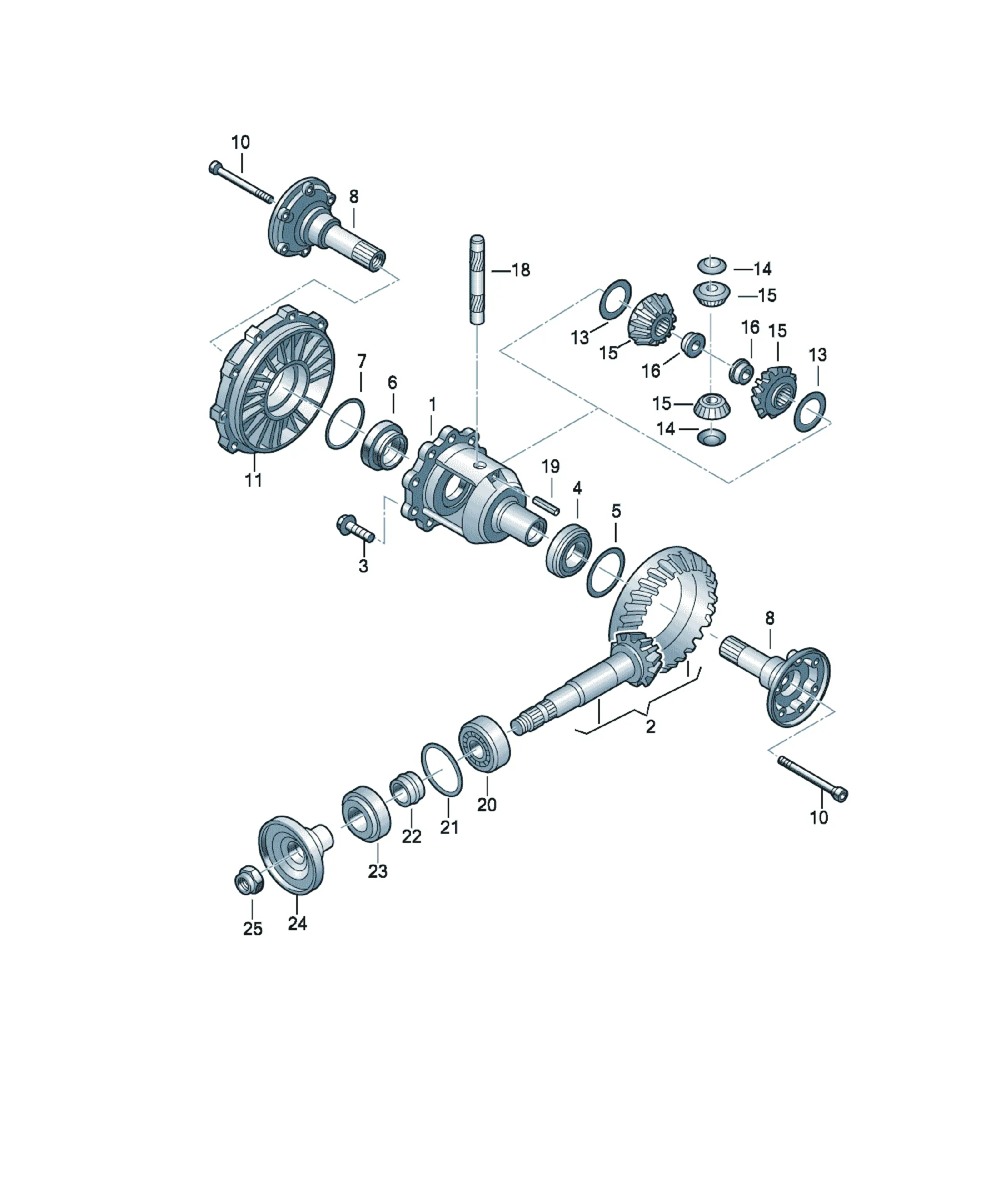

Assembly diagrams

12 diagrams

Parts

65 parts

Shaft oil seal

[Name] [Note]
Shaft oil seal
see illustration: 525-020
01R525121C Offers

[Name] [Model info] [QTY]
Differential housing JVK 1
01R525121C Offers

[Name] [QTY]
Differential housing 1
088409359 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M8X93,6 2
[Name] [Note]
Cover for axle differential
see illustration: 525-020
088409249A Offers

[Name] [Note] [QTY]
thrust washer 0,7 X
088409249D Offers

[Name] [Note] [QTY]
thrust washer 1 X
088409249B Offers

[Name] [Note] [QTY]
thrust washer 0,8 X
088409249 Offers

[Name] [Note] [QTY]
thrust washer 0,6 X
011519215 Offers

[Name] [Note] [QTY]
thrust washer 0,5 X
088409249C Offers

[Name] [Note] [QTY]
thrust washer 0,9 X
091517189 Offers

[Name] [QTY]
thrust washer 2
005498081 Offers

[Name] [QTY]
1 set: differential pinions 1
repair set
005409159A Large differential bevel gear 2
005409169 differential pinion 2
091517189 thrust washer 2
087409373 Offers

[Name] [QTY]
flange shaft nut 2
005409177 Offers

[Name] [QTY]
shaft - differential pinion 1
N10072601 Offers

[Name] [Note] [QTY]
spring pin 5X36 1
01R525143AC Offers

[Name] [Note] [Model info] [QTY]
pinion and crown wheel 35/9 ETS 1
01R525143AM Offers

[Name] [Note] [Model info] [QTY]
pinion and crown wheel 31/10 HCC 1
01R525143AB Offers

[Name] [Note] [Model info] [QTY]
pinion and crown wheel 35/8 FUB 1
01R525143AE Offers

[Name] [Note] [Model info] [QTY]
pinion and crown wheel 32/9 GSZ,FGL 1
183525261 Offers

[Name] [QTY]
Radial taper roller bearing 1
183525231L Offers

[Name] [Note] [QTY]
adjusting washer 1,5 X
183525231M Offers

[Name] [Note] [QTY]
adjusting washer 1,55 X
183525231G Offers

[Name] [Note] [QTY]
adjusting washer 1,3 X
183525231K Offers

[Name] [Note] [QTY]
adjusting washer 1,45 X
183525231J Offers

[Name] [Note] [QTY]
adjusting washer 1,4 X
183525231H Offers

[Name] [Note] [QTY]
adjusting washer 1,35 X
183525231B Offers

[Name] [Note] [QTY]
adjusting washer 1,05 X
183525231F Offers

[Name] [Note] [QTY]
adjusting washer 1,25 X
183525231E Offers

[Name] [Note] [QTY]
adjusting washer 1,2 X
183525231D Offers

[Name] [Note] [QTY]
adjusting washer 1,15 X
183525231C Offers

[Name] [Note] [QTY]
adjusting washer 1,1 X
183525231A Offers

[Name] [Note] [QTY]
adjusting washer 1 X
183525231 Offers

[Name] [Note] [QTY]
adjusting washer 0,95 X
183525267 Offers

[Name] [QTY]
spacer sleeve 1
087409551B Offers

[Name] [QTY]
Taper roller bearing 1
[Name] [Note]
Shaft oil seal
see illustration: 525-020
017525385B Offers

[Name] [QTY]
flange 1
014311379 Offers

[Name] [Note] [QTY]
Hexagon nut M24X1,5 1
N90361401 Offers

[Name] [Note] [QTY]
Hexagon bolt M10X1X22,8 10
096323981 Offers

[Name] [Note] [QTY]
Taper roller bearing 41X68X17,5 1
012409386BB Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,89 1
012409386AL Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,53 1
012409386BA Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,85 1
012409386AR Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,73 1
012409386AS Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,77 1
012409386AM Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,57 1
012409386AN Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,61 1
012409386AT Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,81 1
012409386AP Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,65 1
012409386AK Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,49 1
012409386AQ Offers

[Name] [Note] [QTY]
compensation washer 58X67,9X0,69 1
01E409123 Offers

[Name] [Note] [QTY]
Taper roller bearing 41,2X73,4X19,5 1
012409385AT Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,77 1
012409385BB Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,85 1
012409385AN Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,57 1
012409385BA Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,81 1
012409385AK Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,45 1
012409385AL Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,49 1
012409385AM Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,53 1
012409385AP Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,61 1
012409385AQ Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,65 1
012409385AR Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,69 1
012409385AS Offers

[Name] [Note] [QTY]
compensation washer 73,3X73,3X0,73 1
01R525356E Offers

[Name] [Note] [QTY]
Flanged shaft 75,5MM 2
