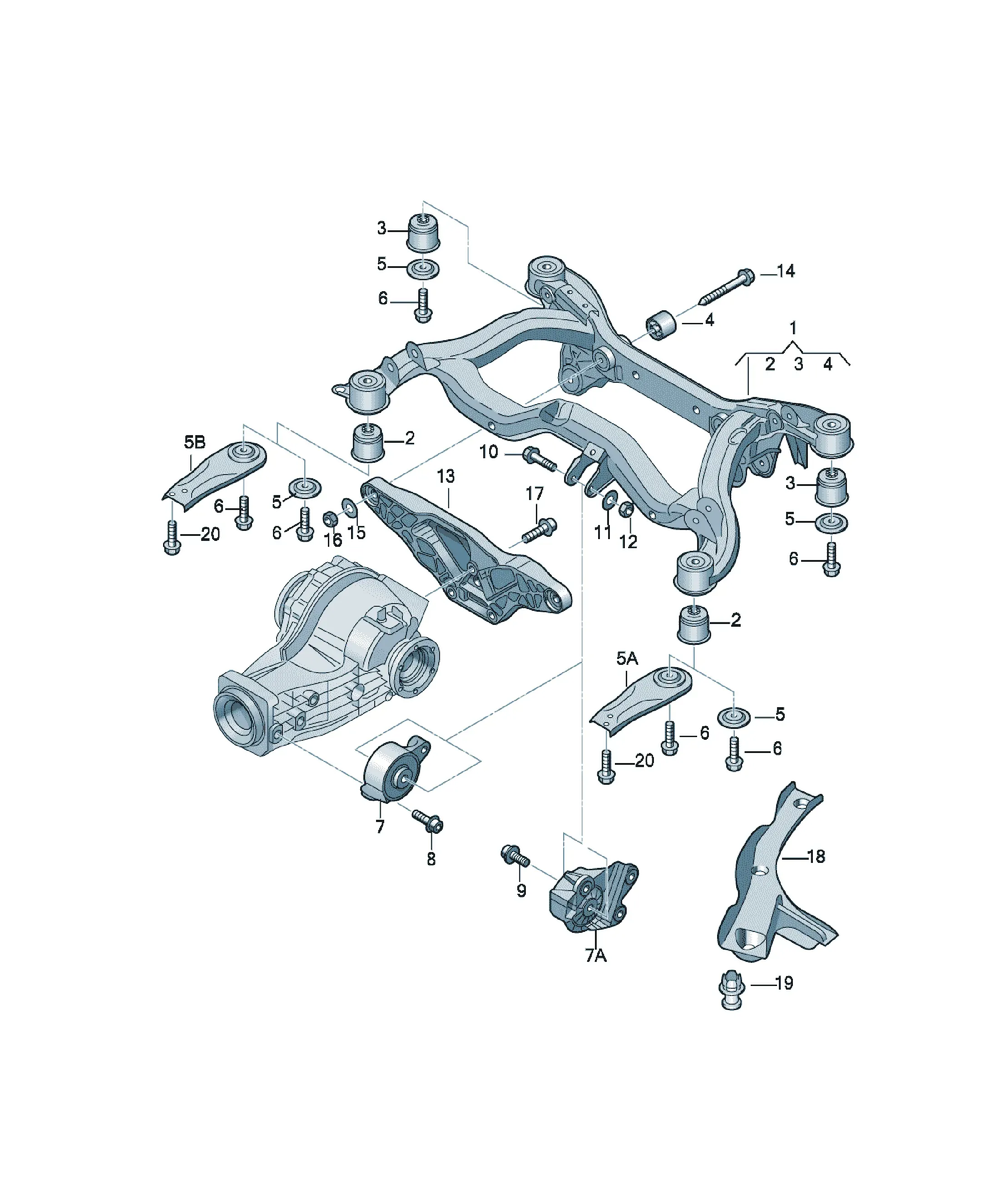

Subframe

[Name] [QTY]

Support frame 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X75 1

[Name] [Note] [QTY]

Washer 10,5X21X2 1

[Name] [Note] [QTY]

Hexagon nut M10 1

[Name] [QTY]

Cross member 1

[Name] [Note] [QTY]

Hex collared bolt M12X1,5X110 2

[Name] [Note] [QTY]

Washer 13

F >> 4F-6-250 000* 2

Replacements: N 01153116

[Name] [Note] [QTY]

Hexagon nut M12X1,50

F >> 4F-6-250 000* 2

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X45

F >> 4F-6-250 000* 3

[Name] [Note] [QTY]

Stone chip guard left 1

[Name] [Note] [QTY]

Stone chip guard right 1

[Name] [QTY]

Spreader rivet 2

Replacements: 4F0501329A

[Name] [Note] [QTY]

hydro-mounting front

F >> 4F-7-113 950* 2

Replacements: 4F0505145B

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X25

F >> 4F-7-098 650* 4

[Name] [Note] [QTY]

hydro-mounting rear 2

[Name] [Note] [QTY]

Bonded rubber bush left rear

F 4F-5-107 001>>* 1

[Name] [Note] [QTY]

Bonded rubber bush right rear

marked yellow

F 4F-5-107 001>>* 1

Replacements: 8E0599257K

[Name] [Note] [QTY]

Washer for subframe bearing 95X18,5

F 4F-5-026 451>>* rear 2

[Name] [Note] [QTY]

Support left front

F 4F-5-026 451>>* 1

[Name] [Note] [QTY]

Support right front

F 4F-5-026 451>>* 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M12X1,5X130X90 4

[Name] [Model info] [QTY]

Gearbox support 1

F 4F-5-026 451>>* PR:G0R,G0L+

6-,8-cyl.

[Name] [Model info] [QTY]

Gearbox support PR:G0R+ 1

10-cylinder

Replacements: 8E0599125L

[Name] [Model info] [QTY]

Gearbox support

F 4F-6-066 301>>* PR:G0L 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X30

F 4F-5-015 901>>* 3
