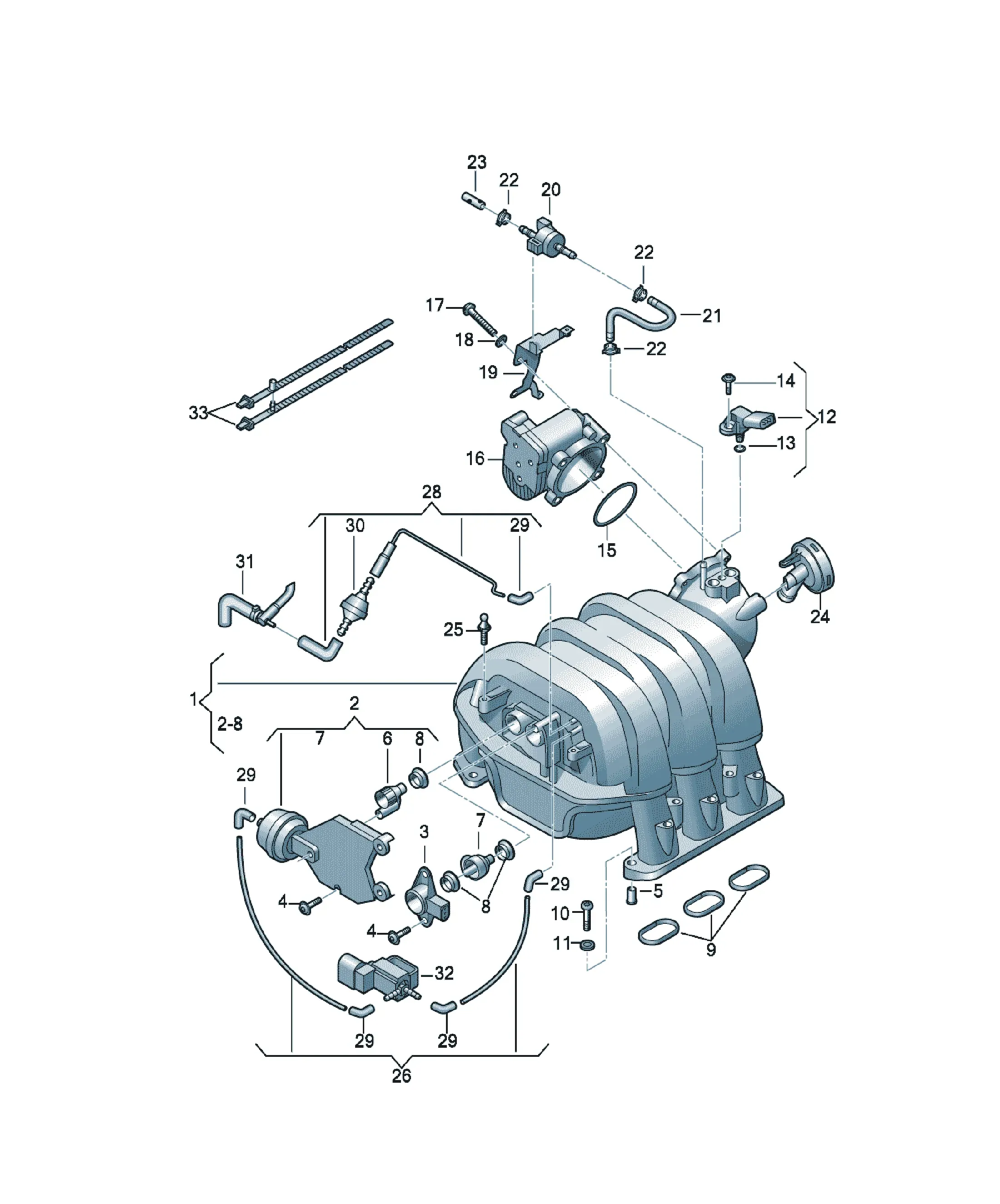

Intake manifold

[Name] [QTY]

Intake manifold 1

Replacements: 06E133201Q

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X35X16 8

[Name] [QTY]

Pressure sensor 1

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

O-ring 7,59X2,62 1

[Name] [Note] [QTY]

self-tapping screw 5X16 2

[Name] [QTY]

Seal 1

[Name] [QTY]

throttle valve adapter 1

mating connector

1J0973713 Flat contact housing 6 pin 1

[Name] [Note] [QTY]

Locating bolt 6X6,55X55 4

[Name] [Note] [QTY]

Washer 8,4X15X1,6 4

[Name] [QTY]

Bracket 1

[Name] [QTY]

Drive unit 1

[Name] [QTY]

Valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

angled hose 1

[Name] [Note] [QTY]

Spring band clamp 14X12 2

[Name] [Note]

see illustration: 201-090

[Name] [Note]

see illustration: 103-085

[Name] [Note]

see illustration: 103-085

[Name] [QTY]

Vacuum pipe 1

[Name] [QTY]

Vacuum hose 1

[Name] [QTY]

angled hose 1

[Name] [QTY]

Potentiometer

F >> 4F-6-250 000 1

Replacements: 03C907386D

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

Non-return valve 2

[Name] [Note]

see illustration: 611-070

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Oval hexagon socket head bolt 4X16 4

[Name]

No replacement part

[Name]

No replacement part

[Name]

No replacement part

[Name]

No replacement part

[Name] [Note] [QTY]

1 set intake manifold seals upper 1

repair set

06E129717B Seal BDW 6
