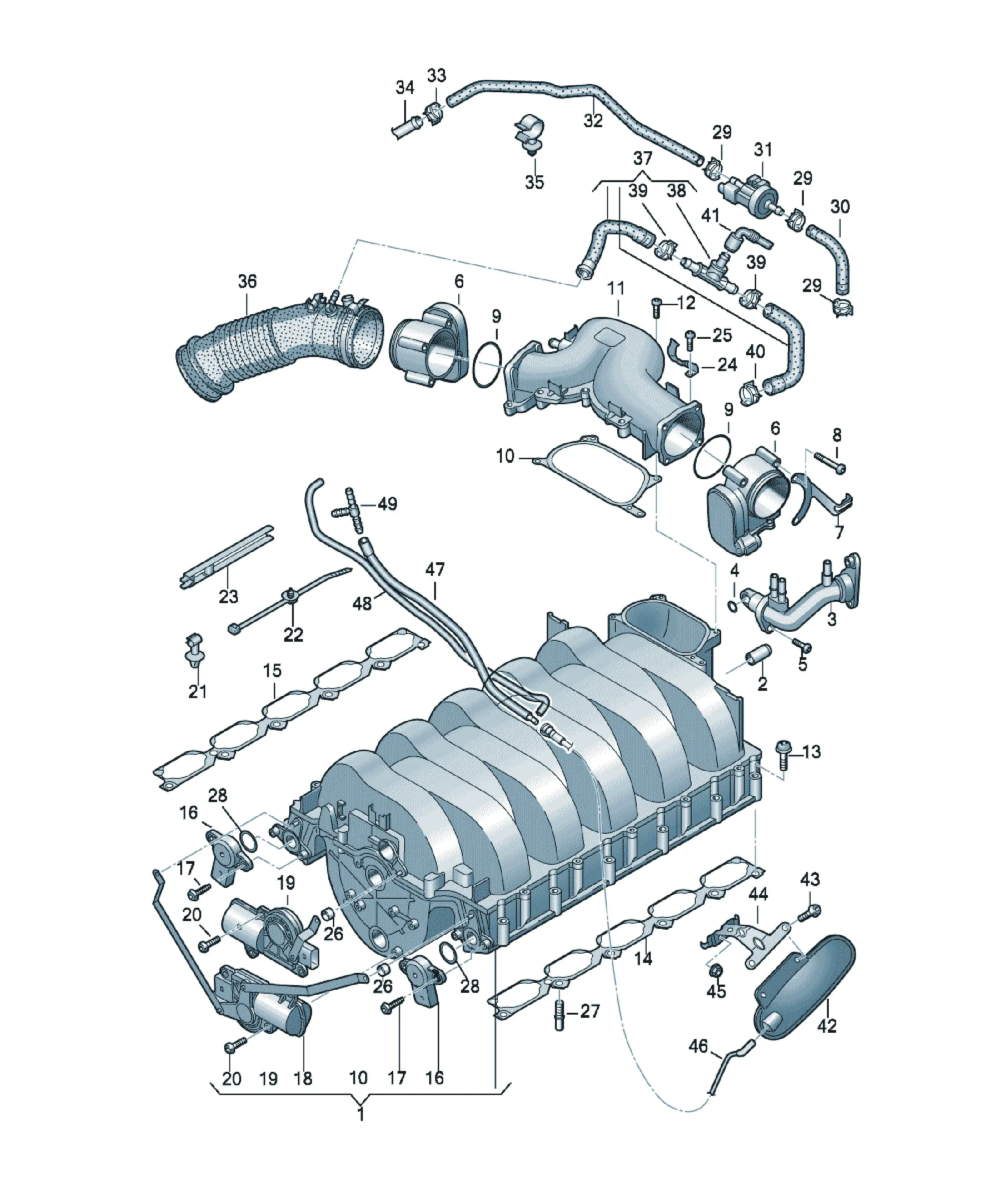

Intake system

[Name] [QTY]

Intake manifold 1

[Name] [QTY]

Seal 2

[Name] [QTY]

Air distribution housing 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X30 8

[Name] [Note] [QTY]

Hex socket head bolt (combi) M6X52 12

[Name] [Note] [QTY]

Seal left 1

[Name] [Note] [QTY]

Seal right 1

[Name] [Note] [QTY]

Potentiometer 2

also use: 036 133 696 C

Accompanying details: 036133696C

Replacements: 03C907386D

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Oval hexagon socket head bolt 4X16 4

[Name] [Note] [QTY]

Drive unit lower front 1

mating connector

3B0973703A Flat contact housing with contact locking mechanism 3 pin 1

brown

also to be used for: blue

[Name] [Note] [QTY]

Drive unit upper front 1

[Name] [Note] [QTY]

Cap closure 7,3X30 1

Replacements: 034133335D

[Name] [Note] [QTY]

Hexagon socket flat head bolt 60X16 4

[Name] [QTY]

Clip 1

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

For hole/material thickness: 6,5MM/0,5-3MM

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X12 1

[Name] [QTY]

securing clip 3

[Name] [Note] [QTY]

Guide pin M6X10 2

[Name] [Note] [QTY]

seal ring 25X4 2

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [QTY]

Adapter 1

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

Valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Vent hose 1

[Name] [Note] [QTY]

Spring band clamp 16X12 1

[Name] [Note]

Fuel line with breather pipe

see illustration: 201-035

[Name] [Note] [QTY]

Bracket 20X12X5 1

[Name] [Note]

intake hose

see illustration: 133-090

[Name] [QTY]

Suction jet pump with hose 1

[Name] [QTY]

suction jet pump 1

[Name] [Note] [QTY]

Spring band clamp 19X12 2

[Name] [Note] [QTY]

O-ring 23X2,6 1

[Name] [Note] [QTY]

Ear crimp hose clamp 19,8X7X0,6 1

[Name] [Note]

Vacuum hose

see illustration: 611-085

[Name] [Note] [Model info]

vacuum system "ROK"

see illustration: 133-093

[Name] [QTY]

vacuum reservoir 1

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X16 2

[Name] [QTY]

Retainer for vacuum container 1

[Name] [Note] [QTY]

Hexagon collar nut M6 1

Replacements: N 01508210

[Name] [Note] [QTY]

Control line left front 1

[Name] [Note] [QTY]

Pipe/hose line front 1

[Name] [Note]

Vacuum hose

see illustration: 131-050

[Name] [Note]

t-piece

see illustration: 131-050

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 1

[Name] [QTY]

throttle valve adapter 2

mating connector

1J0973713 Flat contact housing 6 pin 1

[Name] [Note]

Bracket

see illustration: 103-098

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M6X55 8

[Name] [QTY]

Seal 2
