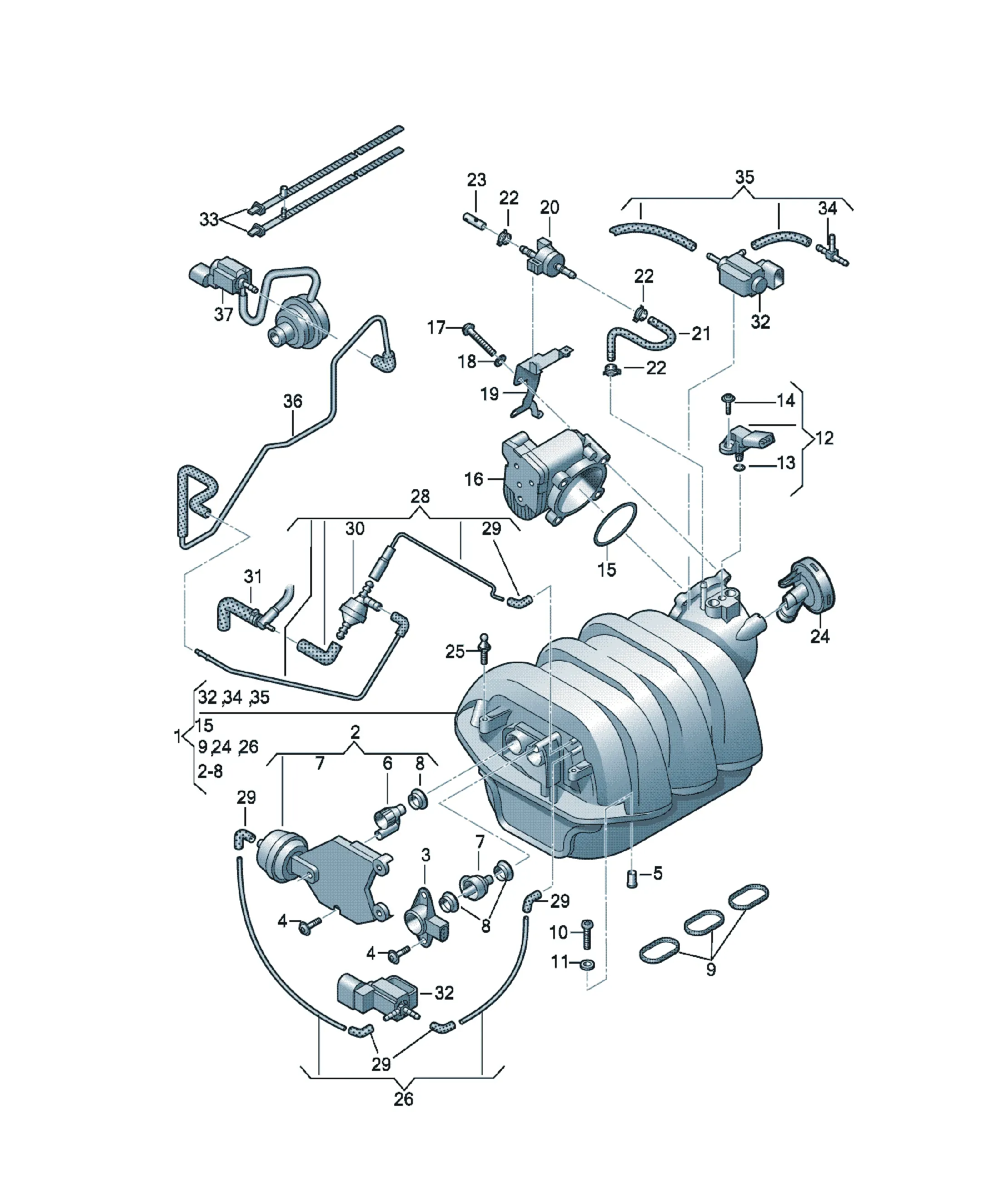

Intake system

[Name] [Note] [Model info] [QTY]

Cable ties with bracket 4,5X200 BDX 1

[Name] [Note] [Model info] [QTY]

Intake manifold 3.2Ltr. AUK,BYU 1

No item: 24

Replacements: 06E133210P

Potential individual parts

06E133619 Drive unit 1

03C907386D Potentiometer 1

06E133588 Damping sleeve 12

06E133778C 1 set of vacuum pipes 1

06E133789 1 set of vacuum hoses 1

06E133073A Seal 1

06E198717 1 set intake manifold seals 1

037906283C Solenoid valve AEH,AKL,APF 1

[Name] [Note] [Model info] [QTY]

Intake manifold 2.8 Ltr. BDX 1

Replacements: 06E133210Q

Items supplied

06E133201AB Intake manifold 1

037906283C Solenoid valve 1

06E133588 Damping sleeve 12

06E129717B Seal 6

06E133073A Seal 1

06E133778 1 set of vacuum pipes 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt 6X45 12

[Name] [QTY]

Pressure sensor 1

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

O-ring 7,59X2,62 1

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 2

Replacements: N 10721401

[Name] [QTY]

Seal 1

[Name] [Note] [Model info] [QTY]

throttle valve adapter 2.8 Ltr. BDX 1

Replacements: 06E133062G

mating connector

4H0973713 Flat contact housing with contact locking mechanism 6 pin 1

black

Throttle valve positioner 000 979 025 0,5 X

Possible single wire: 000 979 025 A 0,5 X

000 979 150 1,0 X

000 979 150 A 1,0 X

4H0973713 Flat contact housing with contact locking mechanism 6 pin 1

black

Possible single wire: X

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire: 000 979 132 1,0 X

000 979 132 A 1,0 X

matching contact housing: 1J0 973 713

1J0973713 Flat contact housing 6 pin 1

Possible single wire: black

000 979 019 0,35 X

000 979 019 A 0,35 X

000 979 131 1,0 X

000 979 131 A 1,0 X

matching contact housing: 3B0 973 813

[Name] [Note] [Model info] [QTY]

throttle valve adapter 3.2Ltr. AUK,BYU 1

mating connector

1J0973713 Flat contact housing 6 pin 1

[Name] [Note] [QTY]

Locating bolt 6X6,55X55 4

[Name] [Note] [QTY]

Washer 8,4X15X1,6 2

[Name] [Note] [Model info] [QTY]

Bracket 3.2Ltr. AUK,BYU 1

[Name] [Note] [Model info] [QTY]

Bracket 2.8 Ltr. BDX 1

[Name] [QTY]

Drive unit 1

[Name] [QTY]

Valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

angled hose 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [Note]

see illustration: 201-090

[Name] [Note] [Model info]

see illustration: 103-085 AUK,BYU

[Name] [Note]

see illustration: 103-085

[Name] [Note] [QTY]

1 set of vacuum pipes front 1

[Name] [Note] [Model info] [QTY]

Vacuum hose 3.2Ltr. AUK,BYU 1

[Name] [Note] [Model info] [QTY]

Vacuum pipe with non-return valve 2.8 Ltr. BDX 1

Replacements: 06E133773AR; 06C145291

[Name] [QTY]

angled hose 1

[Name] [QTY]

Potentiometer 1

Replacements: 03C907386D

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [Model info] [QTY]

Non-return valve 3.2Ltr. AUK,BYU 1

[Name] [Note] [Model info] [QTY]

Non-return valve 2.8 Ltr. BDX 1

[Name] [Note]

see illustration: 611-070

[Name] [Note] [Model info] [QTY]

Solenoid valve 2.8 Ltr. BDX 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [Model info] [QTY]

Solenoid valve 3.2Ltr. AUK,BYU 2

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [Model info] [QTY]

t-piece 4-4-4 AUK,BYU 1

[Name] [Note] [Model info] [QTY]

1 set of vacuum hoses 3.2Ltr. AUK,BYU 1

[Name] [Note] [Model info] [QTY]

Cap closure 3,5MM BDX 1

[Name] [Note]

see illustration: 133-070

[Name] [Note]

see illustration: 133-070

[Name] [Note] [QTY]

Oval hexagon socket head bolt 4X16 4

[Name] [QTY]

Damping sleeve 12

[Name]

No replacement part

[Name]

No replacement part

[Name]

No replacement part

[Name] [Note] [QTY]

1 set intake manifold seals upper 1

repair set

06E129717B Seal BDW 6
