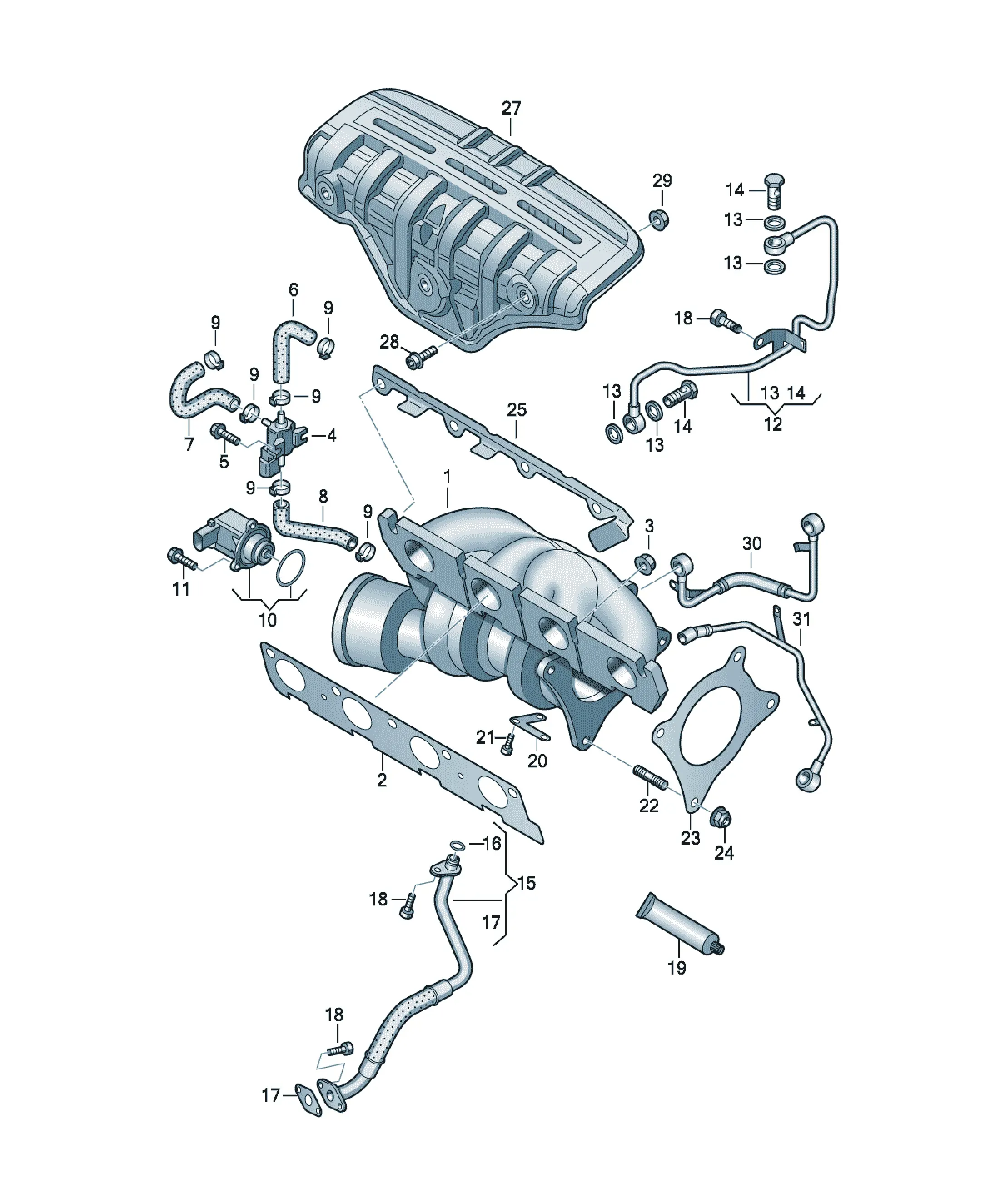

Exhaust manifold with turbocharger

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger 1

If required use also item:

12

Exchange program parts: 03C145703AX

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger 1

Economy

If required use also item: 12

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger 1

If required use also item:

12

Replacements: 03C145703A

Old part

03C145701B Exhaust manifold with turbo- charger 1

Labelled with part number

03C145701K Exhaust manifold with turbo- charger 1

Labelled with part number

03C145701T Exhaust manifold with turbo- charger 1

Labelled with part number

03C145702B Exhaust manifold with turbo- charger 1

Labelled with part number

03C145702P Exhaust manifold with turbo- charger 1

Labelled with part number

03C145703A Exhaust manifold with turbo- charger 1

Labelled with part number

[Name] [Note] [QTY]

cut-off valve N249 1

mating connector

1J0973722A Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Round-head screw with inner hexagon socket head M6X20 2

[Name] [Note] [Model info] [QTY]

oil pipe feed

D - 01.06.2008>> - 31.10.2008 PR:G0L 1

[Name] [Note] [Model info] [QTY]

oil pipe feed

D - 01.06.2008>> - 31.10.2008 PR:G0K 1

[Name] [Note] [QTY]

oil pipe feed

D >> - 31.05.2008 1

[Name] [Note] [QTY]

oil pipe feed

D - 01.11.2008>> 1

[Name] [Note] [QTY]

seal ring 12X17 4

[Name] [Note] [QTY]

Banjo bolt M12 2

Replacements: N 0210719

[Name] [Note] [QTY]

oil pipe return 1

[Name] [Note] [QTY]

seal ring 15X2 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Oval hexagon socket head bolt 3

[Name] [Note] [QTY]

hot-bolt-paste 170G 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Retaining bar 1

[Name] [Note] [QTY]

Hexagon bolt M8X16 1

[Name] [Note] [QTY]

double collared stud M6X16/M6X12 2

[Name] [Note] [QTY]

Threaded pin M8X27,5 4

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M8 4

[Name] [Note] [QTY]

Bracket 1

No replacement part

Item to be removed is: 25

[Name] [QTY]

warm air deflector plate 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X16 3

[Name] [QTY]

Hexagon collar nut 2

[Name] [Note] [QTY]

hexagon nut, self-locking M8 9

also use: WHT 004 984 9

Accompanying details: WHT004984

[Name] [Note] [QTY]

(Ex.gas turboc.> coolant pipe) feed 1

see illustration, item: 121-014,29

[Name] [Note] [QTY]

(Ex.gas turboc.> coolant pipe) return 1

see illustration, item: 121-014,27

[Name] [QTY]

Solenoid valve 1

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

fillister hd. bolt 5X10 1

[Name] [Note] [QTY]

Washer 5,3X10X1 2

[Name] [QTY]

Hose 1

modify in workshop

[Name] [QTY]

Hose 1

[Name] [QTY]

Hose 1

[Name] [Note] [QTY]

Spring band clamp 11,5X8,4 X
