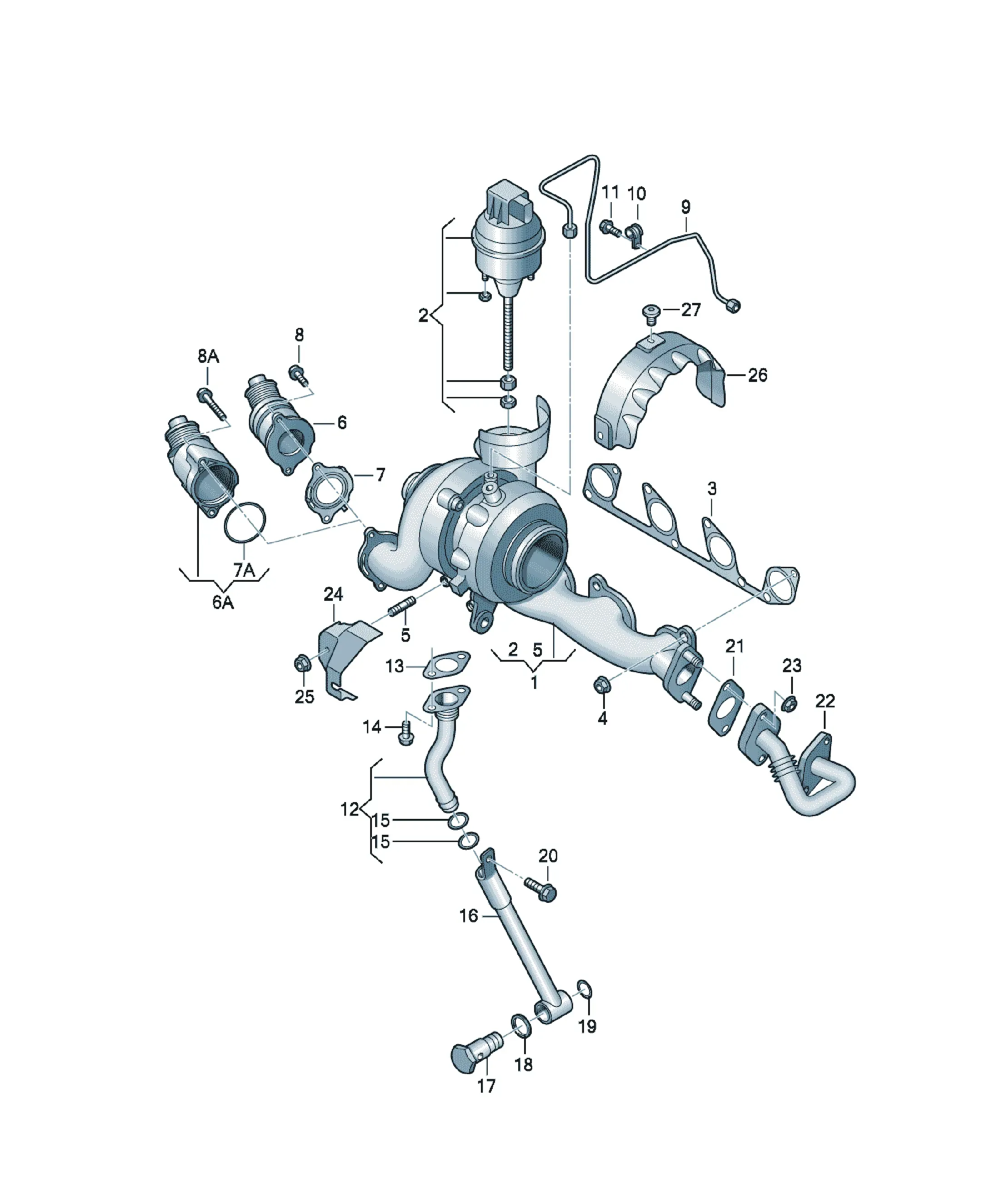

Exhaust manifold with turbocharger

[Name] [Note] [QTY]

seal ring 10X15 1

Included in position: 1

[Name] [Note] [QTY]

threaded union 1

Included in position: 1

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

For vehicles with variable turbine geometry (VTG)

Associated item/items to be used as necessary:

6A,8A

Replacements: 03L253056C

Old part

03L253010D Exhaust manifold with turbo- charger 1

Labelled with part number

03L253016G Exhaust manifold with turbo- charger 1

Labelled with part number

03L253019K Exhaust manifold with turbo- charger 1

Labelled with part number

03L253019M Exhaust manifold with turbo- charger 1

Labelled with part number

03L253056C Exhaust manifold with turbo- charger 1

Labelled with part number

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

For vehicles with variable turbine geometry (VTG)

also use: *>>5N-9-020000

03L 131 111 G 1

N 911 175 02 2

Economy

Accompanying details: 03L131111G; N 91117502

Replacements: 03L253056AX

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

For vehicles with variable turbine geometry (VTG)

also use: *>>5N-9-020000

03L 131 111 G 1

N 911 175 02 2

Accompanying details: 03L131111G; N 91117502

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

For vehicles with variable turbine geometry (VTG)

Associated item/items to be used as necessary:

6A,8A

[Name] [Note] [QTY]

Exhaust manifold with turbo- charger BORGWARNER 1

For vehicles with variable turbine geometry (VTG)

also use: *>>5N-9-020000

03L 131 111 G 1

N 911 175 02 2

Accompanying details: 03L131111G; N 91117502

Replacements: 03L253056A

Old part

03L253010C Exhaust manifold with turbo- charger 1

Labelled with part number

03L253016F Exhaust manifold with turbo- charger 1

Labelled with part number

03L253016J Exhaust manifold with turbo- charger 1

Labelled with part number

03L253019A Exhaust manifold with turbo- charger 1

Labelled with part number

03L253019J Exhaust manifold with turbo- charger 1

Labelled with part number

03L253019T Exhaust manifold with turbo- charger 1

Labelled with part number

03L253056A Exhaust manifold with turbo- charger 1

Labelled with part number

03L253056B Exhaust manifold with turbo- charger 1

Labelled with part number

[Name] [Note] [QTY]

Clamp 1-8X15 1

[Name] [Note] [QTY]

Hex collared bolt M6X12 1

[Name] [QTY]

Oil return line 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 2

[Name] [Note] [QTY]

O-ring 13,5X1,93 2

[Name] [Note] [QTY]

O-ring 13,5X1,93 1

[Name] [QTY]

Support 1

[Name] [Note] [QTY]

Banjo bolt 15X6X47 1

[Name] [Note] [QTY]

O-ring 21X1,5 1

[Name] [Note] [QTY]

seal ring 17X2 1

[Name] [QTY]

repair set 1

pressure unit

repair set

pressure unit 1

Protective cap 1

Hexagon bolt 3

End cap 1

arm 1

Bag (plastic) 1

mating connector

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X35 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Connecting pipe 1

see illustration, item: 131-040,14

[Name] [Note] [QTY]

hexagon nut, self-locking M8 8

[Name] [Note] [QTY]

Threaded pin M8X25 2

[Name] [QTY]

Heat shield 1

[Name] [Note] [QTY]

hexagon nut, self-locking M8 8

[Name] [QTY]

Heat shield 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X8 3

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

hexagon nut, self-locking M8 8

[Name] [Note] [QTY]

Threaded pin M12X1,5AXM8X32 2

[Name] [Note] [QTY]

Damper

F >> 5N-9-020 000* 1

only to be used for: 03L 253 019 T

[Name] [Note] [QTY]

Damper

F >> 5N-9-020 000* 1

only to be used for: 03L 253 019 M

[Name] [Note] [QTY]

Damper

F 5N-9-020 001>>* 1

only to be used for: 03L 253 010 C

03L 253 016 F

03L 253 019 J

03L 253 056 A

[Name] [Note] [QTY]

Damper

F 5N-9-020 001>>* 1

only to be used for: 03L 253 019 K

03L 253 016 G

03L 253 010 D

03L 253 056 C

[Name] [Note] [QTY]

Seal

F >> 5N-9-020 000* 1

only to be used for: 03L 253 019 M

[Name] [QTY]

Seal

F >> 5N-9-020 000* 1

[Name] [Note] [QTY]

O-ring 56X3

F 5N-9-020 001>>* 1

only to be used for: 03L 253 019 K

03L 253 016 G

03L 253 010 D

03L 253 056 C

[Name] [Note] [QTY]

O-ring 56X3

F 5N-9-020 001>>* 1

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X25

F >> 5N-9-020 000* 2

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X25

F >> 5N-9-020 000* 2

only to be used for: 03L 253 019 M

[Name] [Note] [QTY]

Hexagon socket head bolt M6X45

2

only to be used for: 03L 253 019 K

03L 253 016 G

03L 253 010 D

03L 253 056 C

[Name] [Note] [QTY]

Hexagon socket head bolt M6X45

F 5N-9-020 001>>* 2

[Name] [Note] [QTY]

oil pipe feed 1

use if required: 059 145 911 A

N 907 070 01

Accompanying details: 059145911A; N 90707001

[Name] [Note] [QTY]

oil pipe feed 1
