Mounting parts

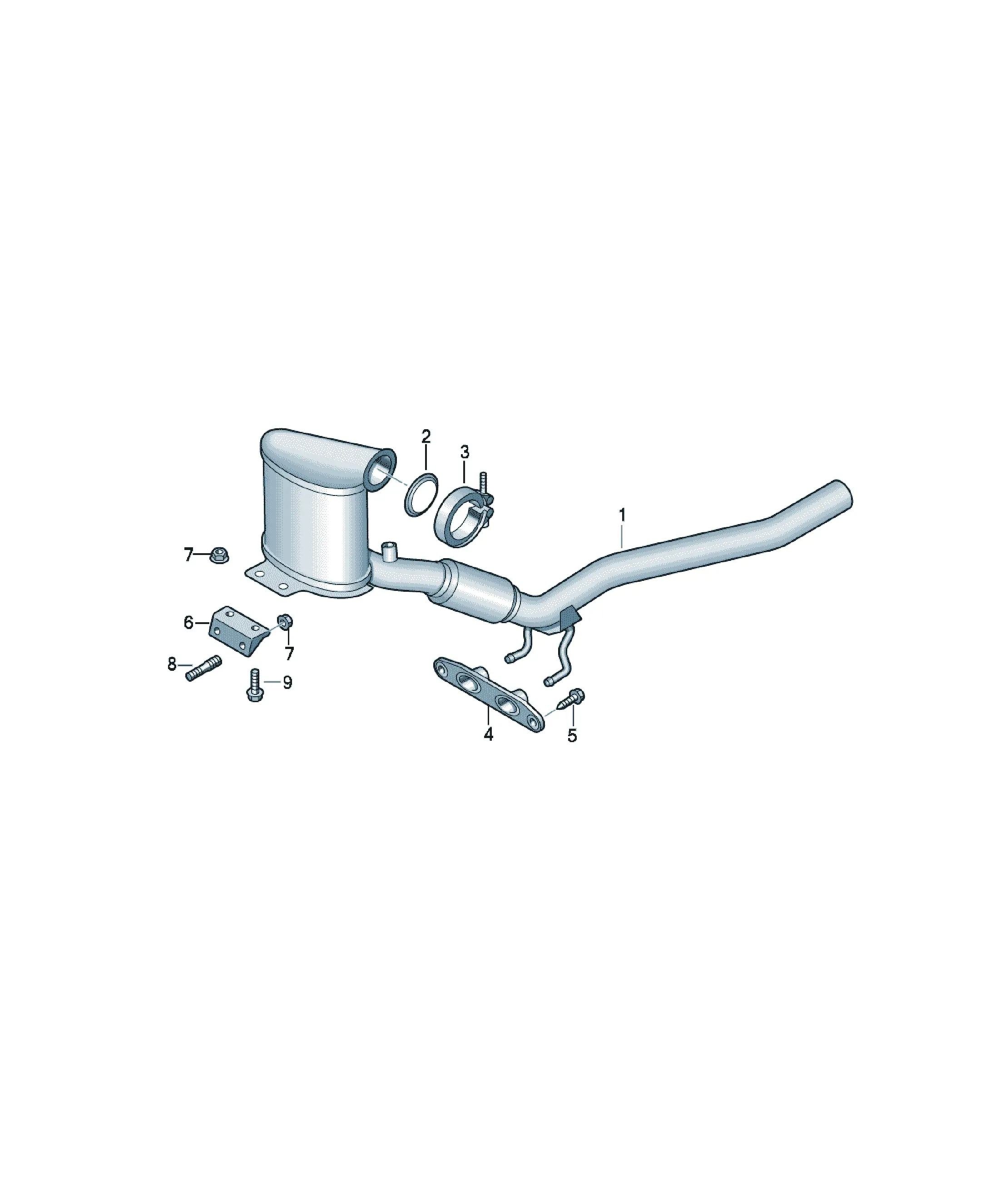

Exhaust pipe with catalyst

Assembly diagrams

10 diagrams

10 parts

5N0254500QX Offers

[Name] [Model info] [QTY]
Exhaust pipe with catalyst CBAB 1
Replacements: 5N0254501CX
5N0254501DX Offers

[Name] [Model info] [QTY]
Exhaust pipe with catalyst CLJA 1
1K0253115T Offers

[Name] [QTY]
Seal 1
1K0253725 Offers

[Name] [QTY]
Clamp 1
1K0253144BC Offers

[Name] [Note] [QTY]
Bracket plastic 1
N10240003 Offers

[Name] [Note] [QTY]
Hex collared bolt M8X32 2
1K0253463AF Offers

[Name] [QTY]
Retainer for exhaust system 1
N01508315 Offers

[Name] [Note] [QTY]
Hexagon collar nut M8 4
N0144833 Offers

[Name] [Note] [QTY]
Threaded pin M10XM8X38 2
N90786502 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X20 2
