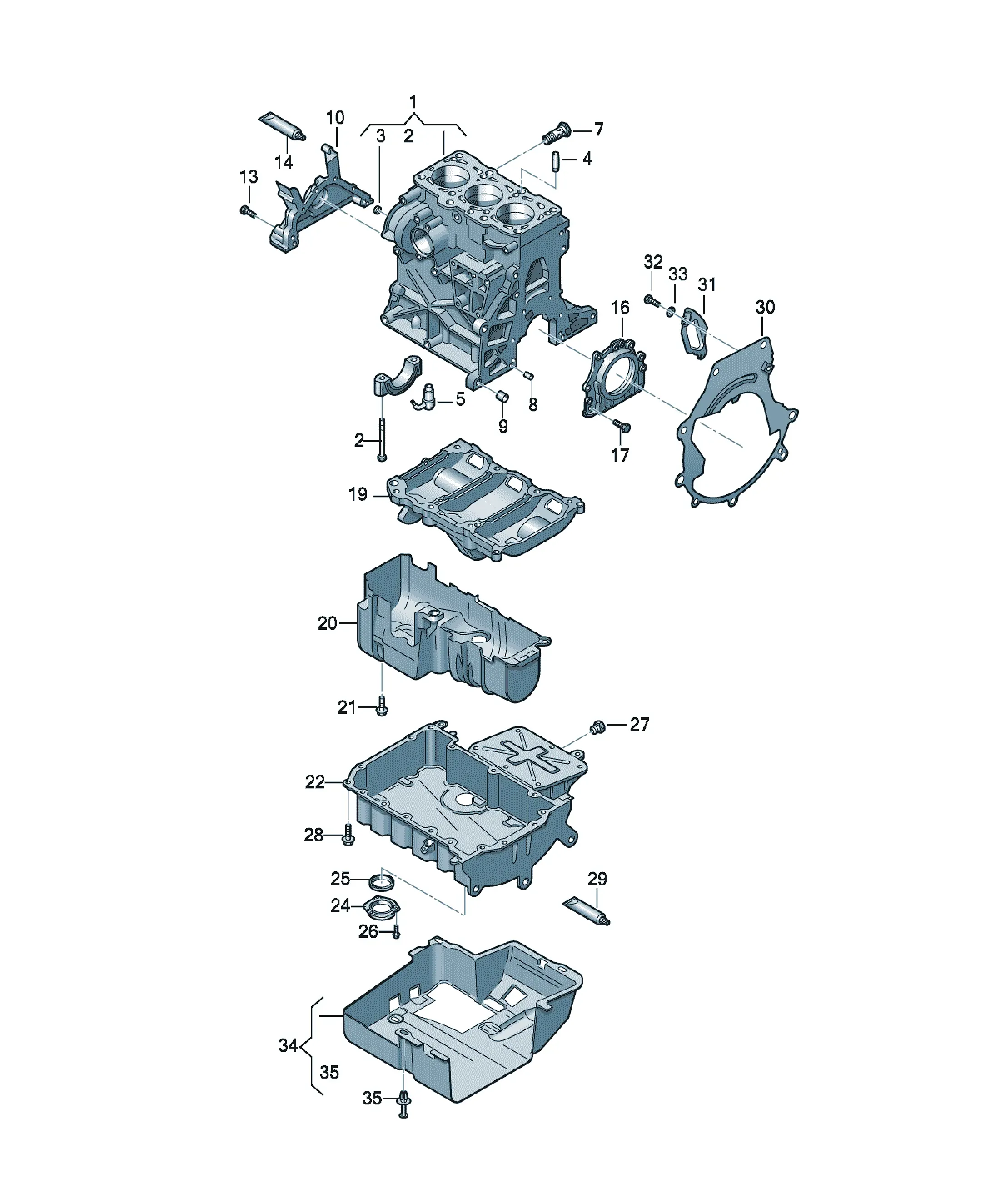

Блок цилиндров

[Name] [Note] [QTY]

Crankcase housing 1

also use: 03L 107 065 J 1

see illustration: 107-000

Accompanying details: 03L107065J

[Name] [Note] [QTY]

flange with sealing ring front 1

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X22 6

[Name] [Note] [QTY]

Silicon sealant 50ML X

Sealing flange front

[Name] [Note] [QTY]

Sealing flange with sealing ring and trigger wheel rear 1

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 6

[Name] [Note] [QTY]

Balancer shaft module with oil pump 1

see illustration, item: 115-023,1

[Name] [Note] [QTY]

Hexagon bolt M10X80 8

[Name] [QTY]

Cover 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M5X15 3

[Name] [Note] [QTY]

Engine oil sump with opening for oil level sensor 1

also use: 03G 103 707 1

For vehicles without extended service interval 038 103 196 1

N 910 652 01 3

Accompanying details: 03G103707

[Name] [QTY]

cover for oil sump 1

For vehicles without extended service interval

[Name] [QTY]

seal ring 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M6X28 3

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22 1

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X28 16

[Name] [Note] [QTY]

Silicon sealant 50ML X

oil sump

[Name] [Note] [QTY]

End cap 14 3

[Name] [QTY]

Cover plate 1

[Name] [QTY]

Cover plate 1

[Name] [Note] [QTY]

Hexagon bolt M6X8 1

[Name] [Note] [QTY]

Washer 6,4X12,5X1,6 1

[Name] [QTY]

cover for oil sump 1

[Name] [QTY]

Spreader rivet 3

[Name] [Note] [QTY]

dowel sleeve 14,15X21 2

[Name] [Note] [QTY]

oil spray jet M10 3

[Name] [Note] [QTY]

threaded union with seal 1

see illustration, item: 145-063,31

[Name] [Note] [QTY]

Cylinder pin 8X14 2

[Name] [Note] [QTY]

dowel sleeve 16X13,5 2
