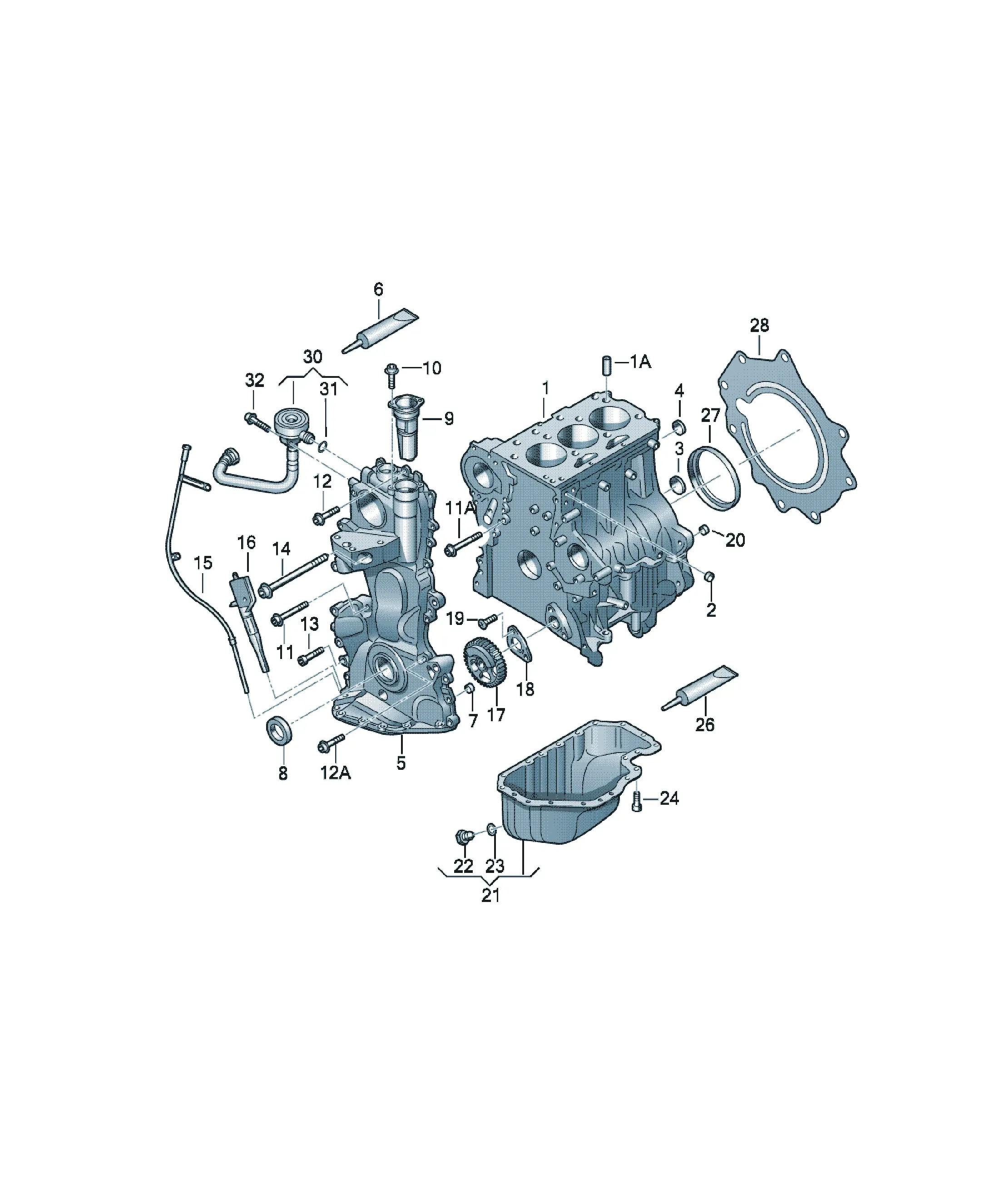

Блок цилиндров

[Name]

cylinder block with pistons

No replacement part

see workshop manual

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 2

[Name] [Note] [QTY]

oval head countersunk bolt with multi-point socket head M6X40 6

[Name]

Not for this model

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X22 11

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M8X55 2

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X120X45 3

[Name] [Note] [QTY]

tube for oil dipstick 1

see illustration: 115-005

[Name] [Note] [QTY]

gear 1

see illustration: 105-003

[Name] [QTY]

thrust washer 1

[Name] [Note] [QTY]

Hex socket countersunk bolt M6X18 2

[Name] [Note] [QTY]

spring pin 13,5X30 1

[Name] [Note] [QTY]

End cap 12 1

[Name] [Note] [QTY]

dowel sleeve 16X13,5 2

[Name] [QTY]

Engine oil sump 1

[Name] [Note] [QTY]

oil drain plug M14X1,5X16 1

also use: N 013 815 8 1

Accompanying details: N 0138158

[Name] [Note] [QTY]

seal ring 14X20 1

see drawing: 22

[Name] [Note] [QTY]

Socket head bolt M6X16 20

[Name] [Note] [QTY]

Silicone sealant 50ml X

[Name] [Note] [QTY]

Shaft oil seal 85X105X11 1

[Name] [QTY]

Cover plate 1

[Name] [Note] [QTY]

End cap 36,6 1

[Name] [Note] [QTY]

Valve PCV 1

[Name] [Note] [QTY]

O-ring 18X2,5 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X32 2

[Name] [Note] [QTY]

End cap 20 4

[Name] [Note] [QTY]

timing case 1

also use: 03E 109 507 AE 1

For vehicles without extended service interval

Accompanying details: 03E109507AE

[Name] [Note] [QTY]

timing case 1

also use: 03E 109 507 AE 1

For vehicles with extended service interval

Accompanying details: 03E109507AE

[Name] [Note] [QTY]

Silicone sealant 93G X

[Name] [Note] [QTY]

Cylinder pin 8X14 X

[Name] [Note] [QTY]

Shaft oil seal 35X48X10 1

[Name] [QTY]

oil separator 1
