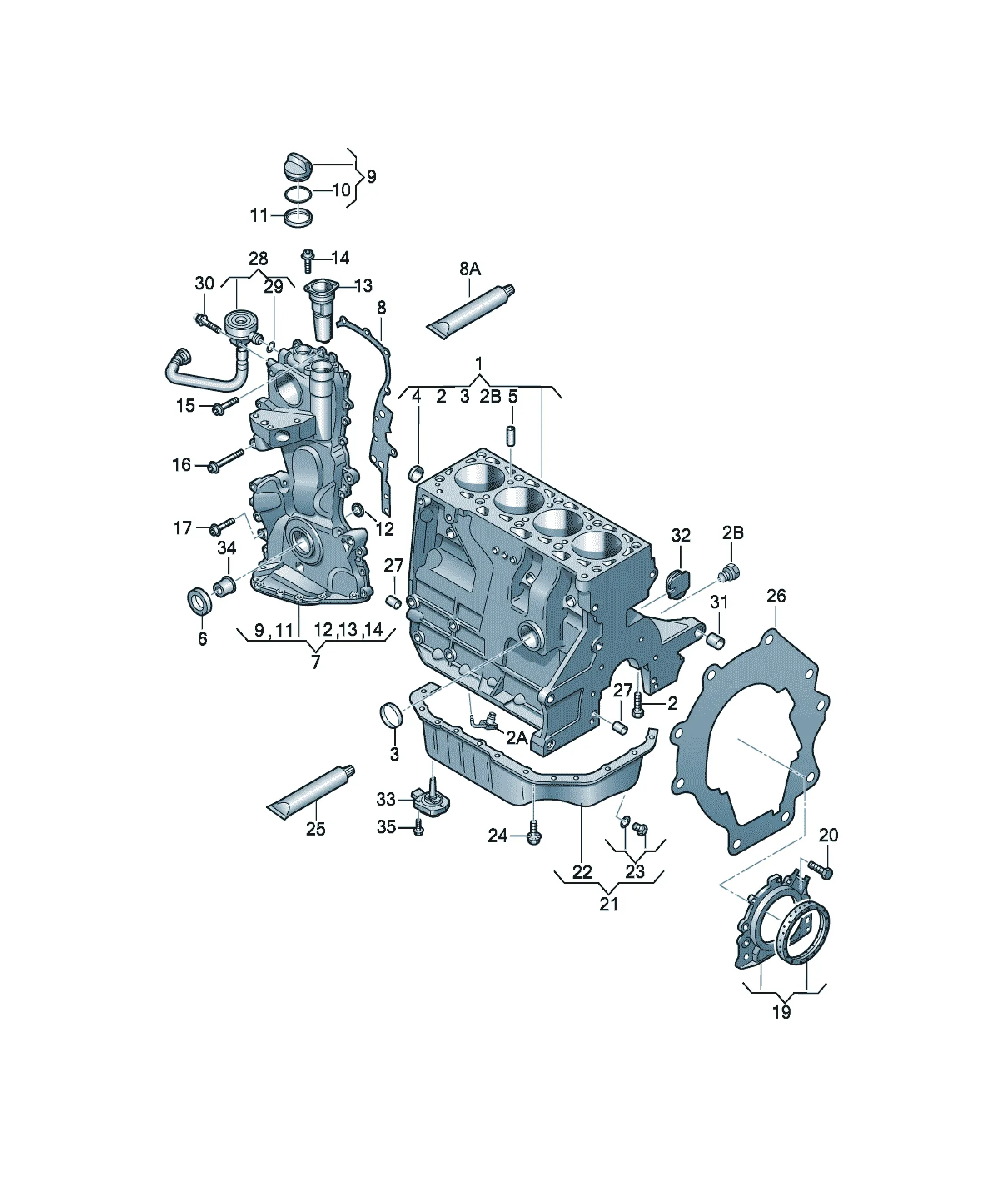

Блок цилиндров

[Name] [Note] [QTY]

Locking fluid 18ML 1

adhesives and sealing compound

[Name] [Note] [Model info] [QTY]

Crankcase housing fr.wheel drv 1

Use with: pistons

4

see illustration: 107-000

[Name] [QTY]

Seal 1

[Name] [QTY]

seal ring 1

[Name] [QTY]

Seal 1

[Name]

Not for this model

[Name]

Not for this model

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X22 10

[Name] [Note] [QTY]

Hex collared bolt M10X85 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X45 8

[Name] [Note] [Model info] [QTY]

Sealing flange with sealing ring and trigger wheel rear fr.wheel drv 1

use only in conjunction with: 03C 906 433 E

also use: N 90842402

N 90501402

N 10248003

[Name] [Note] [QTY]

Hex collared bolt M10X65 10

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X20 6

[Name]

Not for this model

[Name] [Note] [QTY]

Engine oil sump with opening for oil level sensor 1

also use: 03G 103 707 1

038 103 196 1

N 910 652 01 3

Accompanying details: 03G103707; 038103196; N 91065201

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22-TC- 1

S20

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X22 10

[Name] [Note] [QTY]

Silicone sealant 80ml X

oil sump

[Name] [QTY]

Spacer plate 1

[Name] [Note] [QTY]

Cylinder pin 8X14 4

[Name] [Note] [QTY]

Vent hose 1

see illustration: 103-078

[Name] [Note] [QTY]

Vent hose 1

see illustration: 103-078

[Name] [Note] [QTY]

oil spray jet M10 4

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22 1

[Name]

Not for this model

[Name] [Note] [QTY]

Vent hose 1

see illustration: 103-078

[Name] [Note] [QTY]

dowel sleeve 16X13,5 2

[Name] [QTY]

Bungs 1

[Name] [Note]

oil level sensor

see illustration: 919-040

[Name] [Note]

bush

see illustration: 105-010

[Name] [Note]

oil level sensor

see illustration: 919-040

[Name] [Note] [QTY]

End cap 14 1

[Name] [Note] [QTY]

dowel sleeve 13,2X13 2

[Name] [Note] [QTY]

Shaft oil seal 35X48X10 1

[Name] [QTY]

timing case 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Silicon sealant 50ML X

only for: POS. 8

see workshop manual

[Name] [Note] [QTY]

End cap 1

Label CASTROL
