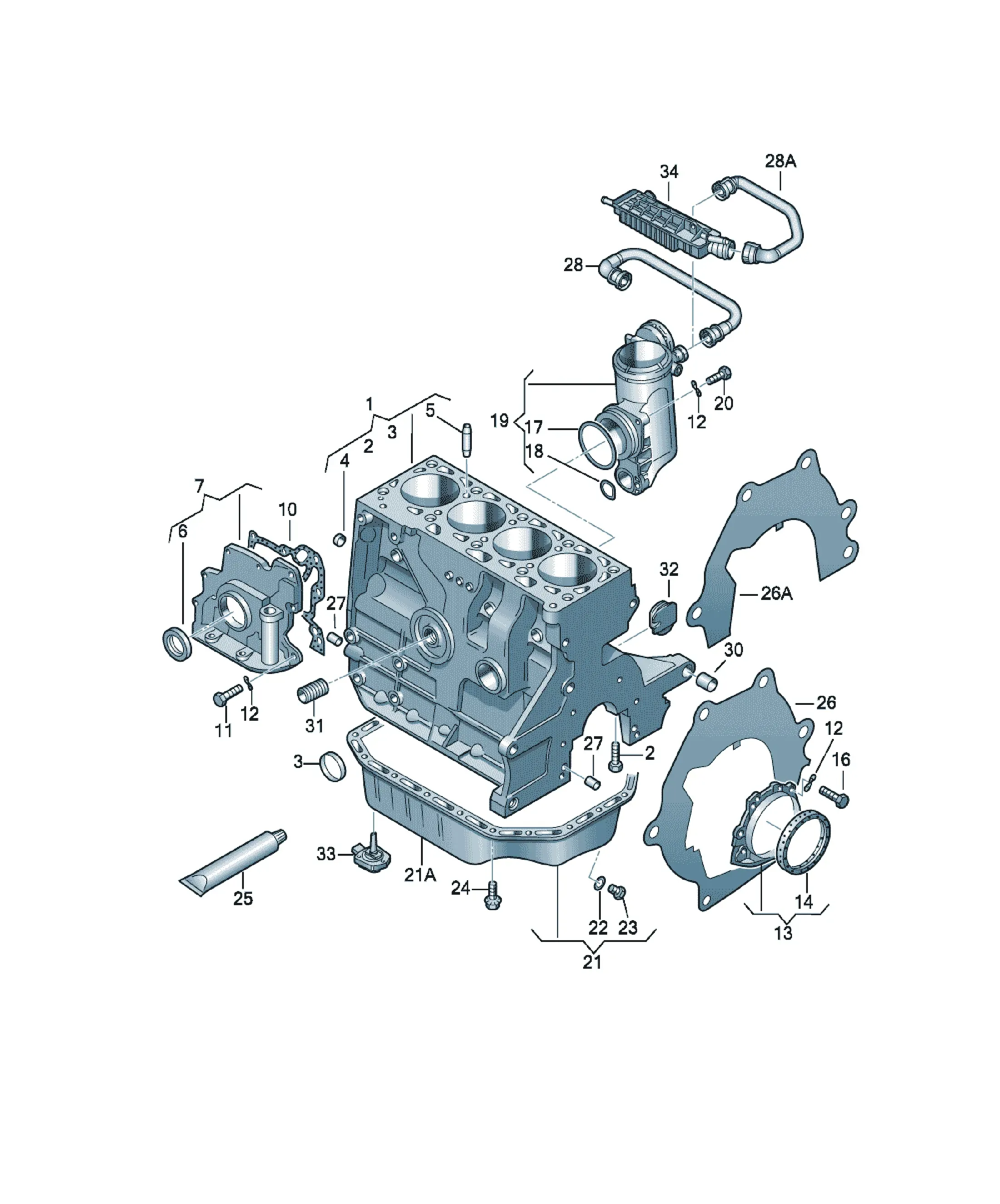

Блок цилиндров

[Name] [QTY]

cylinder block with pistons, crankshaft and bearings 1

Items supplied

030103011DF Crankcase housing 1

036105561C crankshaft bearing shell upper 5

Bearing 1-5

036105561C 001 red

optional:

036105561C 002 yellow

optional:

036105561C 003 blue

036105591C crankshaft bearing shell lower 5

Bearing 1-5

036105591C 001 red

optional:

036105591C 002 yellow

optional:

036105591C 003 blue

036105101AL Crankshaft 1

06A105637A thrust washer upper 2

036107065DP piston complete 76,5 4

optional:

036107065DQ piston complete 76,5 4

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon bolt X

see illustration: 115-015

[Name] [Note] [QTY]

Spring washer 6 X

[Name] [Note] [QTY]

Sealing flange with sealing ring and trigger wheel rear 1

also use: N 90842402

N 90501402

N 10248003

[Name]

Not for this model

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X22 6

[Name] [Note] [QTY]

seal ring 60X4 1

[Name] [QTY]

seal ring 1

[Name] [QTY]

oil separator 1

[Name] [QTY]

Hexagon bolt 10

Not for this model

see workshop manual

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X32 3

[Name] [QTY]

Engine oil sump 1

[Name] [QTY]

Engine oil sump with opening for oil level sensor 1

[Name] [Note]

Discont. / replace: N 908 132 01

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22-TC- 1

S20

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 20

[Name] [Note] [QTY]

Silicone sealant 93G X

oil sump

[Name] [QTY]

Spacer plate 1

Not for this model

[Name] [QTY]

Spacer plate 1

[Name] [Note] [QTY]

Cylinder pin 8X14 4

[Name] [QTY]

Vent hose 1

Not for this model

[Name] [QTY]

Vent hose 1

[Name] [Note] [QTY]

End cap 42,1 1

[Name] [Note] [QTY]

End cap 36,6 1

[Name] [Note] [QTY]

End cap 22,0 1

[Name] [Note] [QTY]

dowel sleeve 16X13,5 1

[Name] [Note] [QTY]

threaded union

see illustration: 115-015 1

[Name] [QTY]

Bungs 1

[Name] [Note] [QTY]

heater pipe 1

see illustration: 133-005

[Name] [Note] [QTY]

End cap 22 1

[Name] [Note] [QTY]

End cap 25 X

[Name] [Note] [QTY]

Cylinder pin 6M6X20 2

[Name] [Note] [QTY]

Shaft oil seal 42X6 1

[Name] [Note] [QTY]

oil pump 1

see illustration: 115-015
