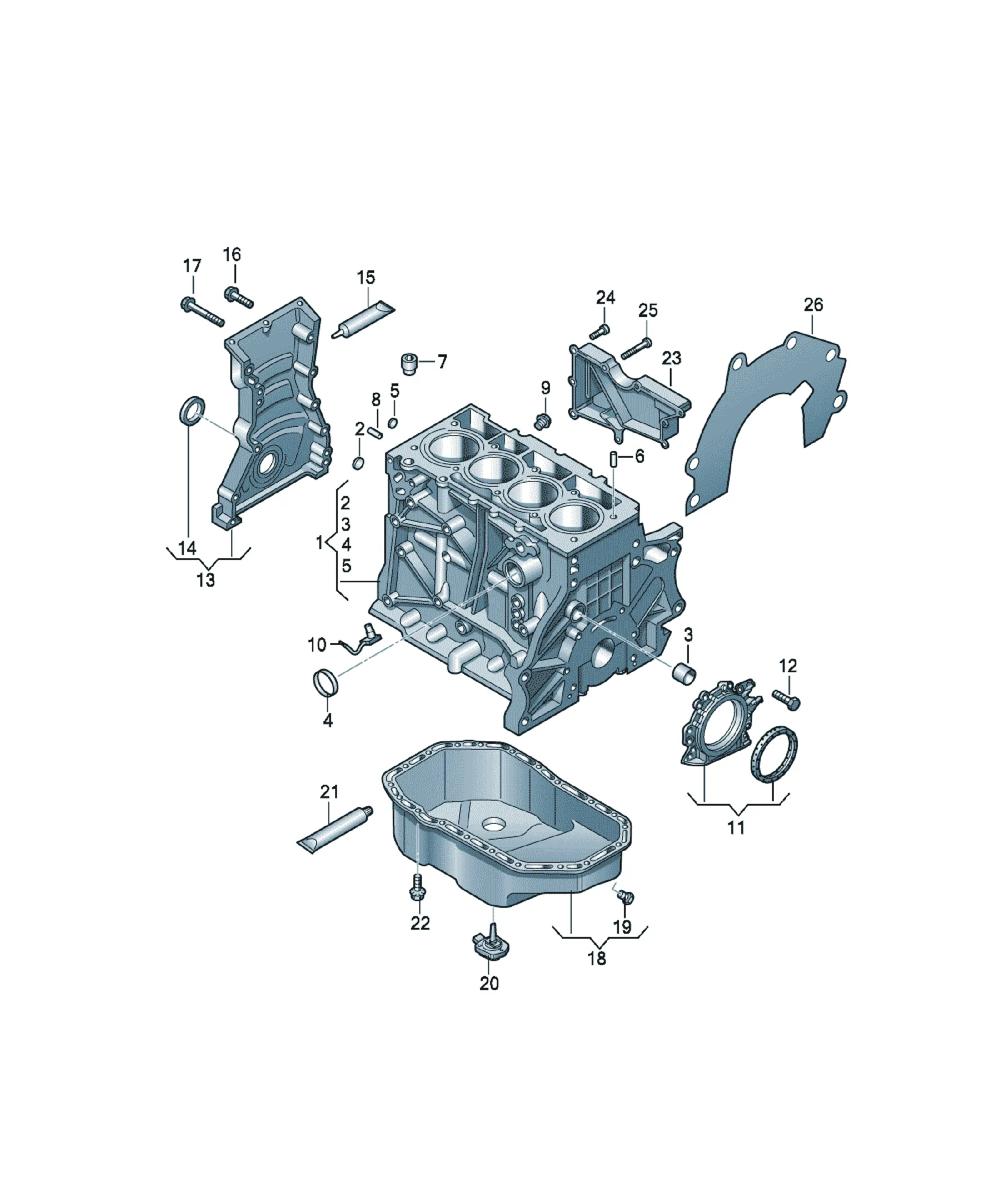

Блок цилиндров

[Name] [Note] [QTY]

dowel sleeve 16X13,5 1

[Name] [QTY]

cylinder block with pistons, crankshaft and bearings 1

Items supplied

03F103011L Crankcase housing 1

03C103157A oil spray jet 4

03F105561A crankshaft bearing shell upper 5

Bearing 1-5

03F105561A ROT red

optional:

03F105561A GLB yellow

optional:

03F105561A BLA blue

03F105591A crankshaft bearing shell lower 5

Bearing 1-5

03F105591A ROT red

optional:

03F105591A GLB yellow

optional:

03F105591A BLA blue

03F105021N Crankshaft 1

WHT003830 thrust washer 48X65X2.425 2

03F107065A piston complete 71 4

[Name] [Note] [QTY]

oil spray jet M10 4

[Name] [Note] [QTY]

Sealing flange with sealing ring and trigger wheel rear 1

also use: N 90842402

N 90501402

N 10248003

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X22 6

[Name] [QTY]

timing case 1

[Name] [Note] [QTY]

shaft oil seal (shaft rotation: to right) 47X10X32 1

[Name] [Note] [QTY]

Silicon sealant 50ML X

adhesives and sealing compound

[Name] [Note] [QTY]

12 point socket (combi.) M6X20 12

[Name] [Note] [QTY]

12 point socket (combi.) M6X40 1

[Name] [QTY]

Engine oil sump 1

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22 1

[Name] [Note] [QTY]

End cap 22 1

[Name] [Note]

oil level sensor

see illustration, item: 919-040,6

[Name] [Note] [QTY]

Silicone sealant 80ml X

adhesives and sealing compound

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 20

[Name] [QTY]

oil separator 1

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming 6X16 8

[Name] [Note] [QTY]

round hd. screw M6X50 2

[Name] [QTY]

Spacer plate 1

[Name] [Note] [QTY]

End cap 25 X

[Name] [Note] [QTY]

End cap 42,1 1

[Name] [Note] [QTY]

End cap 15 1

[Name] [Note] [QTY]

dowel sleeve 13,2X13 1

[Name] [QTY]

Non-return valve 1

[Name] [Note] [QTY]

Cylinder pin 8X14 4

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22 1
