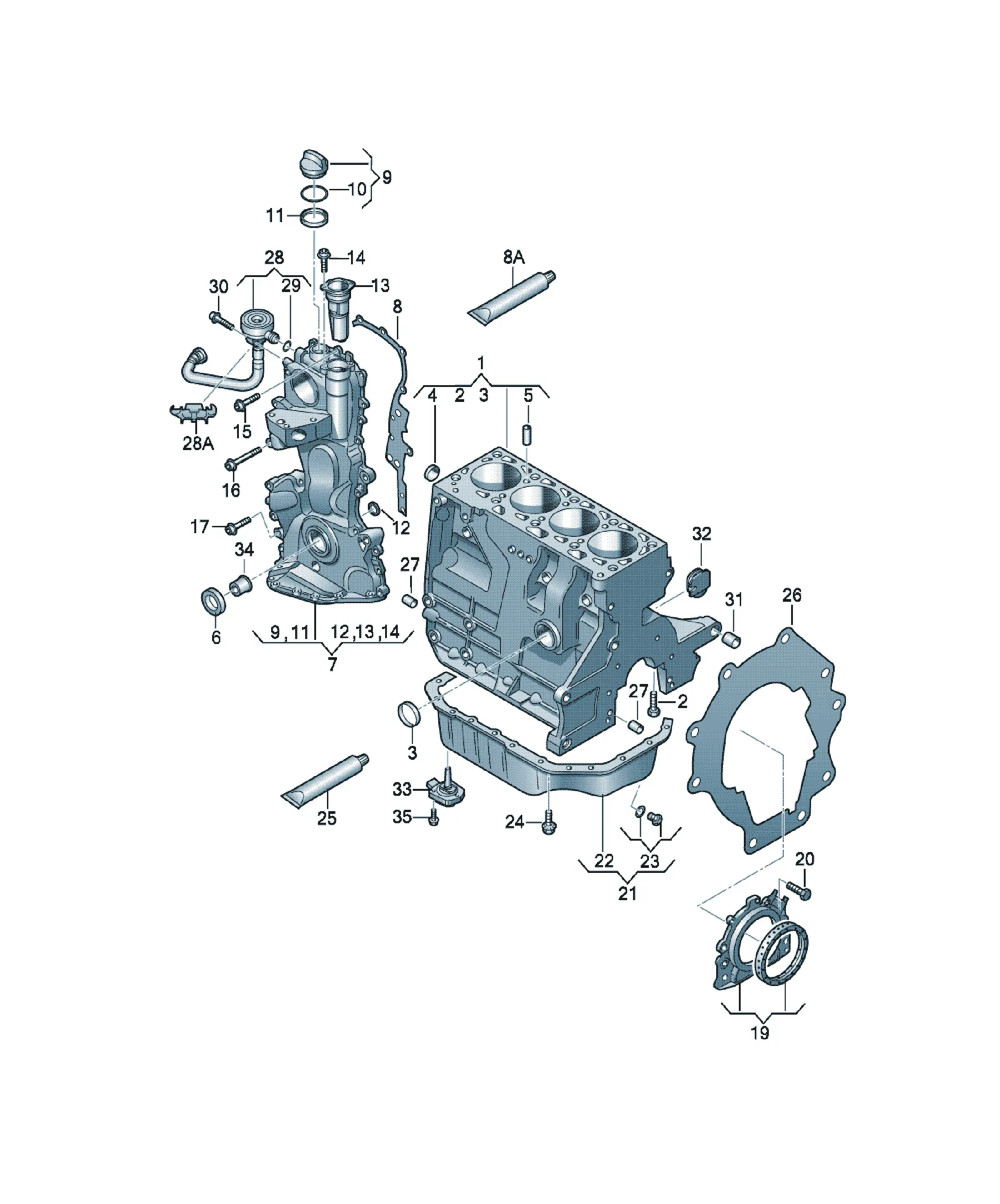

Блок цилиндров

[Name] [Note] [QTY]

Locking fluid 18ML X

[Name] [Note] [Model info] [QTY]

cylinder block with pistons, crankshaft and bearings BTS 1

also use: N 908 539 02 3

Items supplied

03C103011BS Crankcase housing 1

036105561C crankshaft bearing shell upper 5

Bearing 1-5

036105561C 001 red

optional:

036105561C GLB yellow

optional:

036105561C 003 blue

036105591C crankshaft bearing shell lower 5

Bearing 1-5

036105591C 001 red

optional:

036105591C GLB yellow

optional:

036105591C 003 blue

03C105101AL Crankshaft 1

06A105637A thrust washer 2

036107065ET piston complete 4

036107065ET001 Dimension group 1

[Name] [Model info] [QTY]

cylinder block with pistons, crankshaft and bearings CNKA 1

Items supplied

03C103011BS Crankcase housing 1

036105561C crankshaft bearing shell upper 5

Bearing 1-5

036105561C 001 red

optional:

036105561C GLB yellow

optional:

036105561C 003 blue

036105591C crankshaft bearing shell lower 5

Bearing 1-5

036105591C 001 red

optional:

036105591C GLB yellow

optional:

036105591C 003 blue

03C105101AL Crankshaft 1

06A105637A thrust washer 2

036107065EP piston complete 4

036107065EP001 Dimension group 1 76,46

[Name] [Model info] [QTY]

Seal CNKA 1

[Name] [Model info] [QTY]

seal ring CNKA 1

[Name] [QTY]

Seal 1

[Name] [Model info] [QTY]

oil separator CNKA 1

[Name] [Model info] [QTY]

oil separator BTS 1

[Name] [Note] [Model info] [QTY]

Hex collared bolt M6X16 CNKA 2

[Name] [Note] [Model info] [QTY]

Hexagon bolt M6X15 BTS 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X22 10

[Name] [Note] [Model info] [QTY]

Hex collared bolt M10X85 CNKA 3

[Name] [Note] [Model info] [QTY]

Hex collared bolt M10X85 BTS 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X45 8

[Name] [Note] [Model info] [QTY]

Sealing flange with sealing ring and trigger wheel rear automatic 1

BTS

also use: N 908 424 02

N 905 014 02

N 102 480 03

Accompanying details: N 90842402; N 90501402; N 10248003

[Name] [Note] [Model info] [QTY]

Sealing flange with sealing ring and trigger wheel rear manual gearbox 1

BTS

[Name] [Note] [Model info] [QTY]

Sealing flange with sealing ring and trigger wheel rear CNKA 1

also use: N 908 424 02

N 905 014 02

N 102 480 03

Accompanying details: N 90842402; N 90501402; N 10248003

[Name] [QTY]

Hex collared bolt 10

No replacement part

see workshop manual

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X22 6

[Name] [Note] [Model info] [QTY]

Engine oil sump with opening for oil level sensor BTS 1

use if required: 03G 103 707 1

038 103 196 1

N 910 652 01 3

N 908 132 02 1

Accompanying details: 03G103707; 038103196; N 91065201; N 90813202

[Name] [Note] [Model info] [QTY]

Engine oil sump CNKA 1

Oil sump without oil sensor

contains: N 911 014 01 1

[Name] [Note]

Oil sump without oil sensor

No replacement part

Use item: 21

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22 1

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22 1

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M6X14 CNKA 20

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M6X22 BTS 20

[Name] [Note] [QTY]

Silicone sealant 80ml X

oil sump

[Name] [Model info] [QTY]

Spacer plate automatic 1

BTS

[Name] [Model info] [QTY]

Spacer plate CNKA 1

[Name] [Model info] [QTY]

Spacer plate manual gearbox 1

BTS

[Name] [Note] [QTY]

Cylinder pin 8X14 4

[Name] [Note] [QTY]

Valve PCV 1

[Name] [QTY]

Hose bracket 1

[Name] [Note] [QTY]

O-ring 18X2,5 1

[Name] [Note] [QTY]

End cap 36,6 1

[Name] [Note] [Model info] [QTY]

Hexagon socket flat head bolt M6X60 CNKA 2

[Name] [Note] [Model info] [QTY]

Socket head bolt with inner multipoint head M6X60 Manual gearbox+ 2

BTS

[Name] [Note] [Model info] [QTY]

dowel sleeve 16X13,5 Manual gearbox+ 2

BTS

[Name] [Note] [Model info] [QTY]

dowel sleeve 16X13,5 CNKA 2

[Name] [Model info] [QTY]

Bungs CNKA 1

[Name] [Model info] [QTY]

Bungs CNKA 1

[Name]

Not for this model

[Name] [Note]

bush

see illustration: 105-010

[Name]

Not for this model

[Name] [Note] [Model info] [QTY]

End cap 22 BTS 1

[Name] [Note] [Model info] [QTY]

End cap 25 CNKA 1

[Name] [Note] [Model info] [QTY]

End cap 25 BTS X

[Name] [Note] [QTY]

dowel sleeve 13,2X13 2

[Name] [Note] [QTY]

Shaft oil seal 35X48X10 1

[Name] [Model info] [QTY]

timing case manual gearbox 1

BTS

[Name] [Model info] [QTY]

timing case automatic/ 1

BTS

[Name] [Model info] [QTY]

timing case CNKA 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Silicon sealant 50ML 1

[Name] [Note] [Model info] [QTY]

End cap BTS 1

Label CASTROL

[Name] [QTY]

End cap 1
