Mounting parts

Engine and transmission mounting parts

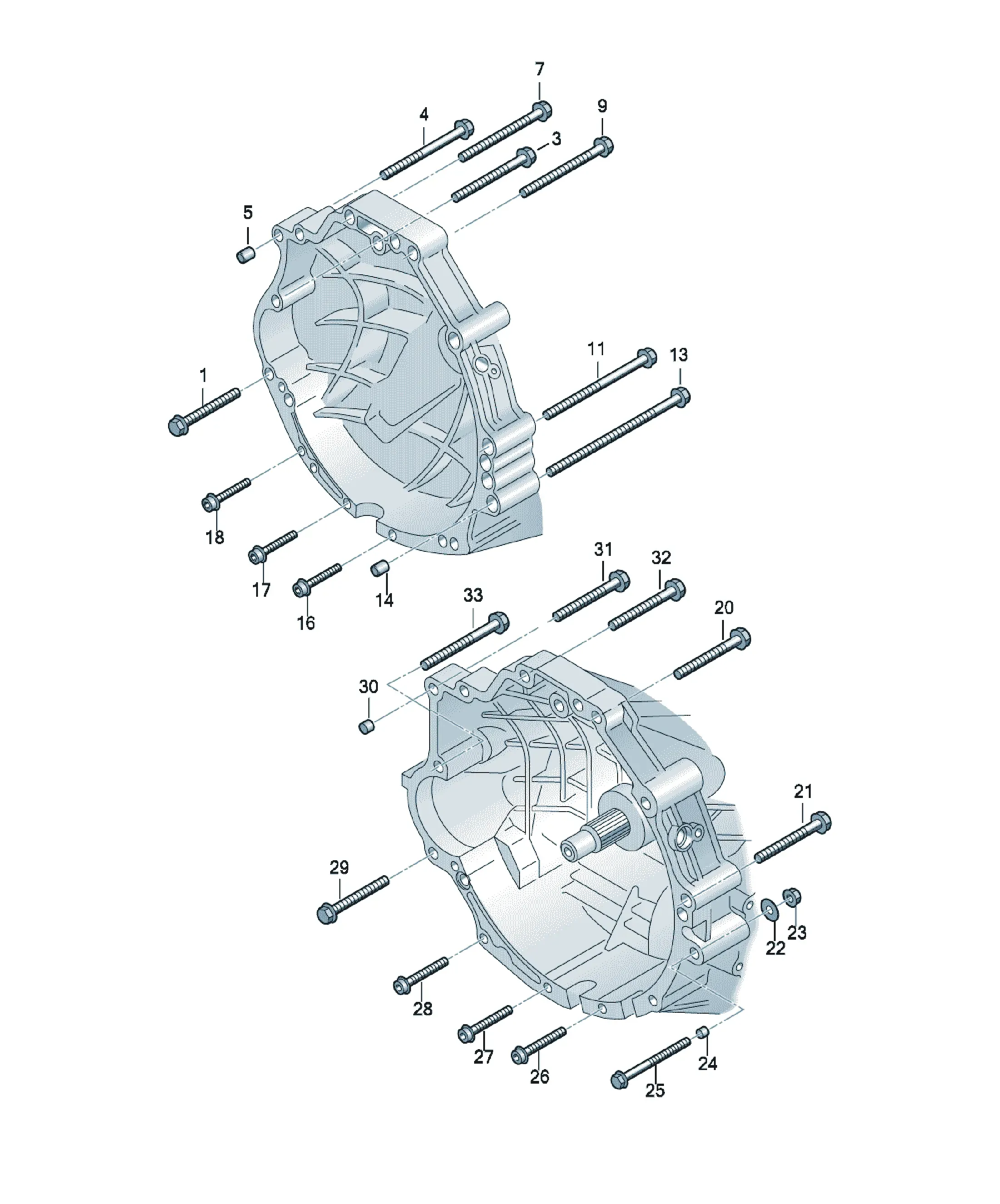

Engine and transmission mounting parts diagram

Parts

42 parts

N10406203 Offers

[Name] [Note] [QTY]
Hex collared bolt M10X80 1
N91047302 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M10X100X80 1
N90886802 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X95 1
N90975402 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X90 1
N90960302 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X115X90 1
N90960302 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X115X90 1
N90767203 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X130 1
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 1
01E301153G Offers

[Name] [Note] [QTY]
dowel sleeve 16X18,8 1
N90990102 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M10X70 1
N90315103 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M10X80X45 1
Replacements: N 10709101
N90990102 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M10X70 1
N90315103 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M10X80X45 1
Replacements: N 10709101
N90315103 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) AM10X70-Z0 1
Replacements: N 10709101
N90315103 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) AM10X70-Z0 1
Replacements: N 10709101
N90315103 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M10X80X45 1
Replacements: N 10709101
N90990102 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M10X70 1
N90495704 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X100 1
N90886802 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X95 1
N90868902 Offers

[Name] [Note] [QTY]
Washer 10,5X24X3 1
N10261311 Offers

[Name] [Note] [QTY]
Hexagon nut M10 1
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 1
N10443604 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M10X100 1
N10304404 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M10X70 1
N10304404 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M10X70 1
N10304404 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M10X70 1
N91047302 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M10X100X80 1
N90975402 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X90 1
N10296105 Offers

[Name] [Note] [QTY]
Hexagon flange screw M10X90 1
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 1
N90495704 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X100 1
N90886802 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X95 1
N90975402 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X90 1
N90971402 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X105X90 1
N90886802 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X95 1
01E301153G Offers

[Name] [Note] [QTY]
dowel sleeve 16X18,8 1
022103139B Offers

[Name] [Note] [QTY]
dowel sleeve 16X13,5 1
N90886802 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X95 1
N90971402 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X105X90 1
N90886802 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X95 1
N90971402 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X105X90 1
N90886802 Offers

[Name] [Note] [QTY]
Hex collared bolt M12X95 1
