Mounting parts

Exhaust system

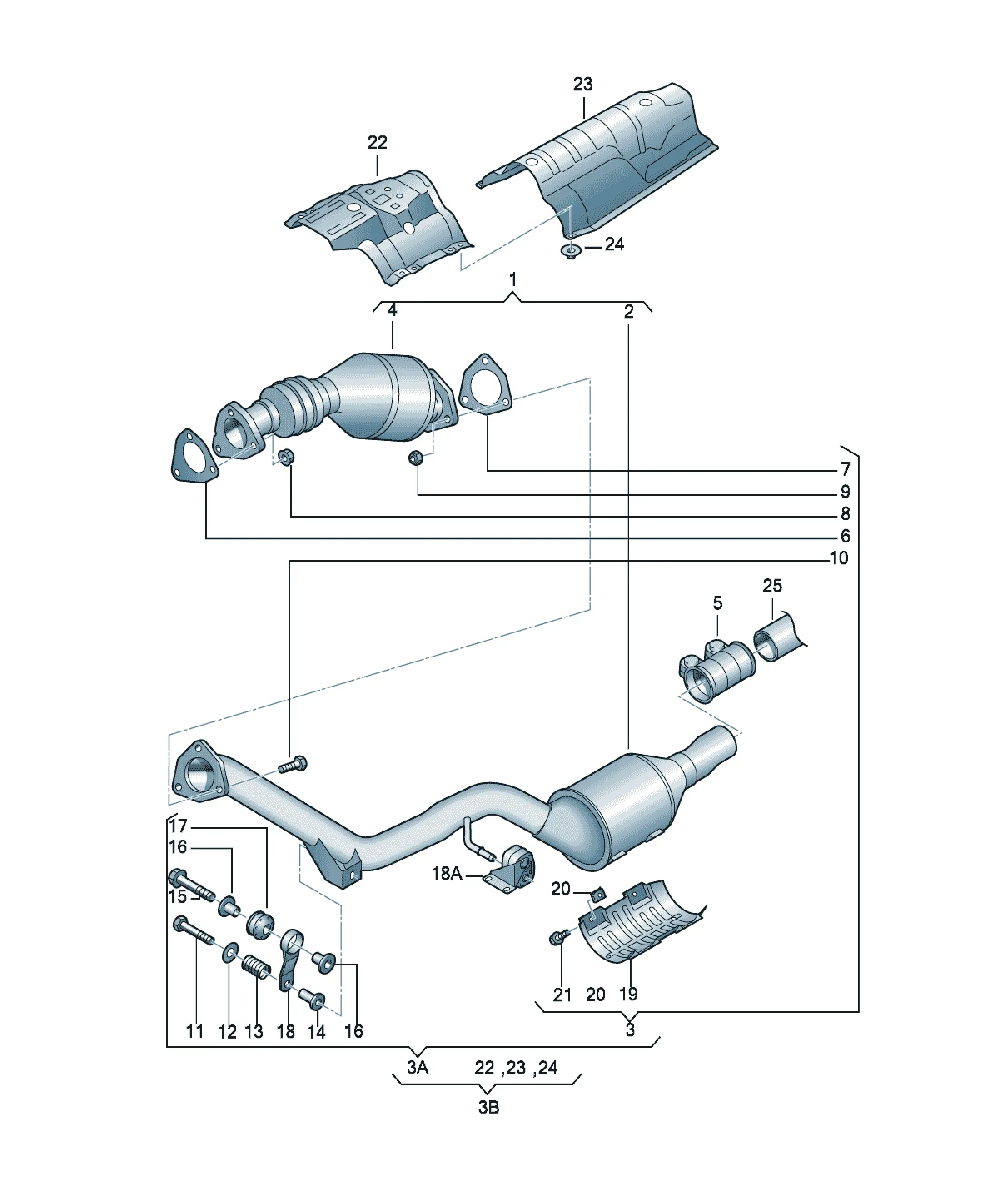

Exhaust system diagram

Parts

29 parts

------------------------------ To convert/retrofit please observe the additional notes on the Audi ServiceNet ------------------------------

[Name]
------------------------------ To convert/retrofit please observe the additional notes on the Audi ServiceNet ------------------------------
8E0298200DX Offers

[Name] [Note] [QTY]
Retrofit kit for diesel particulate filter 1
*For vehicles with catalyst *performance of more than *80 000 KM or age above *5 years
also use: 4F0 298 095 A 1
use if required: 1K0 253 141 M 1
Accompanying details: 4F0298095A; 1K0253141M
repair set
8E0254201DX Catalytic converter PR:TB3 1
4F0254800D Diesel particulate filter BNA,BLB 1
(for retrofitting)
N0102478 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X35 3
[Name]
Not for this model
[Name]
Not for this model
[Name]
Not for this model
[Name]
Not for this model
[Name]
Not for this model
[Name]
Not for this model
[Name]
Not for this model
[Name] [Note]
Bracket
(Installed as standard)
see illustration: 253-045
Use item: 8
8D0253753F Offers

[Name] [QTY]
Guard plate 1
4F0254800D Offers

[Name] [Note] [QTY]
Diesel particulate filter 1
*for retrofitting on *vehicles with catalyst *mileages of less than *80 000 km or with an age *of less than 5 years
also use: 8E0 298 095 B 1
use if required: 1K0 253 141 M 1
Accompanying details: 8E0298095B; 1K0253141M
4F0254800D Offers

[Name] [QTY]
Diesel particulate filter 1
(for repairs only)
Accompanying details: 8E0298095B; 1K0253141M
1J0253270A Offers

[Name] [QTY]
Clip nut 2
N90440706 Offers

[Name] [Note] [QTY]
Hexagon bolt M6X15 4
[Name]
Heat shield
(Installed as standard)
[Name]
Heat shield
(Installed as standard)
[Name]
speed nut
(Installed as standard)
[Name] [Note]
Exhaust pipe
see illustration: 253-080
4F0298095A Offers

[Name] [QTY]
1 set attachment parts for diesel particulate filter retrofit 1
repair set
3A0253115 Seal 1
1H0253115 Seal 1
N 90200201 Hexagon collar nut self-locking M8 6
N 0102478 Hexagon bolt M8X35 3
8D0253753F Guard plate 1
1J0253270A Clip nut 2
N 90440706 Hexagon bolt M6X15 4
[Name]
Not for this model
[Name]
Not for this model
8E0254201DX Offers

[Name] [QTY]
Catalytic converter 1
1K0253141M Offers

[Name] [Note] [QTY]
dual clip 55X95MM 1
3A0253115 Offers

[Name] [QTY]
Seal 1
1H0253115 Offers

[Name] [QTY]
Seal 1
N90200201 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M8 3
Replacements: N 91130801
N90200201 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M8 3
Replacements: N 91130801
