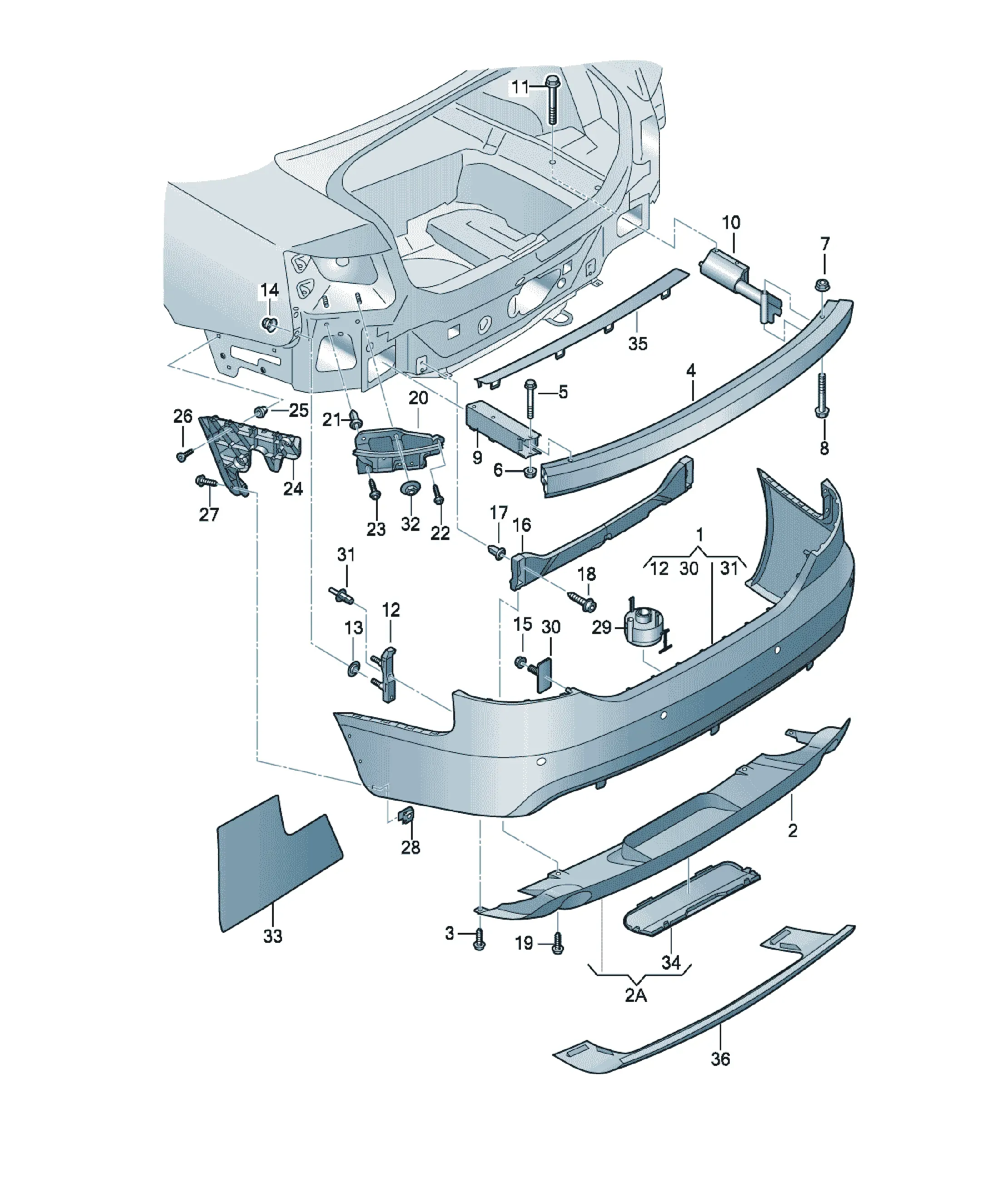

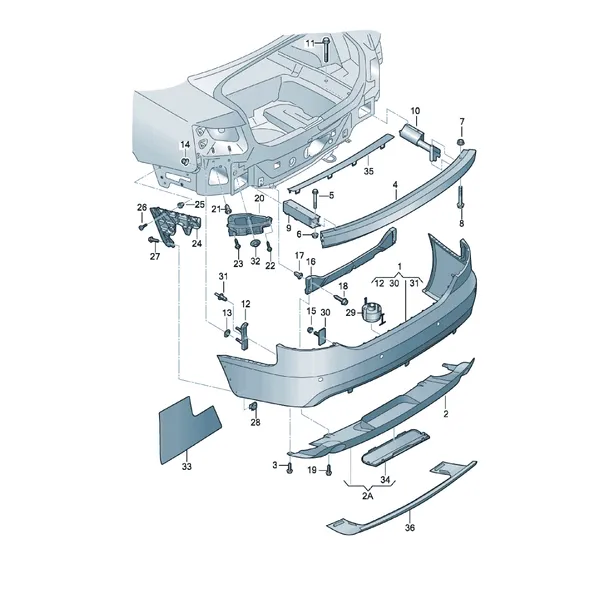

Rear bumper

[Name] [QTY]

1 set fixing parts for bumper

F >> 4F-7-100 000* 1

repair set

N 90775801 Hexagon socket head panel bolt 4,8X19 12

N 10617001 hexagon head bolt (combi) M8X80 2

N 90886602 Hexagon collar nut M8 2

N 90610003 hex. nut, self-locking with washer M10 2

N 10616801 hexagon head bolt (combi) M10X130 2

N 90772102 hexagon head bolt (combi) M10X105X45 4

4B0807467B Grommet 4

WHT001002 hex. nut with washer M6 4

N 90175205 Hexagon collar nut M6 2

N 10621301 expanding nut 5X13,2 8

N 90775001 Hexagon socket head panel bolt 4,8X16 2

N 10507301 expanding nut 5X15,3 6

N 90897401 Hexagon socket head panel bolt 5X16 6

N 10412804 Hexagon socket head panel bolt 5X16 6

8D0807300A expanding nut 10,3MM 6

N 90767602 Hexagon socket head panel bolt 6X12 6

N 90356203 Speed nut M5X16,6X17 6

4F0807739 Securing plate left a. right 2

N 90346302 Pop rivet 4X18,8 4

N 90708803 speed nut 5 4

[Name] [QTY]

bumper 1

for vehicles with parking aid

[Name] [QTY]

bumper 1

[Name]

primed

Items supplied

4F5807511 bumper 1

4F5807511 GRU primed

4F5807385 Closing element center 1

4F5807863 Securing strip left 1

4F5807864 Securing strip right 1

N 90346302 Pop rivet 4X18,8 4

Securing pin left a. right 4

4F0807739 Securing plate left a. right 2

N 90356203 Speed nut M5X16,6X17 6

[Name] [Model info] [QTY]

bumper PR:2K5,2K6 1

for vehicles with parking aid

[Name]

primed

Items supplied

4F5807511B bumper 1

4F5807511B GRU primed

4F5807385A Closing element center 1

4F0807739 Securing plate left a. right 2

4F5807863 Securing strip left 1

4F5807864 Securing strip right 1

N 90346302 Pop rivet 4X18,8 4

Securing pin left a. right 4

Securing pin left a. right 2

4B0807467B Grommet 4

4F0807381 Support element center 1

N 90356203 Speed nut M5X16,6X17 6

[Name] [Model info] [QTY]

bumper PR:2K1,2K3, 1

2K7

[Name] [Note]

brilliant black

For exterior colour: -A2

Replacements: 4F5807303A GRU; 7H0919275E Y9B

repair set

4F5807303A bumper rear 1

for vehicles with parking aid

4F5807303A Y9B brilliant black

7H0919275E Sensor 4

Parking aid

7H0919275E Y9B brilliant black

[Name] [Model info] [QTY]

1 set bumper covers PR:2K1,2K3, 1

2K7

for vehicles with parking aid

[Name]

primed

Items supplied

4F5807511C bumper 1

4F5807511C GRU primed

4F5807385A Closing element center 1

4F0807739 Securing plate left a. right 2

4F5807863 Securing strip left 1

4F5807864 Securing strip right 1

N 90346302 Pop rivet 4X18,8 4

Securing pin left a. right 4

MATERIALNUMMER DYN. NOBEL 3161941

Securing pin left a. right 2

MATERIALNUMMER DYN. NOBEL 3169598

4B0807467B Grommet 4

4F5919289B Support left inner 1

Ultrasound sensor

4F5919290B Support right inner 1

Ultrasound sensor

4F5919289C Support left outer 1

Ultrasound sensor

4F5919290C Support right outer 1

Ultrasound sensor

4F0807381 Support element center 1

N 90356203 Speed nut M5X16,6X17 6

[Name]

primed

Items supplied

4F5807511A bumper 1

4F5807511A GRU primed

4F5919289 Support left inner 1

Ultrasound sensor

4F5919290 Support right inner 1

Ultrasound sensor

4F5919289A Support left outer 1

Ultrasound sensor

4F5919290A Support right outer 1

Ultrasound sensor

4F5807385 Closing element center 1

4F5807863 Securing strip left 1

4F5807864 Securing strip right 1

N 90346302 Pop rivet 4X18,8 4

Securing pin left a. right 4

Securing pin left a. right 2

4F0807739 Securing plate left a. right 2

N 90356203 Speed nut M5X16,6X17 6

[Name] [Model info] [QTY]

bumper PR:2K1,2K3, 1

for vehicles with parking aid 2K7

[Name]

primed

Items supplied

4F9807511 bumper 1

4F9807511 GRU primed

4F9807385 Closing element center 1

4F0807381 Support element center 1

4F9807863 Securing strip left 1

4F9807864 Securing strip right 1

Spreader rivet 4

4F0807739A Securing pin M6 4

4F0807739 Securing plate left a. right 2

[Name] [Model info] [QTY]

bumper PR:2K5,2K6 1

[Name]

primed

Items supplied

4F9807511A bumper 1

4F9807511A GRU primed

4F9807385 Closing element center 1

4F0807381 Support element center 1

4F9807863 Securing strip left 1

4F9807864 Securing strip right 1

4F9919289 Support left inner 1

4F9919289A Support left outer 1

4F9919290 Support right inner 1

4F9919290A Support right outer 1

Spreader rivet 4

4F0807739A Securing pin M6 4

4F0807739 Securing plate left a. right 2

[Name] [Note] [Model info] [QTY]

Shock absorber right PR:2K5 1

[Name] [Note] [Model info] [QTY]

Shock absorber left PR:2K5,2K6 1

[Name] [Note] [Model info] [QTY]

Shock absorber right PR:2K5,2K6 1

[Name] [Note] [Model info] [QTY]

Shock absorber left PR:2K5 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X105X45

F >> 4F-7-046 132 4

Replacements: N 90772102

[Name] [Note] [QTY]

Fasteners left 1

repair set

4F5807863 Securing strip left 1

4F0807739A Securing pin M6 2

N 90346302 Pop rivet 4X18,8 2

[Name] [Note] [QTY]

Fasteners right 1

repair set

4F9807864 Securing strip right 1

4F0807739A Securing pin M6 2

N 90346302 Pop rivet 4X18,8 2

[Name] [Note] [QTY]

Fasteners left 1

repair set

4F9807863 Securing strip left 1

4F0807739A Securing pin M6 2

N 90346302 Pop rivet 4X18,8 2

[Name] [Note] [QTY]

Fasteners right 1

repair set

4F5807864 Securing strip right 1

4F0807739A Securing pin M6 2

N 90346302 Pop rivet 4X18,8 2

[Name] [QTY]

Grommet 4

[Name] [Note] [QTY]

hex. nut with washer M6 4

[Name] [Note] [QTY]

hex. nut with washer M6 4

[Name] [QTY]

Holding strap 1

[Name] [Note] [QTY]

Holding strap lower 1

[Name] [Note] [QTY]

expanding nut 5X13,2 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X16 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X19 X

[Name]

Satin black

[Name]

Platinum grey

[Name] [Model info] [QTY]

Spoiler Petrol eng.+ 1

for trailer towing PR:2K1

[Name] [Note] [Model info] [QTY]

Spoiler Carbon PR:2K3,5J1 1

for trailer towing

[Name] [Note] [Model info] [QTY]

Spoiler Carbon PR:2K3+5J1 1

[Name] [Model info] [QTY]

Spoiler PR:2K3,2K6 1

[Name]

Satin black

Items supplied

4F9807521A Spoiler lower rear diesel eng. 1

4F9807521A 01C Satin black

4F0807819 Trim for bumper center 1

[Name] [Model info] [QTY]

Spoiler Diesel eng.+ 1

for trailer towing PR:2K1

[Name]

Satin black

Items supplied

4F9807521 Spoiler lower rear Petr. engine 1

4F9807521 01C Satin black

4F0807819 Trim for bumper center 1

[Name]

Platinum grey

[Name]

primed

[Name] [Model info] [QTY]

Spoiler Diesel eng.+ 1

PR:2K7

[Name]

primed

[Name] [Model info] [QTY]

Spoiler Petrol eng.+ 1

PR:2K7

[Name] [Model info] [QTY]

Spoiler Diesel eng.+ 1

PR:2K1

[Name]

Satin black

[Name] [Model info] [QTY]

Spoiler Petrol eng.+ 1

PR:2K1,2K5

[Name] [Model info] [QTY]

Spoiler PR:2K3,2K4+ 1

1D0+5J1

[Name] [Model info] [QTY]

Spoiler PR:2K3,2K6+ 1

5J2

[Name] [Model info] [QTY]

Spoiler PR:2K3,2K6 1

[Name]

primed

[Name] [Model info] [QTY]

Spoiler Diesel eng.+ 1

PR:2K7

[Name]

primed

[Name] [Model info] [QTY]

Spoiler Petrol eng.+ 1

PR:2K7,2K8

[Name] [Model info] [QTY]

Spoiler Diesel eng.+ 1

PR:2K1,2K5

[Name]

Satin black

[Name] [Model info] [QTY]

Spoiler Petrol eng.+ 1

PR:2K1,2K5

[Name]

Satin black

Items supplied

4F5807521A Spoiler diesel eng. 1

4F5807521A 01C Satin black

4F0807819 Trim for bumper 1

[Name] [Model info] [QTY]

Spoiler Diesel eng.+ 1

for trailer towing PR:2K1

[Name]

Satin black

Items supplied

4F5807521 Spoiler PR:1D4:2K1 1

4F5807521 01C Satin black

4F0807819 Trim for bumper PR:1D4:2K1 1

[Name] [Model info] [QTY]

Spoiler Petrol eng.+ 1

for trailer towing PR:2K1

[Name]

Satin black

[Name] [Note] [QTY]

adjustment part left 1

[Name] [Note] [QTY]

adjustment part

F >> 4F-8-075 000 left 1

[Name] [Note] [QTY]

adjustment part

F >> 4F-8-075 000 right 1

[Name] [Note] [QTY]

adjustment part right 1

[Name] [Note] [QTY]

expanding nut 5X13,2 2

[Name] [Note] [QTY]

expanding nut

F >> 4F-8-040 000 5/7,4X7,4 6

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X16 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 6

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 6

[Name] [Note] [QTY]

Guide section right 1

[Name] [Note] [QTY]

Guide section right 1

[Name] [Note] [QTY]

Guide section left 1

[Name] [Note] [QTY]

Guide section left 1

[Name] [Note] [QTY]

expanding nut 10,3MM 6

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X12 6

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X19 X

[Name] [Note] [QTY]

Speed nut 4,8X16,5X13 6

[Name] [QTY]

Support element 1

[Name] [Model info] [QTY]

Support element PR:2K5,2K6 1

[Name] [Model info]

Support element PR:2K1,2K3,

Not for this model 2K7

[Name]

Platinum grey

Items supplied

4F9807521N Spoiler 1

4F9807521N 1RR Platinum grey

4F9807165 Reinforcement 1

4F9807397 Cover 1

4F9807397 1RR Platinum grey

[Name] [Model info] [QTY]

Spoiler PR:2K3,2K6 1

for trailer towing

[Name]

primed

Items supplied

4F9807521F Spoiler lower rear Diesel eng.+ 1

for trailer towing PR:2K7,1D4

4F9807521F GRU primed

4F9807165 Reinforcement AVANT 1

4F9807397 Cover lower rear PR:1D4:2K7, 1

for models with towing facility 2K3

4F9807397 GRU primed

[Name]

primed

[Name] [Model info] [QTY]

Spoiler Diesel eng.+ 1

for trailer towing PR:2K7

[Name] [Model info] [QTY]

Spoiler PR:2K3 1

for trailer towing

[Name]

Platinum grey

[Name]

primed

[Name]

primed

Items supplied

4F9807521E Spoiler lower rear Petrol eng.+ 1

for trailer towing PR:2K7,1D4

4F9807521E GRU primed

4F9807165 Reinforcement AVANT 1

4F9807397 Cover lower rear PR:1D4:2K7, 1

for models with towing facility 2K3

4F9807397 GRU primed

[Name] [Model info] [QTY]

Spoiler Petrol eng.+ 1

for trailer towing PR:2K7

[Name] [Model info] [QTY]

Spoiler Petrol eng.+ 1

for trailer towing PR:2K7

[Name] [Model info] [QTY]

Spoiler Diesel eng.+ 1

for trailer towing PR:2K7

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X19 X

[Name] [Note] [QTY]

Securing plate left a. right 2

[Name] [Note] [QTY]

Pop rivet 4X18,8 X

[Name]

Not for this model

[Name] [Note] [QTY]

speed nut 4 4

[Name] [Note] [Model info] [QTY]

Protective film left rear PR:1SH 1

[Name] [Note] [Model info] [QTY]

Protective film right rear PR:1SH 1

[Name]

Not for this model

[Name] [Model info] [QTY]

Cover PR:1D4+2K7 1

for models with towing facility

[Name] [Model info]

Cover PR:1D4+2K1

Not for this model

[Name] [Model info]

Cover PR:2K1

No replacement part

[Name]

Platinum grey

[Name] [Model info] [QTY]

Cover PR:1D4+2K3, 1

for models with towing facility 2K6

[Name]

primed

[Name] [Model info] [QTY]

Cover PR:1D4+2K7 1

for models with towing facility

[Name]

Platinum grey

[Name] [Model info] [QTY]

Cover PR:1D4+2K3 1

for models with towing facility

[Name]

primed

[Name]

Satin black

[Name] [Note] [QTY]

Cover rear 1

Replacements: 4F9807421 01C

[Name]

Cover

Not for this model

[Name]

Cover

Not for this model

[Name] [Model info] [QTY]

Bumper carrier PR:1D0+2K5, 1

2K6

[Name] [Model info] [QTY]

Bumper carrier PR:1D0+2K1, 1

2K3,2K7

[Name] [Model info] [QTY]

Bumper carrier PR:1D0+2K5 1

[Name] [Note] [Model info]

Tow hitch, swivel-type PR:1D4

see illustration, item: 804-050,1

[Name] [Model info] [QTY]

Bumper carrier PR:1D0+2K1, 1

2K7,2K3

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X80 4

[Name] [Note] [Model info] [QTY]

hexagon head bolt (combi) M8X75 PR:2K1,2K3,

F 4F-5-095 001>> left a. right 2K7 2

[Name] [Note] [Model info] [QTY]

Hexagon collar nut M8 PR:2K1,2K3, 2

left a. right 2K7

[Name] [Note] [Model info] [QTY]

Hexagon collar nut M8 PR:2K1,2K7 2

left a. right

[Name] [Note] [Model info] [QTY]

hex. nut, self-locking with washer M10 2

left a. right PR:2K5,2K6

[Name] [Note] [Model info] [QTY]

hex. nut, self-locking with washer M10 PR:2K5 2

left a. right

[Name] [Note] [Model info] [QTY]

hexagon head bolt (combi) M10X130 PR:2K5,2K6 2

left a. right

[Name] [Note] [Model info] [QTY]

hexagon head bolt (combi) M10X130 PR:2K5 2

left a. right

[Name] [Note] [Model info] [QTY]

holder for bumper bracket left a. right PR:2K1,2K3, 2

2K7

[Name] [Note] [QTY]

holder for bumper bracket left a. right 2
