Mounting parts

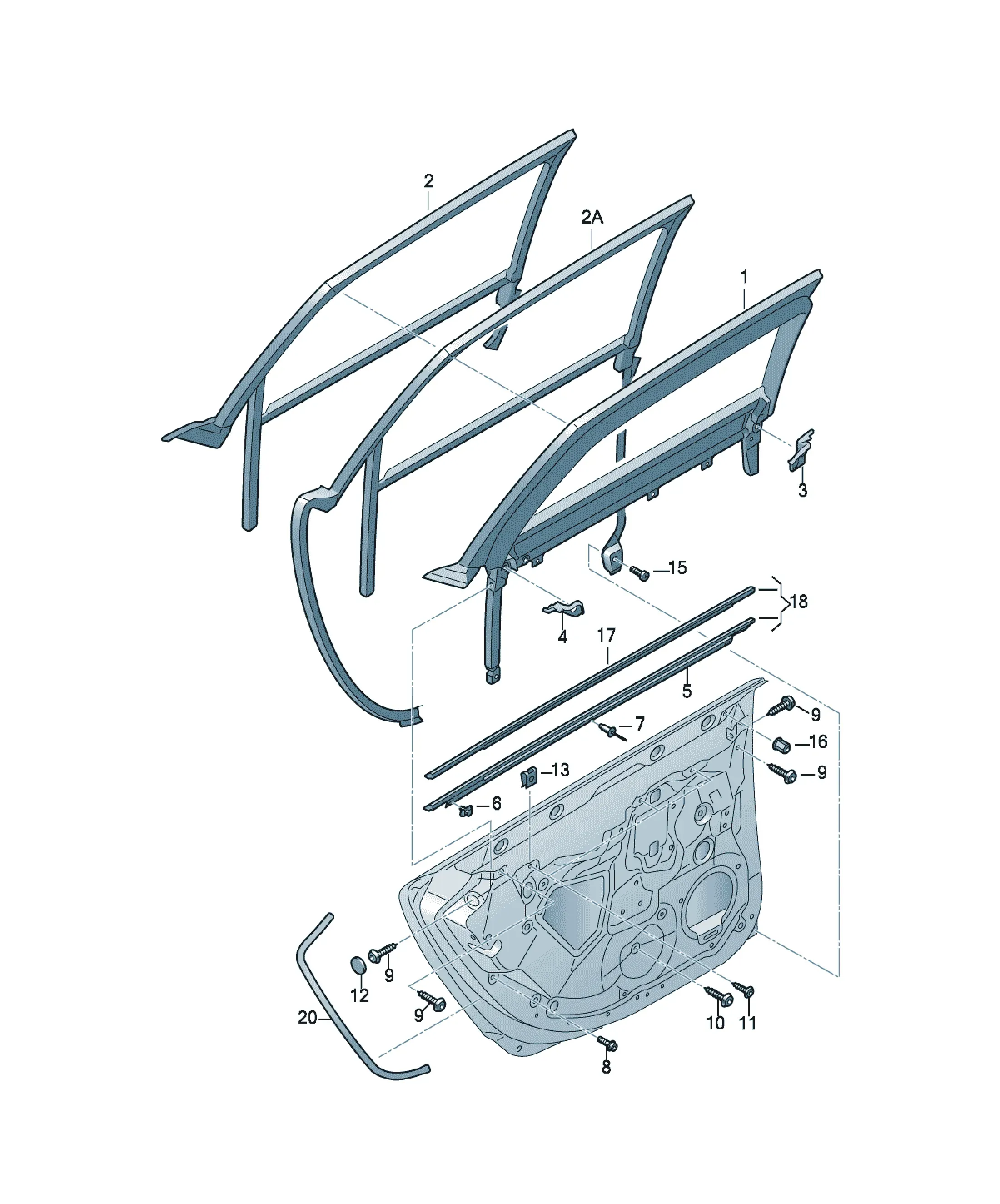

Door window frame

Parts

40 parts

4F9839630D Offers

[Name] [Note] [QTY]
window frame right 1
4F5839629F Offers

[Name] [Note] [QTY]
window frame left 1
4F5839630F Offers

[Name] [Note] [QTY]
window frame right 1
4F9839629D Offers

[Name] [Note] [QTY]
window frame left 1
N91063701 Offers

[Name] [Note] [QTY]
Hex socket oval head collared M5X14 2
N90698606 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 4,2X16 6
N10226501 Offers

[Name] [Note] [QTY]
Bungs 30 2
N90698703 Offers

[Name] [Note] [QTY]
Speed nut 4,2X16X12 6
N01412216 Offers

[Name] [Note] [Model info] [QTY]
fillister hd. bolt M4X8 PR:6U7 2
N90286804 Offers

[Name] [Note] [QTY]
rivetted cap nut M5/0,5-3 6
[Name] [Note]
Trim strip for window well
see illustration: 853-020
[Name] [Note]
window slot seal with trim strip
see illustration: 853-020
4F9839439R Offers

[Name] [Note] [Model info] [QTY]
Window guide left PR:4KC,4KF+ 1
6U0
4F5839440Q Offers

[Name] [Note] [Model info] [QTY]
Window guide right PR:4KV+6U0 1
Replacements: 4F5839440AC
4F9839439N Offers

[Name] [Note] [Model info] [QTY]
Window guide left PR:4KR+6U0 1
Replacements: 4F9839439S
4F9839440M Offers

[Name] [Note] [Model info] [QTY]
Window guide right PR:4KC,4KF+ 1
6U0
Replacements: 4F9839440R
4F9839440N Offers

[Name] [Note] [Model info] [QTY]
Window guide right PR:4KR+6U0 1
Replacements: 4F9839440S
4F5839439AB Offers

[Name] [Note] [Model info] [QTY]
Window guide left PR:4KC,4KF+ 1
6U0
4F5839439Q Offers

[Name] [Note] [Model info] [QTY]
Window guide left PR:4KV+6U0 1
Replacements: 4F5839439AC
4F5839440P Offers

[Name] [Note] [Model info] [QTY]
Window guide right PR:4KC,4KF+ 1
6U0
Replacements: 4F5839440AB
4F0833705 Offers

[Name] [Note] [Model info] [QTY]
dust cover left PR:6U0 1
For retrofitting
4F0833706 Offers

[Name] [Note] [Model info] [QTY]
dust cover right PR:6U0 1
For retrofitting
4F9839440Q Offers

[Name] [Note] [Model info] [QTY]
Window guide right PR:4KR+6U7 1
Replacements: 4F9839440AA
4F9839440T Offers

[Name] [Note] [Model info] [QTY]
Window guide right PR:4KC,4KF+ 1
6U7
4F9839439Q Offers

[Name] [Note] [Model info] [QTY]
Window guide left PR:4KR+6U7 1
Replacements: 4F9839439AA
4F5839439S Offers

[Name] [Note] [Model info] [QTY]
Window guide left PR:4KV+6U7 1
Replacements: 4F5839439AE
4F5839439AD Offers

[Name] [Note] [Model info] [QTY]
Window guide left PR:4KC,4KF+ 1
6U7
4F9839439P Offers

[Name] [Note] [Model info] [QTY]
Window guide left PR:4KC,4KF+ 1
6U7
Replacements: 4F9839439T
4F5839440S Offers

[Name] [Note] [Model info] [QTY]
Window guide right PR:4KV+6U7 1
Replacements: 4F5839440AE
4F5839440AD Offers

[Name] [Note] [Model info] [QTY]
Window guide right PR:4KC,4KF+ 1
6U7
[Name] [Note]
Seal
see illustration: 867-040
[Name] [Note]
Seal
see illustration: 867-040
4F0839478A Offers

[Name] [Note] [Model info] [QTY]
Window aperture seal right outer PR:4ZE,4ZM 1
4F0839477A Offers

[Name] [Note] [Model info] [QTY]
Window aperture seal left outer PR:4ZE,ZM 1
4F0839478A Offers

[Name] [Note] [Model info] [QTY]
Window aperture seal right outer PR:4ZE,ZM 1
4F0839477A Offers

[Name] [Note] [Model info] [QTY]
Window aperture seal left outer PR:4ZE,4ZM 1
8L3837199B Offers

[Name] [QTY]
Clip 2
N90097802 Offers

[Name] [Note] [QTY]
Pop rivet 4X8 4
N90842903 Offers

[Name] [Note] [QTY]
Hex socket head collared bolt M6X12 2
4B0845643C Offers

[Name] [Note] [QTY]
Hexagon socket oval head bolt (combi) M8X31,5 8

Door window frame
