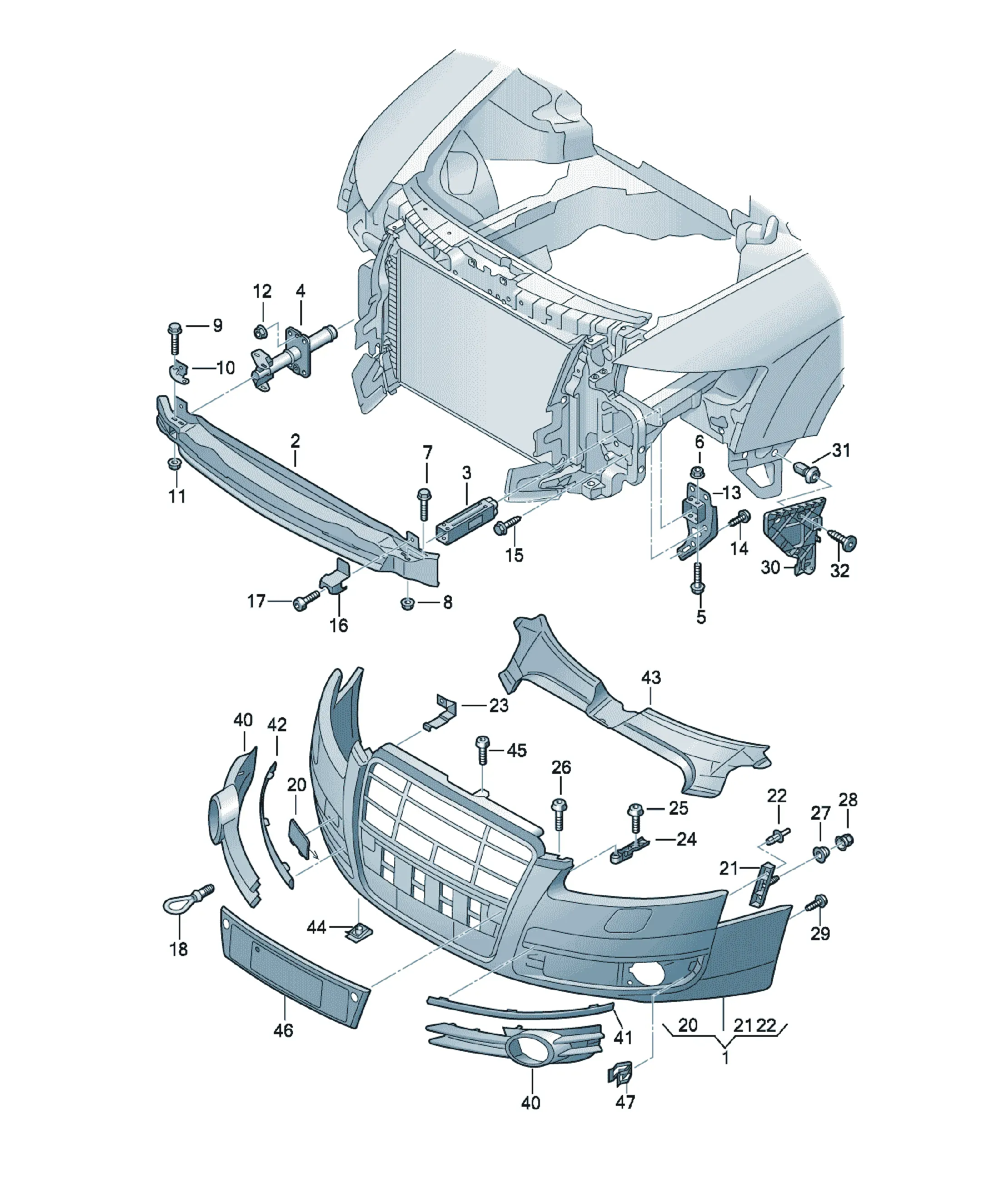

Front bumper

[Name] [Note] [Model info] [QTY]

Pan head bolt with double thread 4X8 PR:2K1,2K5 X

[Name] [QTY]

1 set fixing parts for bumper

F >> 4F-7-100 000* 1

repair set

WHT001659 socket head hexagon bolt with cone M10X83 4

N 10286110 Hexagon collar nut self-locking M10 4

N 10617001 hexagon head bolt (combi) M8X80 4

N 10340103 Hexagon collar nut M8 8

N 90843202 hexagon head bolt (combi) M8X120X41 4

N 01508210 Hexagon collar nut M6 4

N 90967502 Hexagon socket head panel bolt 7X16 2

N 91067801 bolt,hex.hd.with shoul.(combi) M8X45 8

N 10124408 Hexagon socket head bolt (combi) M6X20 2

N 90346302 Pop rivet 4X18,8 4

N 90369405 Socket head bolt M6X20 2

N 10483102 Hex socket head bolt (combi) M6X50 2

4B0807467B Grommet 2

WHT001002 hex. nut with washer M6 2

N 90775801 Hexagon socket head panel bolt 4,8X19 6

431807300D expanding nut 6

N 90767602 Hexagon socket head panel bolt 6X12 6

8E0805960 Speed nut 3

N 90808503 Socket head bolt with inner multipoint head (Kombi) M6X25 1

[Name] [Note] [QTY]

insert nut 4X11 X

[Name] [QTY]

Compensating piece 2

[Name] [Model info] [QTY]

bumper PR:2K1,2K5 1

for vehicles with headlight washer system

[Name] [Model info] [QTY]

bumper PR:2K1 1

for vehicles with parking aid

[Name]

primed

Items supplied

4F0807437A bumper 1

4F0807437A GRU primed

4F0807233 Closing element center 1

4F0807277 Securing strip left 1

4F0807278 Securing strip right 1

Pop rivet left a. right 4

Securing pin left a. right 2

4F0807441 cover for towing eye right front 1

4F0807441 GRU primed

[Name] [Model info] [QTY]

bumper PR:2K7 1

for models with headlight washer system and parking aid

[Name]

primed

Items supplied

4F0807437 bumper 1

4F0807437 GRU primed

4F0807233 Closing element center 1

4F0807277 Securing strip left 1

4F0807278 Securing strip right 1

Pop rivet left a. right 4

Securing pin left a. right 2

4F0807441 cover for towing eye right front 1

4F0807441 GRU primed

[Name]

primed

Items supplied

4F0807437T bumper 1

4F0807437T GRU primed

4F0807233B Closing element center 1

Retainer for bumper left a. right 2

4F0807739A Securing pin M6 4

N 90346302 Pop rivet 4X18,8 4

4B0807467B Grommet 4

4F0919257C Bracket left 1

4F0919258C Bracket right 1

4F0807441B cover for towing eye right front 1

4F0807441B GRU primed

[Name] [Model info] [QTY]

bumper PR:2K3,2K6 1

for vehicles with parking aid

[Name]

primed

Items supplied

4F0807437S bumper 1

4F0807437S GRU primed

4F0807233B Closing element center PR:2K3,2K4 1

4F0807277 Securing strip left 1

4F0807278 Securing strip right 1

Retainer for bumper left a. right 2

4F0807739A Securing pin M6 4

N 90346302 Pop rivet 4X18,8 4

4B0807467B Grommet 4

4F0807441B cover for towing eye right front 1

4F0807441B GRU primed

[Name]

primed

Items supplied

4F0807437J bumper 1

4F0807437J GRU primed

4F0807233A Closing element 1

4F0807277 Securing strip left 1

4F0807278 Securing strip right 1

Pop rivet left a. right 4

Securing pin left a. right 2

4B0807467B Grommet 6

4F0919257A Bracket left outer 1

4F0919258A Bracket right outer 1

4F0807441A cover for towing eye right front 1

4F0807441A GRU primed

[Name] [Model info] [QTY]

bumper PR:2K1,2K5 1

[Name]

primed

Items supplied

4F0807437G bumper 1

4F0807437G GRU primed

4F0807233A Closing element 1

4F0807277 Securing strip left 1

4F0807278 Securing strip right 1

Pop rivet left a. right 4

Securing pin left a. right 2

4B0807467B Grommet 6

4F0807441A cover for towing eye right front 1

4F0807441A GRU primed

[Name] [Model info] [QTY]

bumper PR:2K7 1

for vehicles with headlight washer system

[Name] [Note]

brilliant black

For exterior colour: -A2

Replacements: 4F0807105C GRU; 4F0955275 GRU; 4F0955276 GRU; 7H0919275C Y9B

repair set

4F0807105C bumper front 1

for models with headlight washer system and parking aid

4F0807105C Y9B brilliant black 1

4F0955275 Cover cap left 1

4F0955275 Y9B brilliant black 1

4F0955276 Cover cap right 1

4F0955276 Y9B brilliant black 1

7H0919275C Sensor 2

Parking aid

7H0919275C Y9B brilliant black

[Name] [Note] [Model info] [QTY]

1 set bumper covers front PR:2K1 1

for models with headlight washer system and parking aid

[Name] [Model info] [QTY]

bumper PR:2K3,2K6 1

[Name]

primed

Items supplied

4F0807437C bumper 1

4F0807437C GRU primed

4F0919257A Bracket left outer 1

4F0919258A Bracket right outer 1

4F0807233 Closing element center 1

4F0807277 Securing strip left 1

4F0807278 Securing strip right 1

Pop rivet left a. right 4

Securing pin left a. right 2

4F0807441 cover for towing eye right front 1

4F0807441 GRU primed

[Name] [Model info] [QTY]

bumper PR:2K1 1

for models with headlight washer system and parking aid

[Name]

primed

Items supplied

4F0807437B bumper 1

4F0807437B GRU primed

4F0919257A Bracket left outer 1

4F0919258A Bracket right outer 1

4F0807233 Closing element center 1

4F0807277 Securing strip left 1

4F0807278 Securing strip right 1

Pop rivet left a. right 4

Securing pin left a. right 2

4F0807441 cover for towing eye right front 1

4F0807441 GRU primed

[Name] [Note] [Model info] [QTY]

setting bracket right PR:2K5 1

[Name] [Note] [Model info] [QTY]

setting bracket left PR:2K5 1

[Name] [Note] [QTY]

Hexagon collar nut M8 4

[Name] [Note] [Model info] [QTY]

Hexagon collar nut M6 PR:2K5 4

left a. right

[Name] [Note]

Securing plate

see illustration: 805-000

[Name] [Note] [QTY]

Hexagon socket head panel bolt left a. right 2

Replacements: N 90967502

[Name] [Note] [QTY]

bolt,hex.hd.with shoul.(combi) M8X45 8

left a. right

[Name] [Note] [QTY]

Distance piece left a. right 2

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 2

left a. right

[Name] [Note] [QTY]

Tow hitch front 1

[Name] [Model info] [QTY]

side reinforcement PR:2K5,2K6 1

[Name] [Model info] [QTY]

side reinforcement PR:2K1,2K3, 1

2K7

[Name] [Model info] [QTY]

side reinforcement PR:2K5,2K6 1

for vehicle with cruise contr- ol system and automatic cruise control

[Name] [Note] [Model info] [QTY]

cover for towing eye right PR:2K7 1

[Name]

primed

[Name]

primed

contains:

Retaining clip

[Name] [Note] [Model info] [QTY]

cover for towing eye right PR:2K1,2K5 1

[Name] [Note] [Model info] [QTY]

cover for towing eye right PR:2K3 1

[Name] [Note] [Model info] [QTY]

cover for towing eye right PR:2K7 1

[Name]

primed

Replacements: 4F0807441E GRU

[Name]

primed

[Name] [Note] [QTY]

Fasteners right 1

repair set

4F0807278 Securing strip right 1

4F0807739A Securing pin M6 1

N 90346302 Pop rivet 4X18,8 2

[Name] [Note] [QTY]

Fasteners left 1

repair set

4F0807277 Securing strip left 1

4F0807739A Securing pin M6 1

N 90346302 Pop rivet 4X18,8 2

[Name] [Note] [QTY]

Pop rivet 4X18,8 X

[Name] [QTY]

Retainer for control unit 1

Control unit for opening garage door

[Name] [Note] [QTY]

holder for bumper cover right upper 1

[Name] [Note] [QTY]

holder for bumper cover left upper 1

[Name] [Note] [QTY]

panel screw 5X22 2

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X40

F >> 4F-6-250 000 2

[Name] [QTY]

Grommet 2

[Name] [QTY]

hex. nut with washer 2

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X19 6

[Name] [Note] [Model info] [QTY]

Bracket left PR:2K1,2K3, 1

2K7

[Name] [Note] [Model info] [QTY]

Bracket right PR:2K1,2K3, 1

2K7

[Name] [Note] [QTY]

Guide section left 1

[Name] [Note] [Model info] [QTY]

Guide section right PR:2K3,2K6 1

[Name] [Note] [Model info] [QTY]

Guide section left PR:2K3,2K6 1

[Name] [Note] [QTY]

Guide section right 1

[Name] [Note] [QTY]

expanding nut 10,2 6

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X12 6

[Name] [Note] [Model info] [QTY]

Shock absorber right PR:2K2,2K4, 1

2K5,2K6,2K8

[Name] [Note] [Model info] [QTY]

Shock absorber left PR:2K2,2K4, 1

2K5,2K6,2K8

[Name] [Note] [Model info]

Air guide grille PR:2K1,2K5,

see illustration: 807-035 2K7

[Name] [Note] [Model info]

Air guide grille PR:2K3,2K6

see illustration: 807-040

[Name] [Model info]

Trim PR:2K3,2K6,

No replacement part 2K7

[Name] [Note] [Model info]

Trim PR:2K1,2K5

see illustration, item: 853-000,17

[Name] [Note] [Model info]

LED day lights 10-cylinder

see illustration: 941-085

[Name] [Note] [Model info]

Trim PR:2K1,2K5

see illustration, item: 853-000,17

[Name] [Model info]

Trim PR:2K3,2K6,

No replacement part 2K7

[Name] [Note] [Model info]

LED day lights 10-cylinder

see illustration: 941-085

[Name] [QTY]

Cover 1

[Name] [QTY]

Speed nut 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M6X25 2

[Name] [Note]

trim for licence plate

see illustration: 807-035

[Name] [Model info] [QTY]

Clip S6 X

[Name] [Note] [QTY]

socket head hexagon bolt with cone M10X83 4

[Name] [Note] [QTY]

Hexagon collar nut self-locking M10 4

[Name] [Note] [Model info] [QTY]

hexagon head bolt (combi) M8X75 PR:2K1,2K7 4

left a. right

[Name] [Note] [Model info] [QTY]

Hexagon collar nut M8 PR:2K1,2K7 4

left a. right

[Name] [Note] [Model info] [QTY]

hexagon head bolt (combi) M8X120X41 PR:2K5,2K6 4

left a. right
