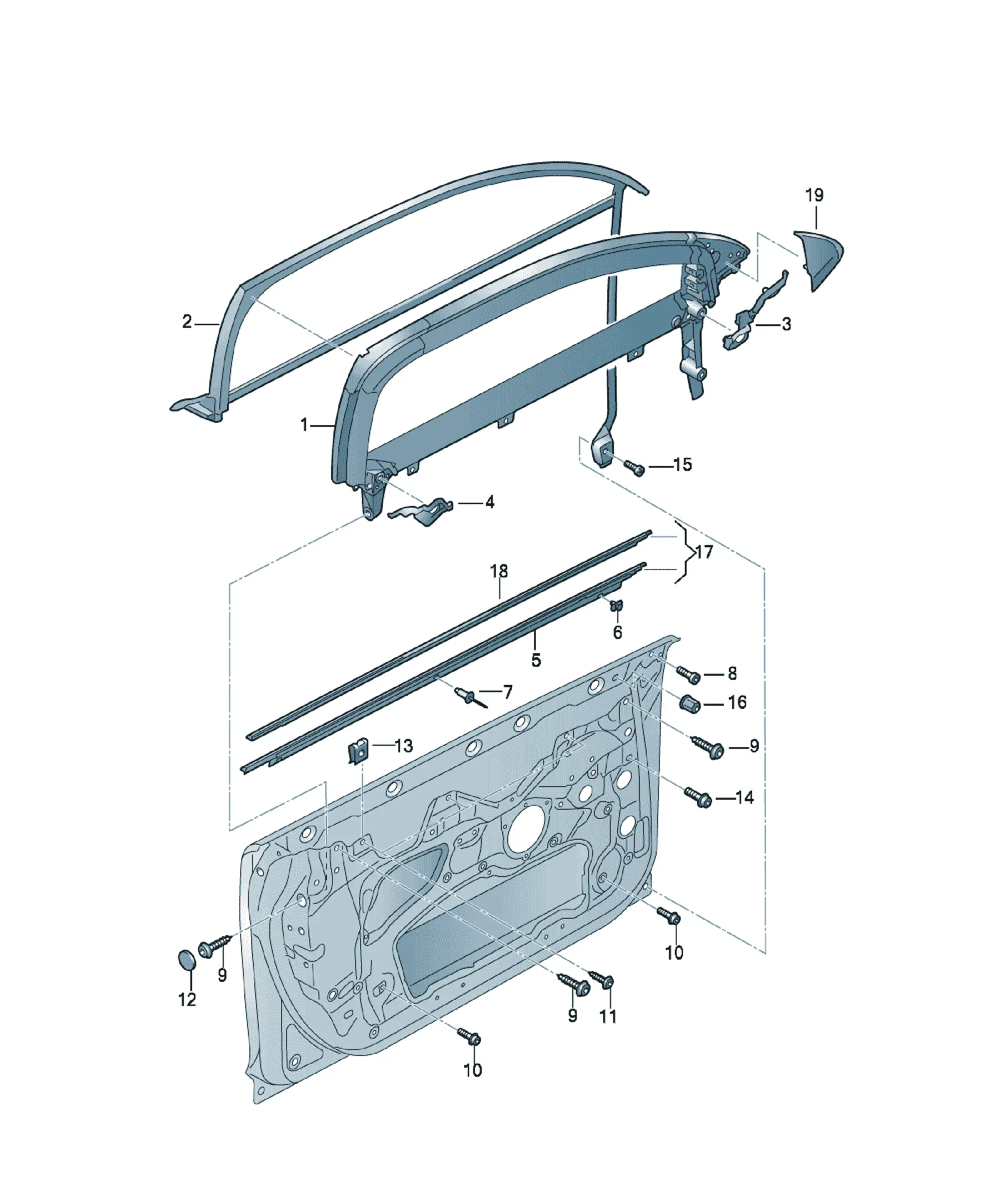

Door window frame

[Name] [Note] [QTY]

window frame left 1

[Name] [Note] [QTY]

window frame right 1

[Name] [Note] [QTY]

Hex socket oval head collared M5X14 4

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,2X16 6

[Name] [Note] [QTY]

Bungs 30 2

[Name] [Note] [QTY]

Speed nut 4,2X16X12 6

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M8X50 2

[Name] [Note] [QTY]

rivetted cap nut M5/0,5-3 6

[Name] [Note]

window slot seal with trim strip

see illustration: 853-020

[Name] [Note]

Trim strip for window well

see illustration: 853-020

[Name] [Note]

Cover

see illustration: 857-040

[Name] [Note] [QTY]

Window guide

F 4F-5-116 511>> left 1

Replacements: 4F0837439R

[Name] [Note] [QTY]

Window guide

F 4F-5-116 511>> right 1

Replacements: 4F0837440R

[Name] [Note]

Seal

see illustration: 867-000

[Name] [Note]

Seal

see illustration: 867-000

[Name] [Note] [Model info] [QTY]

Window aperture seal right outer PR:4ZE,4ZM 1

[Name] [Note] [Model info] [QTY]

Window aperture seal left outer PR:4ZE,4ZM 1

[Name] [QTY]

Clip 2

[Name] [Note] [QTY]

Pop rivet 4X8 4

[Name] [Note] [QTY]

Hex socket head collared bolt M6X12 2

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M8X31,5 6
