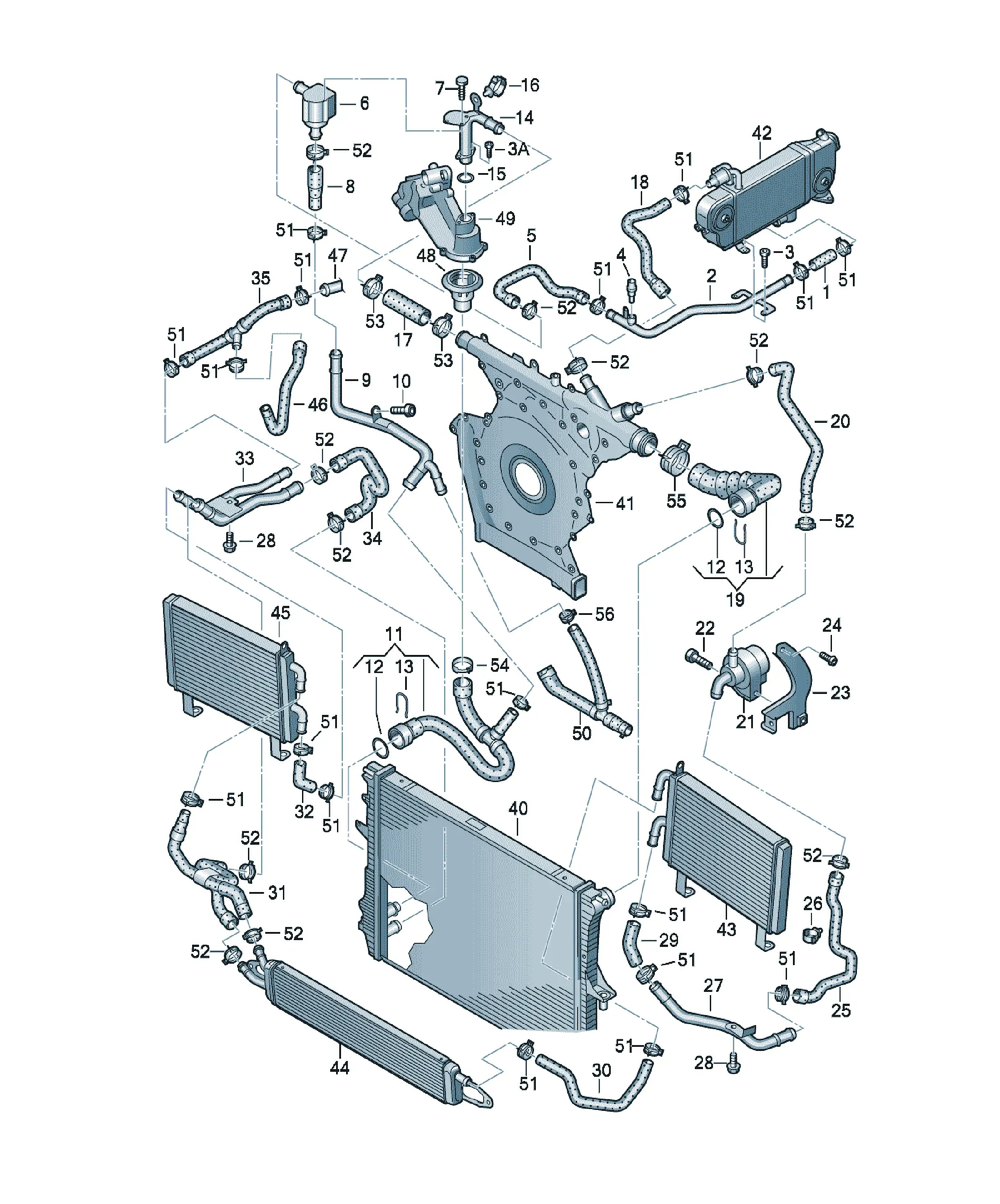

Cooling system

[Name] [Note] [QTY]

O-ring 5,6X2 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 X

[Name] [Note] [QTY]

Coolant hose with quick release coupling right 1

D >> - 24.08.2009*

Replacements: 4L0122101B

[Name] [Note] [QTY]

Coolant hose with quick release coupling right 1

D - 24.08.2009>>*

[Name] [Note] [QTY]

O-ring 38X4 2

[Name] [Note] [QTY]

retaining spring 38MM 2

[Name] [QTY]

Coolant pipe 1

Replacements: 05A121083C

[Name] [Note] [QTY]

O-ring 28X2,5 1

[Name] [Note] [QTY]

Bracket 8X23 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose with valve 1

[Name] [Note] [QTY]

Coolant hose with quick release coupling left 1

D - 24.08.2009>>*

[Name] [Note] [QTY]

Coolant hose with quick release coupling left 1

D >> - 24.08.2009*

Replacements: 4L0122051A

[Name] [Note] [QTY]

Coolant pipe center 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Additional coolant pump left 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X20 1

[Name] [Note] [QTY]

Bracket for additional coolant pump left 1

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X16 2

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Bracket 8X23 1

[Name] [Note] [QTY]

Coolant pipe left 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 2

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 X

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose with valve 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant pipe right 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Note] [QTY]

Temperature sensor 1

also use: WHT 002 287 B 1

Accompanying details: WHT002287B

Replacements: 059919523F

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

Connection piece

thermostat

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [Note]

Cooler for coolant

see illustration: 121-072

[Name] [Note]

Sealing flange

see illustration: 103-070

[Name] [Note]

Cooler for exhaust recuperation

see illustration: 131-020

[Name] [Note]

Additional cooler for coolant left

see illustration: 121-072

[Name] [Note]

Additional cooler for coolant center

see illustration: 121-072

[Name] [Note]

Additional cooler for coolant right

see illustration: 121-072

[Name] [Note]

Coolant hose

see illustration: 121-041

[Name] [Note]

Coolant pipe

see illustration: 121-042

[Name] [Note]

thermostat housing

see illustration: 121-009

[Name] [Note]

Coolant pump housing

see illustration: 121-009

[Name] [QTY]

Coolant hose 1

[Name] [Note]

Coolant hose

see illustration: 121-040

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X

[Name] [Note] [QTY]

Spring band clamp 46X12 X

[Name] [Note] [QTY]

Spring band clamp 55X12 X

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [Note] [QTY]

Additional coolant pump right 1

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black 0,5 X

[Name] [Note] [QTY]

self-tapping screw 3,5X12 3

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1
