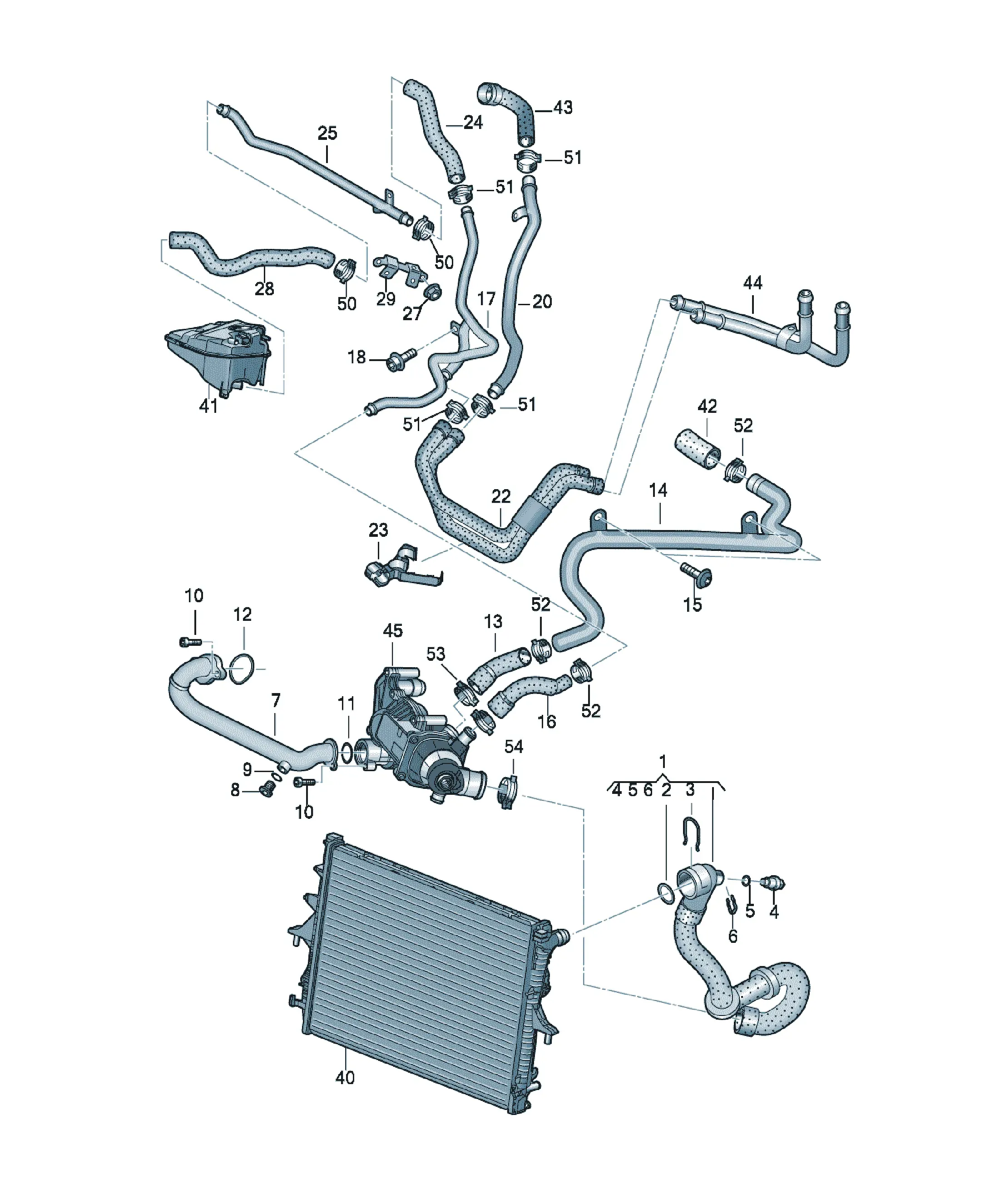

Cooling system

[Name] [Note] [QTY]

Cable ties 4,6X193 1

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 3

[Name] [Note] [QTY]

O-ring 28X4,5 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant pipe left 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M6X15 X

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [QTY]

Coolant pipe 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Bracket 18X22X22 1

[Name] [Note] [QTY]

Coolant hose 1

contained in: 7L6 121 070 BE

[Name] [QTY]

Coolant pipe with coolant hose 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M6 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

retaining spring 38MM 2

[Name] [Note] [QTY]

Coolant temperature sender 2 pin 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note]

Cooler for coolant

see illustration: 121-070

[Name] [Note]

Reservoir

see illustration: 121-070

[Name] [Note]

Coolant hose

see illustration: 121-035

[Name] [Note]

Coolant hose

see illustration: 121-035

[Name] [Note]

Coolant pipe

see illustration: 819-019

[Name] [Note]

Coolant pump

see illustration: 121-008

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 35X12 X

[Name] [Note] [QTY]

Spring band clamp 47X12 X

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

Coolant pipe front 1

Items supplied

flange 2

Pipe 25X2 1

Threaded bush 1

N 0138115 seal ring 10X13,5 1

N 91119401 sealing plug M10X1X10 1

Alternative installation: N 016 024 3

Potential individual parts

N 91119401 sealing plug M10X1X10 1

or

N 0160243 sealing plug M10X1 1

[Name] [Note] [QTY]

sealing plug M10X1X10 1

Alternative installation: N 016 024 3

[Name] [Note] [QTY]

seal ring 10X13,5 1
