Cooling system pump and components

Cooling system

Assembly diagrams

18 diagrams

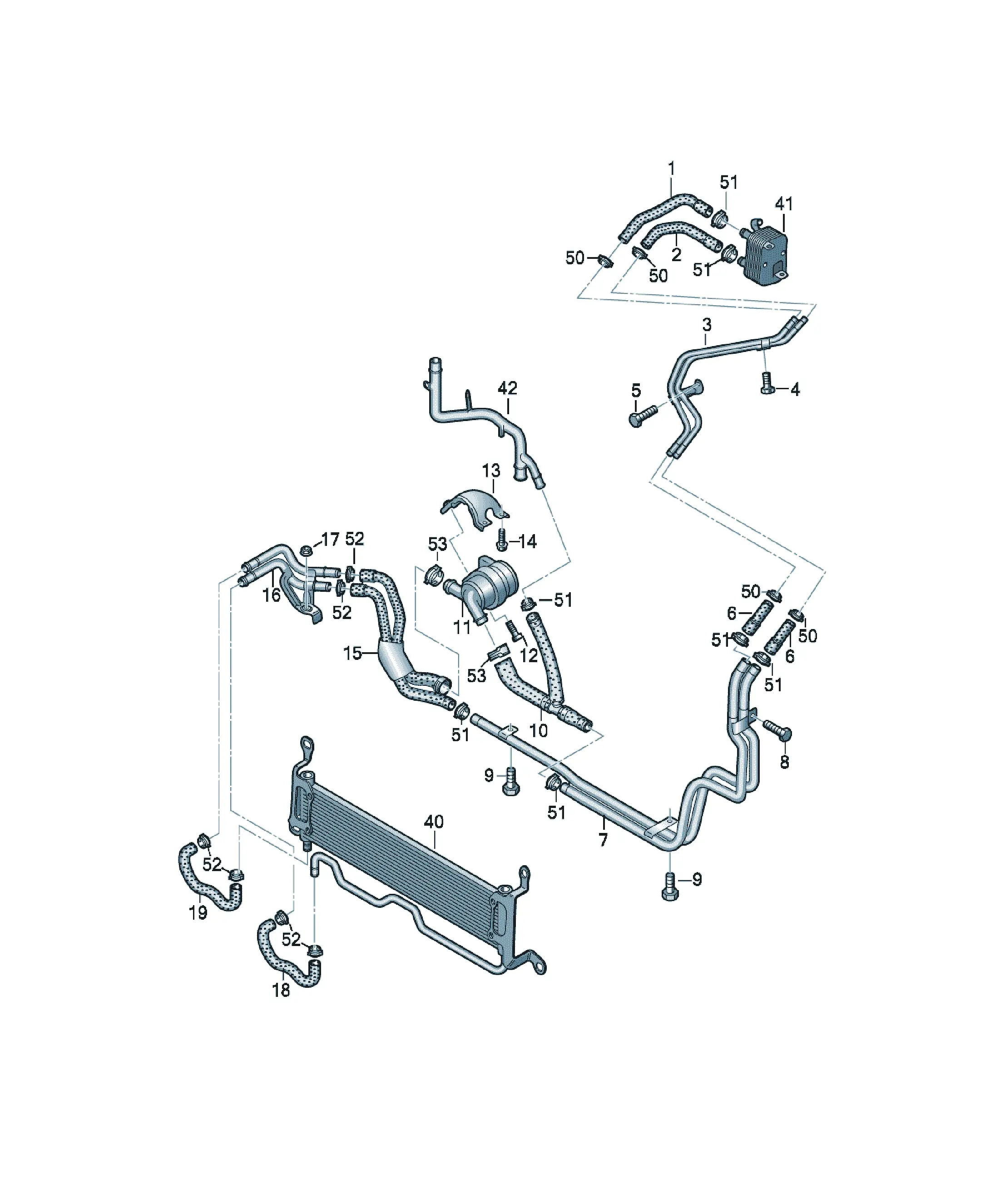

Cooling system diagram

Parts

27 parts

4L0121058A Offers

[Name] [QTY]
Coolant hose 1
4L0121030 Offers

[Name] [QTY]
Coolant hose 1
D >> - 24.08.2009*
Replacements: 4L0121030A
4L0121030A Offers

[Name] [QTY]
Coolant hose 1
D - 24.08.2009>>*
4L0965561 Offers

[Name] [Note] [QTY]
Additional coolant pump lower front 1
N10653601 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt M6X20 1
4L0121093A Offers

[Name] [Note] [QTY]
Bracket for additional coolant pump lower front 1
N90071102 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X18 1
4L0121086 Offers

[Name] [Note] [QTY]
Coolant hose feed/return 1
4L0121064 Offers

[Name] [Note] [QTY]
Coolant pipe feed/return 1
N01508210 Offers

[Name] [Note] [QTY]
Hexagon collar nut M6 1
4L0121060A Offers

[Name] [QTY]
Coolant hose 1
4L0121059A Offers

[Name] [QTY]
Coolant hose 1
4L0121057 Offers

[Name] [QTY]
Coolant hose 1
4L0122483 Offers

[Name] [Note] [QTY]
Coolant pipe feed/return 1
N10005306 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X12 1
[Name] [Note]
Additional cooler for coolant
see illustration: 121-072
[Name] [Note]
fuel cooler
see illustration: 127-060
[Name] [Note]
Coolant pipe
see illustration: 121-041
N90071102 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X18 1
N90770201 Offers

[Name] [Note] [QTY]
Spring band clamp 17X12 X
N90926401 Offers

[Name] [Note] [QTY]
Spring band clamp 19X12 X
N90686901 Offers

[Name] [Note] [QTY]
Spring band clamp 23X12 X
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 X
4L0121109 Offers

[Name] [QTY]
Coolant hose 1
4L0121071 Offers

[Name] [Note] [QTY]
Coolant pipe feed/return 1
N90071102 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X18 1
N10063604 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X25 2
