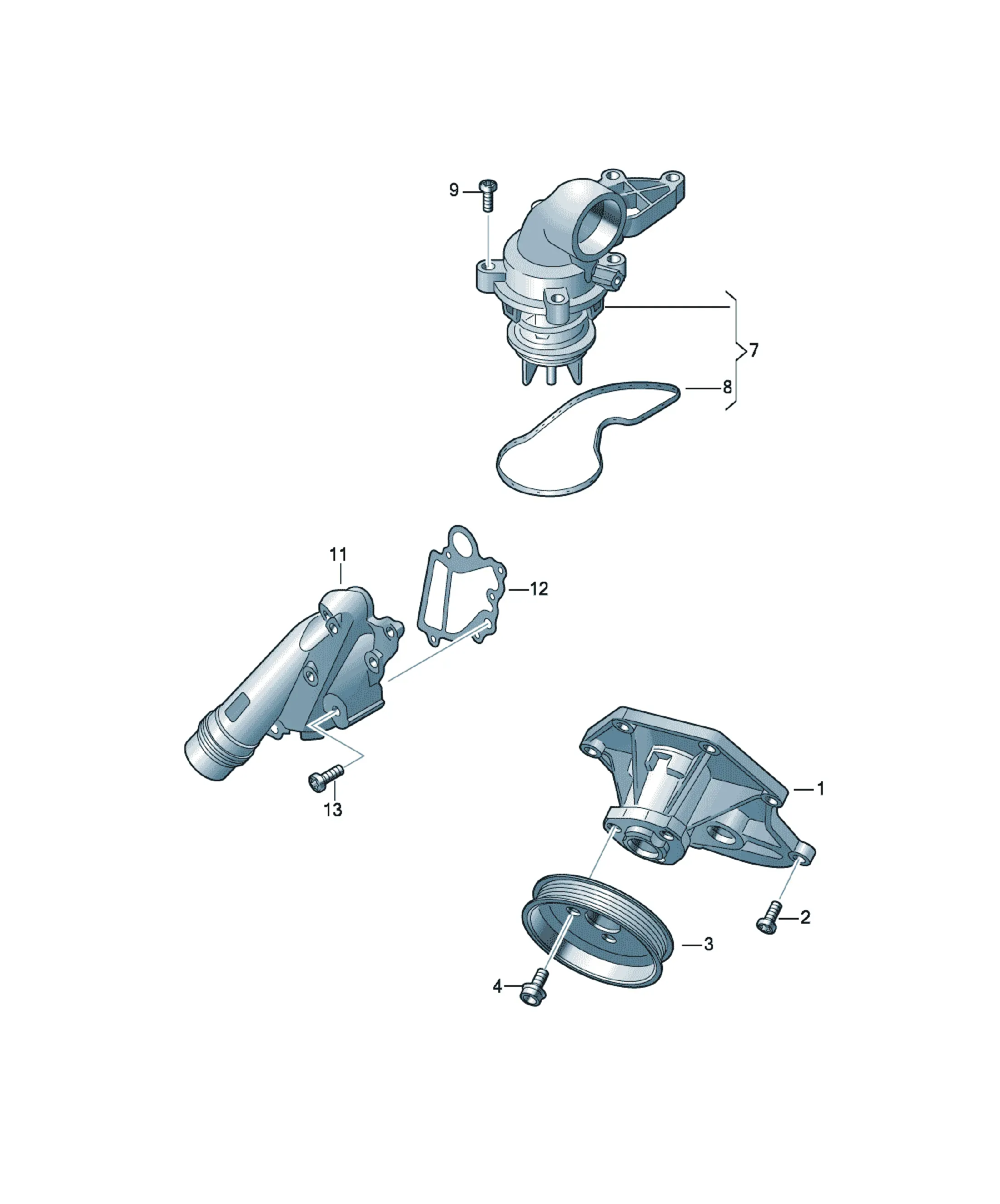

Water pump and thermostat

[Name] [Note] [QTY]

Coolant pump with glued in sealing ring aluminium 1

Replacements: 06E121018DX

Old part

06E121005D Coolant pump with glued in sealing ring 1

06E121005F Coolant pump with glued in sealing ring 1

06E121005N Coolant pump with glued in sealing ring 1

06E121008N Coolant pump with glued in sealing ring 1

06E121018A Coolant pump with glued in sealing ring 1

[Name] [Note] [QTY]

Coolant pump with glued in sealing ring aluminium 1

Exchange program parts: 06E121018AX

Replacements: 06E121018D

[Name] [Note] [QTY]

Cover with connector union aluminium 1

Replacements: 06E121161AQ

[Name] [QTY]

Moulded seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X25 7

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X25 7

[Name] [QTY]

v-belt pulley 1

Replacements: 06E121031D

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X12 3

[Name] [QTY]

Coolant regulator 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X28 7
