Cooling system pump and components

Cooling system

Assembly diagrams

18 diagrams

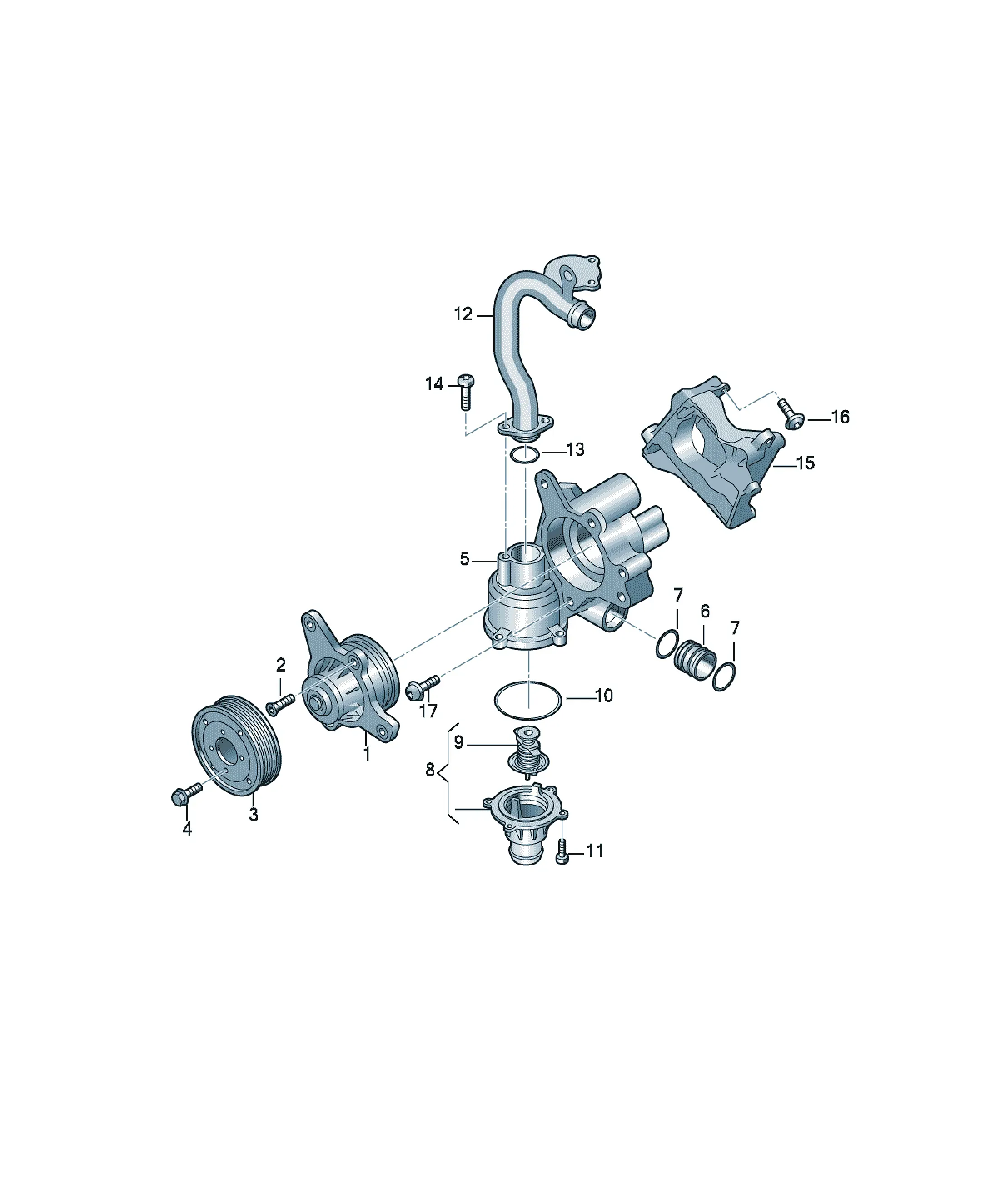

Cooling system diagram

Parts

16 parts

05A121008B Offers

[Name] [QTY]
Coolant pump with glued in sealing ring 1
05A121119 Offers

[Name] [Note] [QTY]
seal ring 78,9X3,5 1
N01470421 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M6X20 4
05A121083B Offers

[Name] [Note] [QTY]
Coolant pipe center 1
Replacements: 05A121083C
WHT001315A Offers

[Name] [Note] [QTY]
O-ring 28X2,5 1
N10451405 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16 2
05A121079E Offers

[Name] [QTY]
flange 1
N91048901 Offers

[Name] [Note] [QTY]
Hex socket head collared bolt M8X28-TC 2
N91111401 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head (Kombi) M8X68 3
N10531402 Offers

[Name] [Note] [QTY]
oval head countersunk bolt with multi-point socket head M8X25 4
05A121031 Offers

[Name] [QTY]
v-belt pulley 1
N10005306 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X12 4
05A121037B Offers

[Name] [QTY]
Coolant pump housing 1
05A121050A Offers

[Name] [QTY]
Coolant pipe 1
N91008501 Offers

[Name] [Note] [QTY]
O-ring 35X3 2
05A121114E Offers

[Name] [QTY]
Coolant regulator housing with thermostat 1
