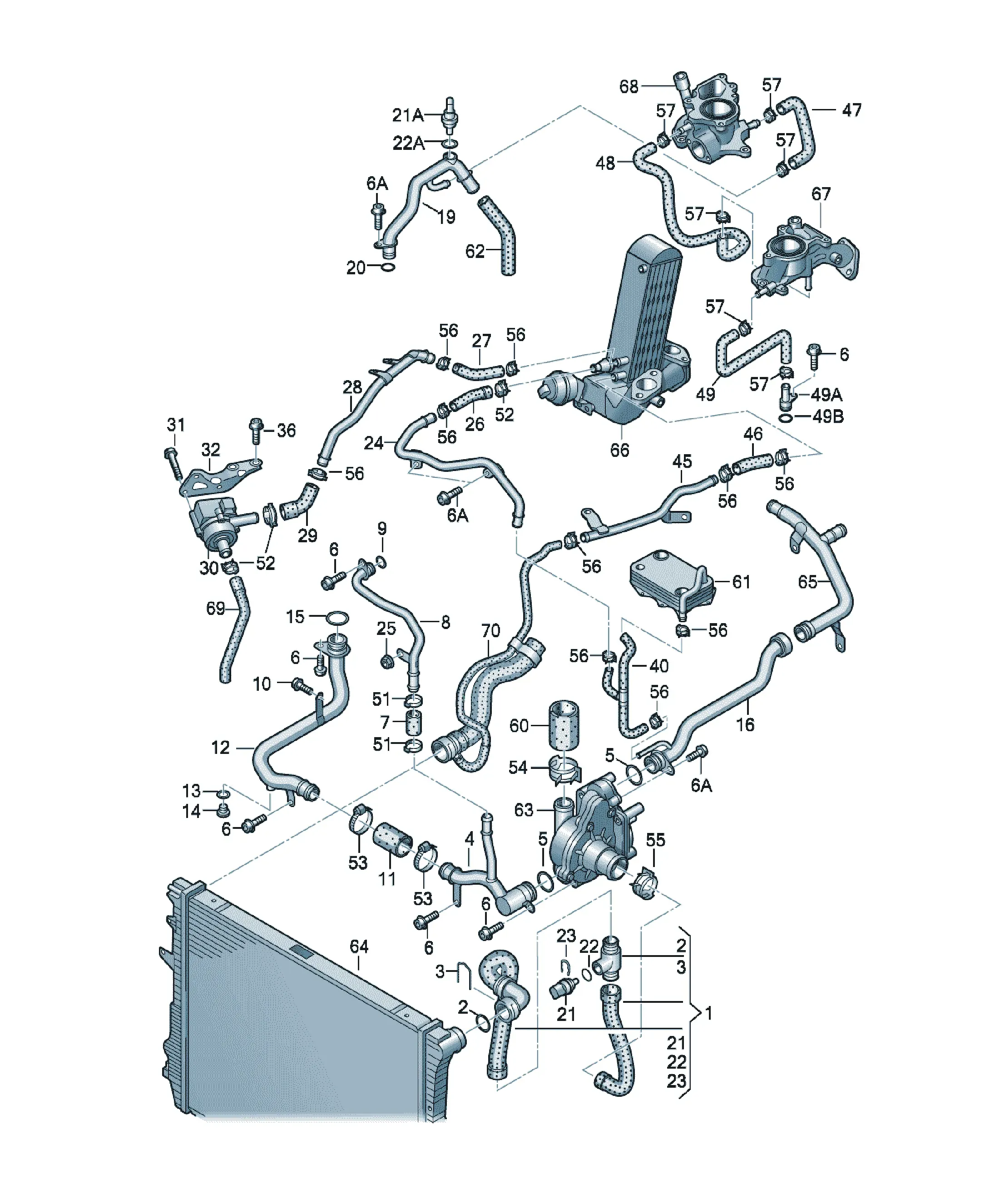

Cooling system pump and components

Cooling system

Assembly diagrams

18 diagrams

Parts

67 parts

7L8122051B Offers

[Name] [QTY]
Coolant hose with quick release coupling 1
D >> - 12.07.2010
Items supplied
7L8122291 Adapter 1
Hose 2
clamping ring 3
7L8121115 thermostat housing 1
Potential individual parts
WHT009139 O-ring 38X4 1
06A919501A Coolant temperature sender 1
N 90316801 O-ring 19,6X3,65 1
025121142 retaining spring 1
7L8122051C Offers

[Name] [Note] [QTY]
Coolant hose with quick release coupling 1
Item/items not included:
21-23
D - 12.07.2010>>
Items supplied
7L8122291 Adapter 1
Hose 1
clamping ring 1
Potential individual parts
WHT009139 O-ring 38X4 1
N10170303 Offers

[Name] [Note] [QTY]
round hd. screw M6X10 1
079121102B Offers

[Name] [QTY]
Coolant hose 1
057121169F Offers

[Name] [QTY]
Coolant pipe 1
D >> - 17.05.2010
Replacements: 057121169Q
057121169N Offers

[Name] [QTY]
Coolant pipe 1
D - 17.05.2010>>
Replacements: 057121169P
N0138115 Offers

[Name] [Note] [QTY]
seal ring 10X13,5 1
N91119401 Offers

[Name] [Note] [QTY]
sealing plug M10X1X10 1
N91008501 Offers

[Name] [Note] [QTY]
O-ring 35X3 1
057121075AK Offers

[Name] [QTY]
Coolant pipe 1
D >> - 17.05.2010
057121075AP Offers

[Name] [QTY]
Coolant pipe 1
D - 17.05.2010>>
057121131B Offers

[Name] [QTY]
Coolant pipe 1
4E0121666 Offers

[Name] [Note] [QTY]
O-ring 38X4 1
N91008401 Offers

[Name] [Note] [QTY]
O-ring 19,6X3 1
06A919501A Offers

[Name] [Note] [QTY]
Coolant temperature sender 2 pin 1
D >> - 12.07.2010
Replacements: 05C919501
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
059919523A Offers

[Name] [Note] [QTY]
Temperature sensor 2 pin 1
Replacements: 059919523F
mating connector
07P973702 Flat contact housing with contact locking mechanism 2 pin 1
black/yellow
Connection piece
thermostat
4H0973702A Flat contact housing 2 pin 1
Connection piece black
thermostat
N90316801 Offers

[Name] [Note] [QTY]
O-ring 19,6X3,65 1
D >> - 12.07.2010
WHT002287B Offers

[Name] [Note] [QTY]
O-ring 5,6X2 1
032121142 Offers

[Name] [QTY]
retaining spring 1
D >> - 12.07.2010
057121163C Offers

[Name] [QTY]
Coolant pipe 1
N01508210 Offers

[Name] [Note] [QTY]
Hexagon collar nut M6 1
057121103J Offers

[Name] [QTY]
Coolant hose 1
057121052B Offers

[Name] [QTY]
Coolant hose 1
057121064B Offers

[Name] [QTY]
Coolant pipe 1
D >> - 17.05.2010
057121064E Offers

[Name] [QTY]
Coolant pipe 1
D - 17.05.2010>>
057121104A Offers

[Name] [QTY]
Coolant hose 1
4E0121142 Offers

[Name] [Note] [QTY]
retaining spring 38MM 1
059121012A Offers

[Name] [QTY]
Additional coolant pump 1
mating connector
4H0973703 Flat contact housing with contact locking mechanism 3 pin 1
black 0,5 X
WHT002306 Offers

[Name] [Note] [QTY]
self-tapping screw 3,5X12 3
057121079B Offers

[Name] [QTY]
Bracket for additional coolant pump 1
N10414402 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M8X28 2
057121481Q Offers

[Name] [QTY]
Coolant pipe 1
D - 17.05.2010>>
Replacements: 057121481T
057121481G Offers

[Name] [QTY]
Coolant pipe 1
D >> - 17.05.2010
Replacements: 057121481AA
057121105D Offers

[Name] [QTY]
Coolant hose 1
(Coolant pipe > oil cooler)
057121507G Offers

[Name] [QTY]
Coolant pipe 1
057121057C Offers

[Name] [QTY]
Coolant hose 1
057121061E Offers

[Name] [QTY]
Coolant hose 1
057121058A Offers

[Name] [QTY]
Coolant hose 1
057121177 Offers

[Name] [QTY]
Coolant hose 1
059121065AB Offers

[Name] [QTY]
Pipe union 1
Replacements: 059121065DS
N90452003 Offers

[Name] [Note] [QTY]
O-ring 11X3 1
N90806302 Offers

[Name] [Note] [QTY]
O-ring 28X3,5 2
N10202001 Offers

[Name] [Note] [QTY]
Ear crimp hose clamp 24,1X7X0,60 X
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 X
N10518701 Offers

[Name] [Note] [QTY]
Clamp 35-50X12 X
N90687201 Offers

[Name] [Note] [QTY]
Spring band clamp 40X12 X
N10557301 Offers

[Name] [Note] [QTY]
Ear crimp hose clamp 41,0X7X0,60 X
N90926501 Offers

[Name] [Note] [QTY]
Spring band clamp 47X12 X
N90686902 Offers

[Name] [Note] [QTY]
Spring band clamp 23X12 X
N90686701 Offers

[Name] [Note] [QTY]
Spring band clamp 14X12 X
N10405604 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X14 X
[Name] [Note]
Coolant hose
see illustration: 121-030
[Name] [Note]
Oil cooler
see illustration: 115-030
[Name] [Note]
Coolant hose
see illustration: 121-032
[Name] [Note]
Coolant pump
see illustration: 121-004
[Name] [Note]
Cooler for coolant
see illustration: 121-070
[Name] [Note]
Coolant pipe
see illustration: 121-032
[Name] [Note]
Cooler for exhaust recuperation
see illustration: 131-012
[Name] [Note]
Intermediate flange right
see illustration: 131-012
[Name] [Note]
Intermediate flange left
see illustration: 131-012
[Name] [Note]
Coolant hose left
see illustration: 121-030
N10451408 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16 X
057121055E Offers

[Name] [QTY]
Coolant hose 1
D - 17.05.2010>>
057121055D Offers

[Name] [QTY]
Coolant hose 1
D >> - 17.05.2010
[Name] [Note]
Coolant hose left
see illustration: 121-030
057121083S Offers

[Name] [QTY]
Coolant pipe 1
N91008401 Offers

[Name] [Note] [QTY]
O-ring 19,6X3 1
