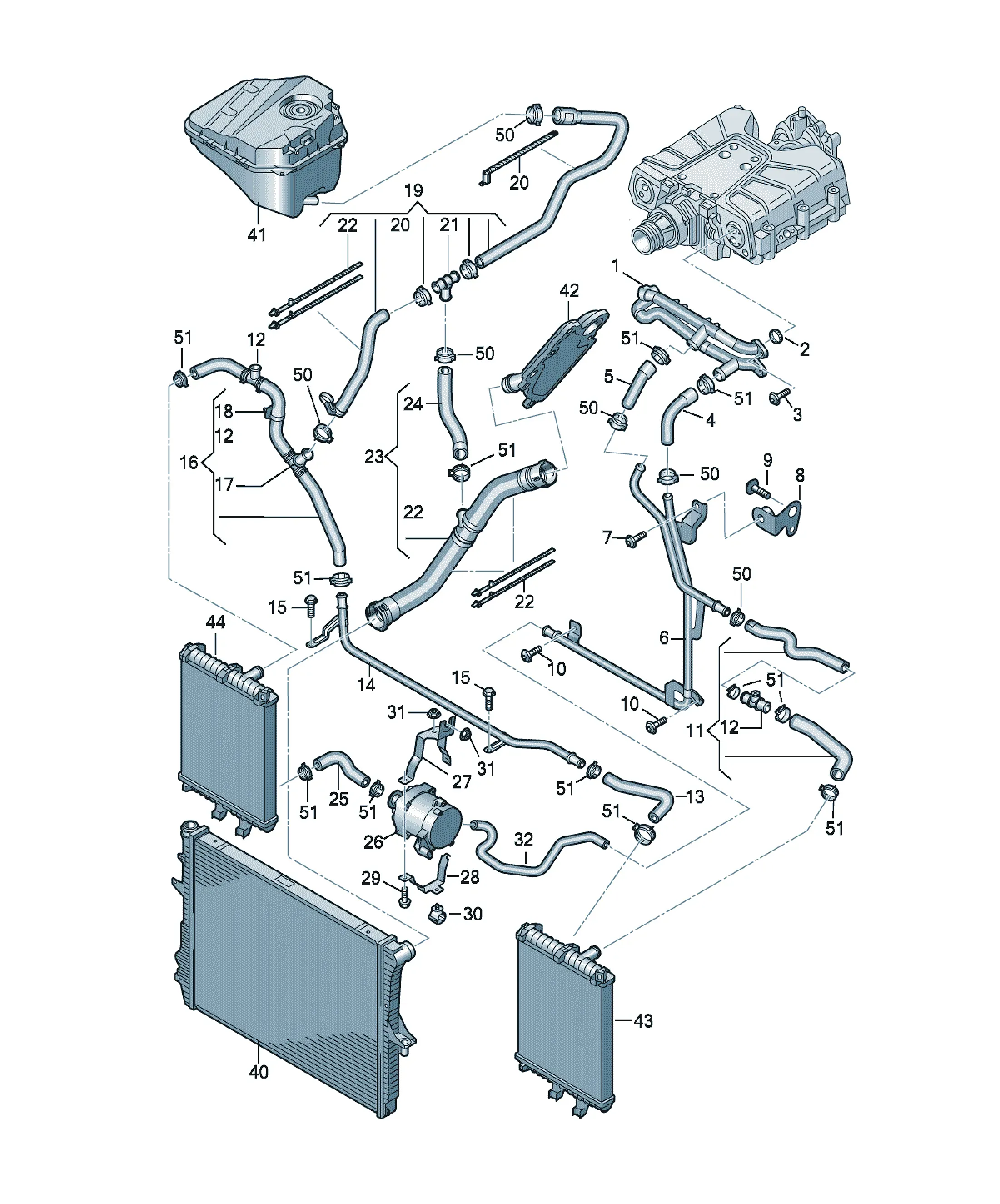

Cooling system

[Name] [QTY]

Stop buffer 1

[Name] [Note] [QTY]

Coolant pipe upper 1

Replacements: 06E121083J

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 4

[Name] [Note] [QTY]

Coolant hose left upper 1

[Name] [Note] [QTY]

connection piece 20 2

[Name] [Note] [QTY]

Coolant hose left lower 1

[Name] [Note] [QTY]

Coolant pipe lower centre 1

[Name] [Note] [QTY]

Hex collared bolt M6X12 1

[Name] [Note] [QTY]

Coolant hose right upper 1

[Name] [Note] [QTY]

t-piece 20X16X20 1

[Name] [Note] [QTY]

Bracket 6,5X26 1

[Name] [Note] [QTY]

Coolant hose right outer 1

[Name] [Note] [QTY]

seal ring 4

only for: 06E 121 083 A

Replacements: 06E121119J

[Name] [Note] [QTY]

Cable ties 9,0X119 1

[Name] [Note] [QTY]

t-piece 16X16X16 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

Coolant hose with quick release coupling right lower 1

Replacements: 4L0121051B

[Name] [Note] [QTY]

Coolant hose right 1

[Name] [Note] [QTY]

Coolant hose right lower 1

[Name] [Note] [QTY]

Coolant pump 1

contains: 4F0 133 567

Items supplied

8K0965569 Coolant pump 1

4F0133567 Stop buffer 1

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Bracket for additional coolant pump right lower 1

[Name] [Note] [QTY]

Bracket for additional coolant pump right lower 1

[Name] [Note] [QTY]

Hex collared bolt M6X17 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M5X20 6

[Name] [QTY]

Clip 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M6 2

[Name] [Note] [QTY]

Coolant hose right lower 1

[Name] [QTY]

Coolant hose 1

[Name] [Note]

Cooler for coolant

see illustration: 121-071

[Name] [Note]

Reservoir

see illustration: 121-071

[Name] [Note]

Cover with connector union

see illustration: 121-010

[Name] [Note]

Additional cooler for coolant left

see illustration: 121-071

[Name] [Note]

Additional cooler for coolant right

see illustration: 121-071

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Coolant pipe feed/return 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X14 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X20 1
