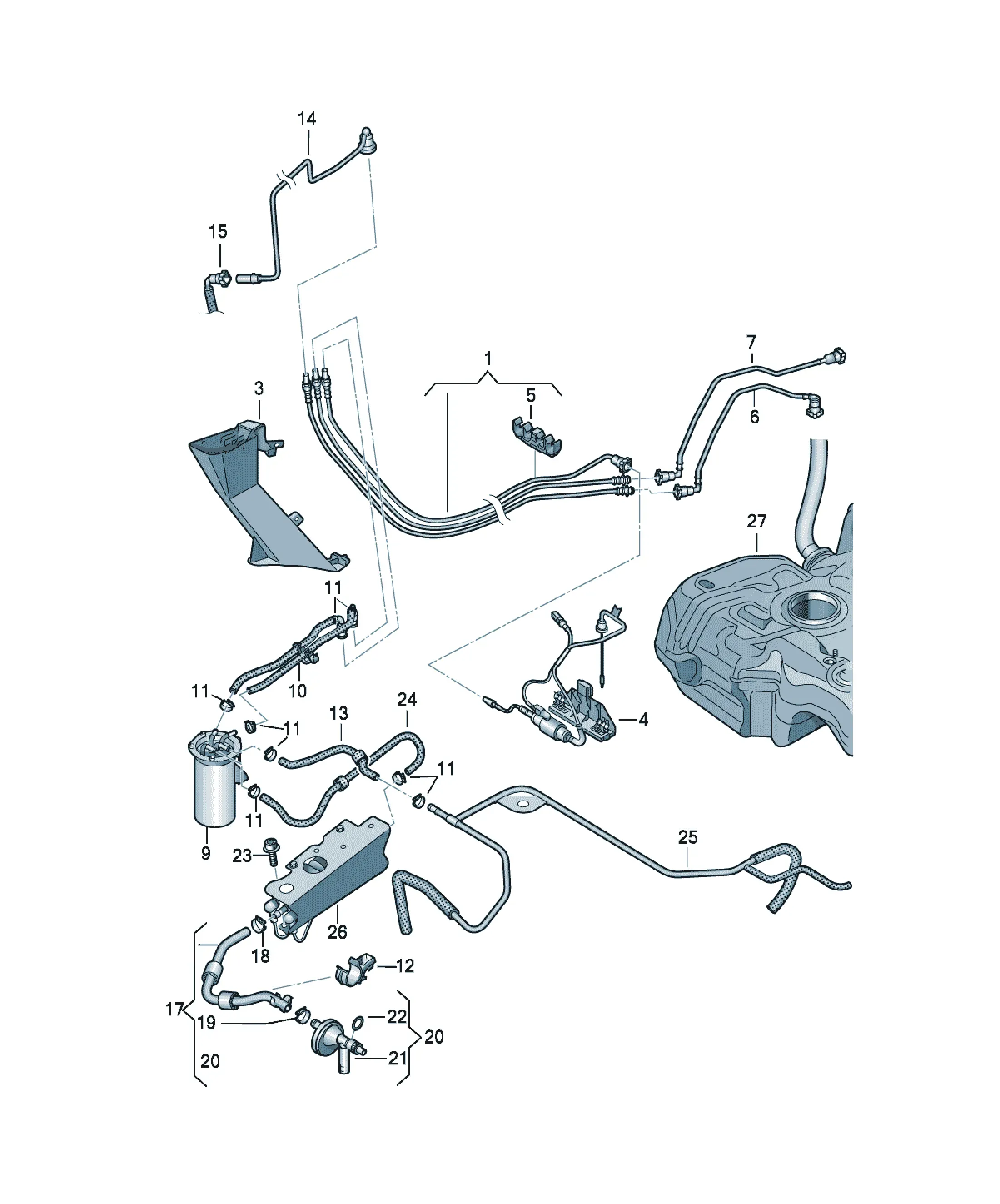

Fuel line

[Name] [Note] [QTY]

1 set of fuel lines feed/return 1

Replacements: 5N0200059CE

[Name] [Note] [QTY]

1 set of fuel lines feed/return 1

for vehicles with auxiliary heater

Replacements: 5N0200059CF

[Name] [Note] [QTY]

Fuel hose feed/return 1

[Name] [Note] [QTY]

Spring band clamp 14X12 X

[Name] [QTY]

Retaining clip 1

[Name] [Note] [Model info] [QTY]

fuel pipe feed CFFB,CFFA, 1

CFFD,CFGB

Replacements: 1K0130307CA

[Name] [Note] [Model info] [QTY]

fuel pipe feed CBAA,CBAB, 1

CBBB,CBBA

[Name] [QTY]

Fuel line 1

for vehicles with auxiliary heater

[Name] [QTY]

Fuel line 1

for vehicles with auxiliary heater

[Name] [QTY]

Fuel hose with temperature sender 1

Replacements: 1K0130307CC

[Name] [Note] [QTY]

Spring band clamp 14,5X12 X

[Name] [Note] [QTY]

Spring band clamp 16X12 1

[Name] [QTY]

Temperature sensor 1

mating connector

4H0973702A Flat contact housing 2 pin 1

black

[Name] [Note]

Adapter

Included in position: 20

[Name] [Note]

O-ring

Included in position: 20

[Name] [Note] [QTY]

Hexagon flange screw M6X10 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X20 2

[Name] [QTY]

fuel pipe 1

[Name] [Note] [Model info] [QTY]

Fuel line CBAA,CBAB, 1

see illustration, item: 130-040,34 CBBB,CBBA 1

[Name] [Note] [Model info] [QTY]

Fuel line CFFB,CFFA, 1

see illustration, item: 130-030,26 CFFD,CFGB

[Name] [QTY]

Fuel pump 1

with:

retaining plate for boot

sound absorber for pump

[Name] [Note]

Fuel tank

see illustration, item: 201-005,1A

[Name] [QTY]

Cover 1

[Name] [QTY]

Extraction unit with metering pump 1

for vehicles with auxiliary heater

[Name] [Note] [QTY]

Clip 4 point X

[Name] [Note] [QTY]

Fuel line feed 1

[Name] [Note] [QTY]

Fuel line return 1

[Name] [Note]

Fuel filter

see illustration, item: 127-020,1
