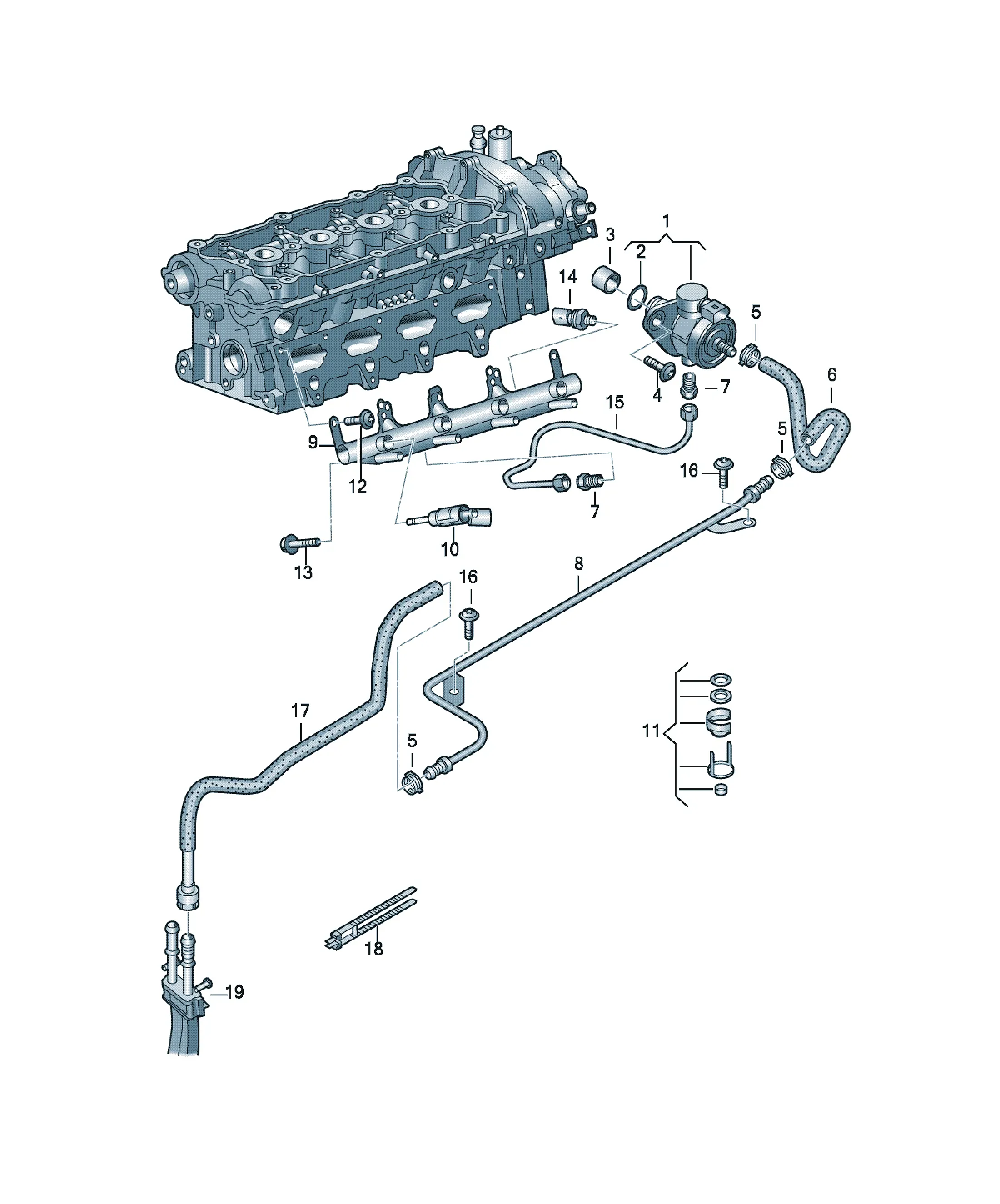

Fuel system

[Name] [QTY]

Connector union 1

[Name] [Note] [QTY]

Fuel pump 1

also use: 06E 127 065 D 1

06J 127 501 M 1

06J 127 065 B 1

Accompanying details: 06E127065D; 06J127501M; 06J127065B

Replacements: 06H127025Q

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [QTY]

Injection valve 4

Replacements: 06H906036P

mating connector

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

[Name] [QTY]

repair kit for valve unit 4

Replacements: 06J998907D

repair set

06J133036B Support element 1

06H906189B Intermediate ring 1

06H998907A repair kit for valve unit 1

fitting instructions 1

[Name] [Note] [QTY]

oval hd. self-tapp fitt. screw 6X16-Q 2

[Name] [Note]

see illustration, item: 133-030,10

[Name] [QTY]

Pressure sensor 1

Replacements: 06J906054B

mating connector

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Fuel line 1

use if required: 06J 127 065 A 2

Accompanying details: 06J127065A

Replacements: 06J127501M; 06J127065B

[Name] [Note] [QTY]

oval hd. self-tapp fitt. screw 6X16 2

[Name] [QTY]

Fuel hose 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note]

Fuel line (pipe) with breather line (pipe)

see illustration, item: 201-040,1

[Name] [Note] [QTY]

O-ring 31X2 1

Replacements: WHT005184

[Name] [QTY]

Tappets 1

Replacements: 06L109311

[Name] [Note] [QTY]

Hexagon socket head bolt M6X22 2

[Name] [Note] [QTY]

Spring band clamp 14,5X12 X

[Name] [QTY]

Fuel hose 1

[Name] [Note] [QTY]

Adapter 2

only for: 06J 127 501 F

Replacements: 03C127065C

[Name] [Note] [QTY]

Adapter 1

only for: 06J 127 501 M

[Name] [Note] [QTY]

Adapter 1

only for: 06J 127 025 N

Replacements: 06E127065G

[Name] [QTY]

Fuel line 1

[Name] [QTY]

Fuel rail 1

Replacements: 06J198510C
