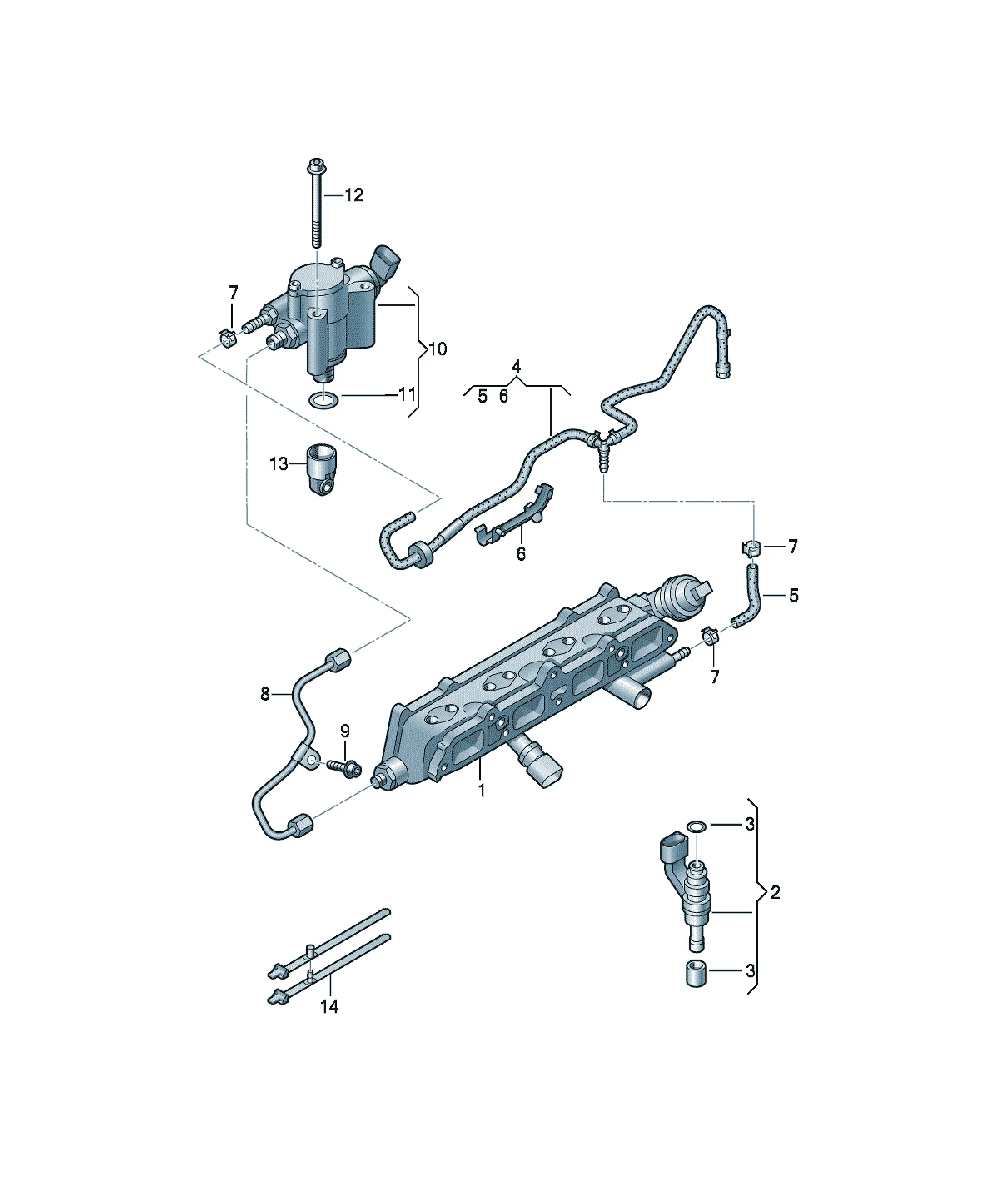

Fuel rail

[Name] [Note] [Model info]

intake manifold - lower part

see illustration, item: 133-020,5 CAVA

[Name] [Note] [Model info]

intake manifold - lower part

see illustration, item: 133-015,2 BWK

[Name] [Model info] [QTY]

Fuel pump PR:G0L 1

D >> - 20.10.2008

mating connector

4D0971992A Flat connector housing with contact locking mechanism 2 pin 1

black/blue

[Name] [QTY]

Fuel pump 1

D - 21.10.2008>>

Replacements: 03C127026J

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

optional:

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

[Name] [Model info] [QTY]

Fuel pump PR:G0K 1

D >> - 20.10.2008

Replacements: 03C127026J

mating connector

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

optional:

07P973702 Flat contact housing with contact locking mechanism 2 pin 1

black/yellow

[Name] [Note] [QTY]

O-ring 31X2 1

[Name] [Note] [QTY]

Screw with int. serrations M8X20 2

D - 21.10.2008>>

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X65 3

D >> - 20.10.2008

[Name] [QTY]

Tappets 1

D - 21.10.2008>>

Replacements: 06L109311

[Name] [QTY]

Tappets 1

D >> - 20.10.2008

[Name] [QTY]

double cable tie X

[Name] [Model info] [QTY]

Injection valve BWK 4

[Name] [Model info] [QTY]

Injection valve CAVA 4

Replacements: 03C906036M

mating connector

4D0971992 Flat connector housing with contact locking mechanism 2 pin 1

black/violet

[Name] [QTY]

Gasket set for injector valve 4

repair set

O-ring 7,51X3,53 1

seal ring 1

support washer 1

Spring clip 1

[Name] [Note] [QTY]

Fuel hose feed 1

D - 08.09.2009>>

Replacements: 03C133723BR

[Name] [Note] [QTY]

Fuel hose feed 1

D - 03.11.2008>> - 07.09.2009

Replacements: 03C133723BB

[Name] [Note] [QTY]

Fuel line feed/return 1

D - 15.04.2008>> - 03.11.2008

[Name] [Note] [QTY]

Fuel line feed/return 1

D >> - 14.04.2008

Replacements: 03C133679BC

[Name] [Note] [QTY]

Fuel line return 1

D >> - 03.11.2008

[Name] [QTY]

bracket for fuel hose 1

Replacements: 03C133248E

[Name] [Note] [QTY]

Spring band clamp 14,5X12 X

[Name] [QTY]

pressure pipe 1

D - 21.10.2008>>

Replacements: 03C130241AP

[Name] [Model info] [QTY]

pressure pipe PR:G0L 1

D >> - 20.10.2008

[Name] [Model info] [QTY]

pressure pipe PR:G0K 1

D >> - 20.10.2008

Replacements: 03C130241AP

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1
