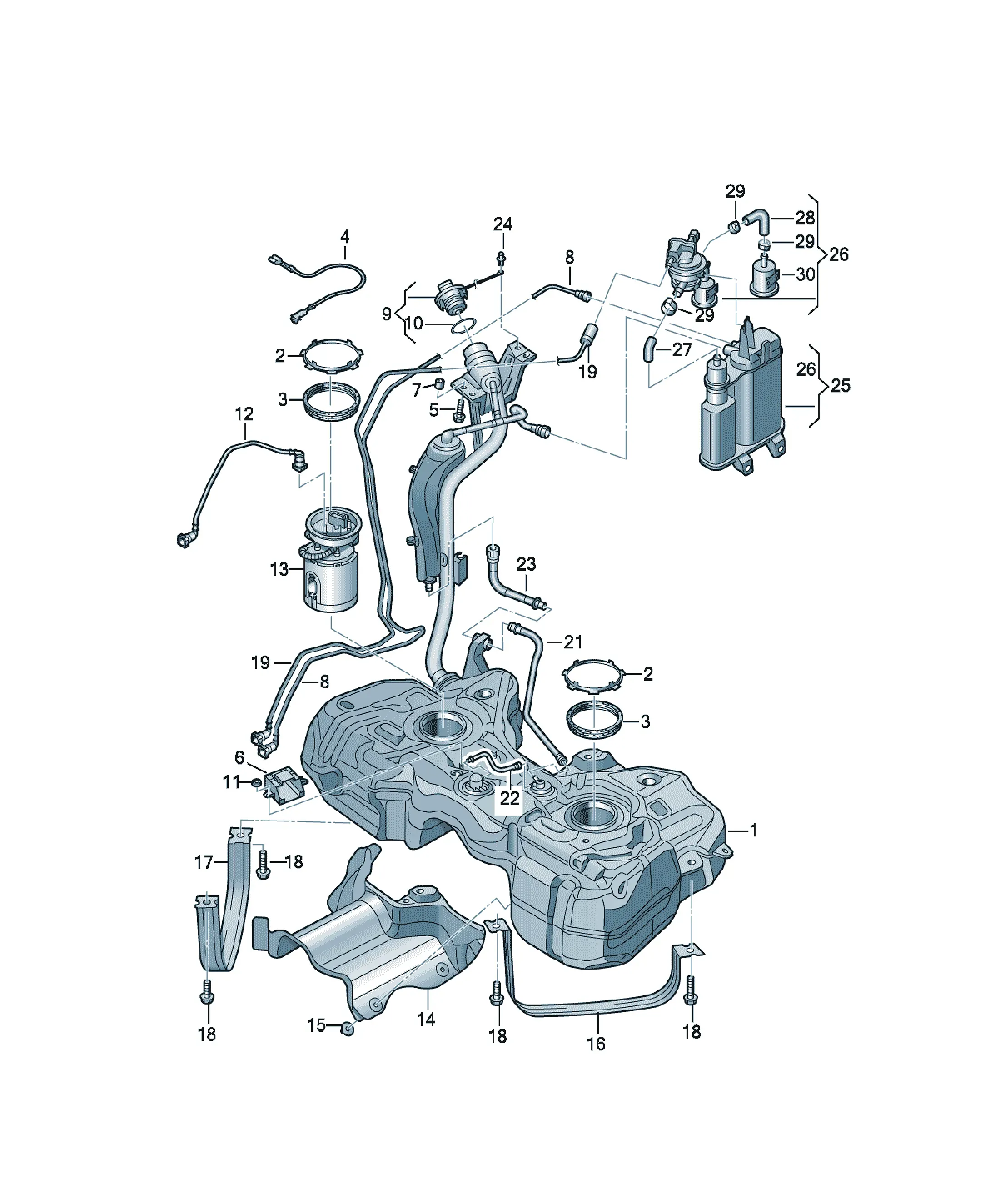

Fuel tank

[Name] [QTY]

Fuel tank 1

Replacements: 5N0201060AT

[Name] [QTY]

seal ring 2

[Name] [Note] [QTY]

Hexagon nut 5 2

[Name] [Note] [QTY]

Fuel line feed 1

Replacements: 5N0201293N

[Name] [Note]

Fuel delivery module

see illustration, item: 919-030,2

[Name] [Note]

Fuel filter with flange

see illustration, item: 919-030,1

[Name] [QTY]

Heat shield plate 1

[Name] [Note] [QTY]

panel nut M5 4

[Name] [Note] [QTY]

tensioning strap left 1

Replacements: 5N0201655A

[Name] [Note] [QTY]

tensioning strap right 1

Replacements: 5N0201656A

[Name] [Note] [QTY]

Hex collared bolt M8X32 X

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X25 X

[Name] [QTY]

Vacuum pipe 1

Replacements: 5N0201983C

[Name] [QTY]

Union nut 2

[Name]

Breather line

No replacement part

[Name]

Fuel line

No replacement part

[Name] [QTY]

Breather line 1

Replacements: 5N0201993S

[Name] [QTY]

Clip 1

[Name] [QTY]

Active charcoal filter with diagnosis pump for fuel delivery system 1

[Name] [QTY]

diagnosis pump for fuel system 1

[Name] [QTY]

Vent hose 1

[Name] [Note]

Hose

Included in position: 26

[Name] [Note] [QTY]

Clamp 22,6X7X0,6 1

[Name] [QTY]

seal ring 2

[Name] [QTY]

Filter for diagnosis pump 1

Replacements: 1C0906621A

[Name] [QTY]

Earth line 1

Items supplied

1J0201385 Connection cable 1

191201148 Gaiter 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X25 2

[Name] [QTY]

Retainer for control unit 1

[Name] [QTY]

spacer bush 2

[Name] [QTY]

Breather line 1

Replacements: 5N0201160J

[Name] [QTY]

cap with retaining strap for fuel tank 1

Replacements: 3C0201550N
