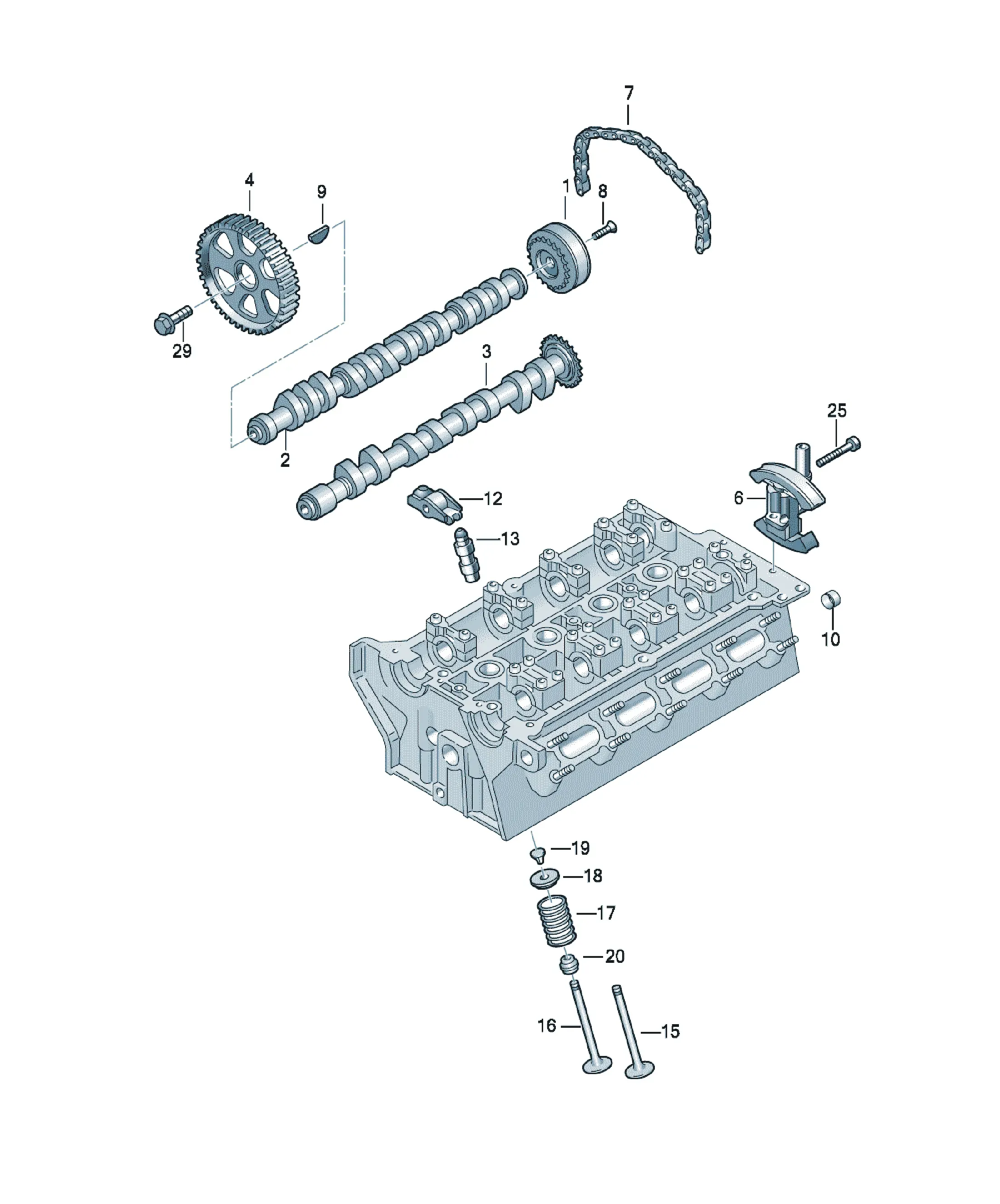

Camshaft and valve train

[Name] [QTY]

camshaft adjuster unit 1

[Name] [QTY]

Tappets 1

Replacements: 06D109309J

[Name] [QTY]

roller rocker arm 16

Replacements: 06E109417S

[Name] [QTY]

equalizing element, hydraulic 16

[Name] [QTY]

Inlet valve 8

[Name] [QTY]

exhaust valve 8

[Name] [QTY]

Valve spring

F >> 4F-7-155 500* 16

[Name] [QTY]

spring disc 16

[Name] [QTY]

cotter, split 32

[Name] [Note] [QTY]

Camshaft Outlet 1

Replacements: 06F109102E

[Name] [Note] [QTY]

Valve stem seal 6MM 16

use if required: 100 109 001 B X

Accompanying details: 100109001B

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X22 3

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X1X35 1

[Name] [Note] [QTY]

Camshaft Inlet 1

Replacements: 06F109101J

[Name] [QTY]

toothed belt pulley 1

[Name] [QTY]

chain tensioner 1

[Name] [QTY]

timing chain 1

[Name] [Note] [QTY]

countersunk multi-point socket head bolt M12X1,25X33 1

[Name] [Note] [QTY]

woodruff key 4X5 1
