Camshaft

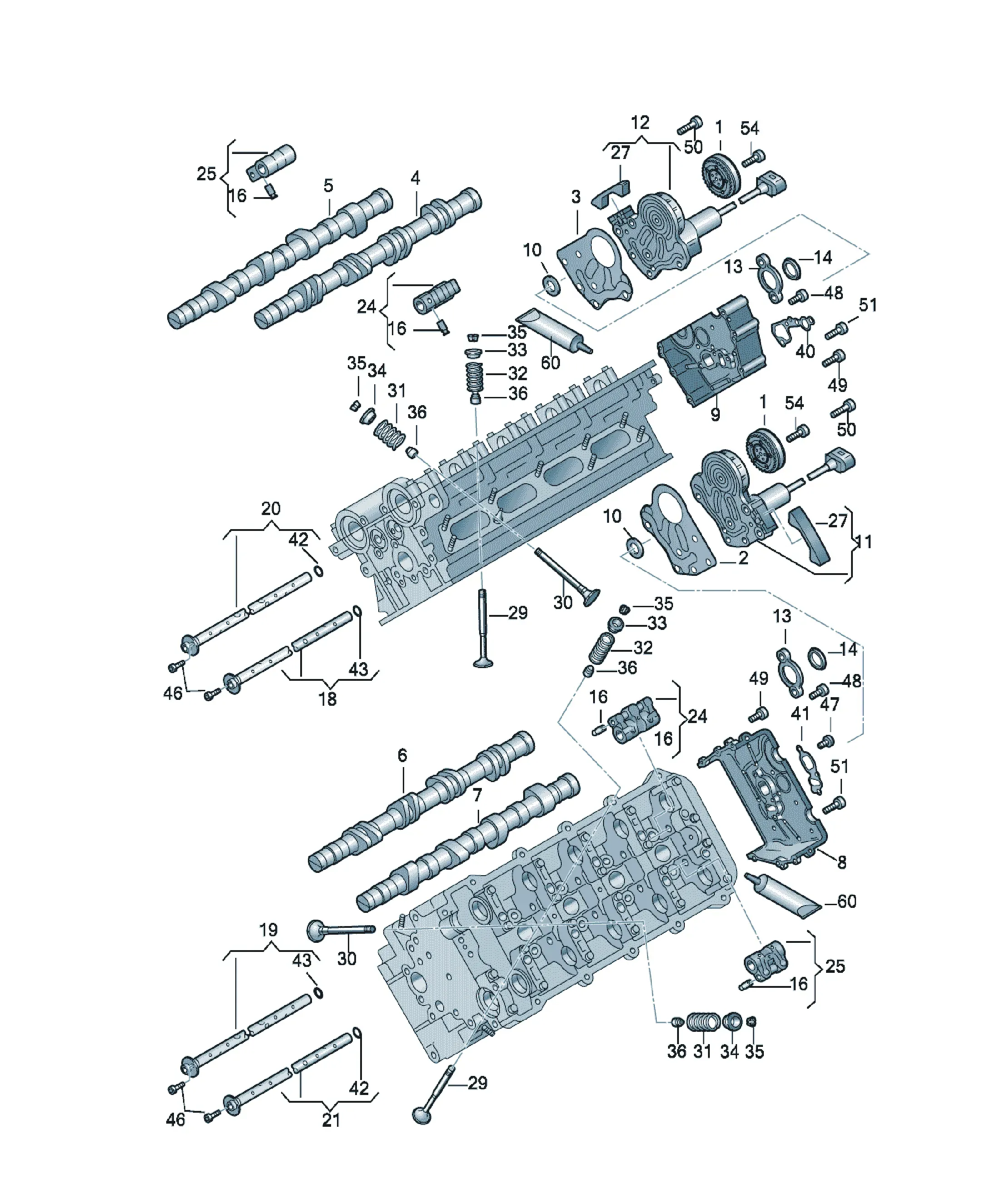

Valvetrain

Assembly diagrams

8 diagrams

Parts

43 parts
  • Mounting bushing
    100109001B Offers

    [Name] [Note] [QTY]

    Mounting sleeve 6X20 2

    red

  • 079109087M Offers

    [Name] [Note] [QTY]

    camshaft adjuster unit 2

    also use: 079 105 193 X

    Accompanying details: 079105193

  • 079105193 Offers

    [Name] [QTY]

    Disc (diamond coated) 2

  • 079109204L Offers

    [Name] [Note] [QTY]

    timing case Cylinder 5-8 1

    left

  • 079109210L Offers

    [Name] [Note] [QTY]

    timing case Cylinders 1-4 1

    right

  • 079109285E Offers

    [Name] [QTY]

    Cover 2

  • 079109293C Offers

    [Name] [QTY]

    seal ring 2

  • 077109320CB Offers

    [Name] [QTY]

    Compensating piece 40

  • 079109371D Offers

    [Name] [Note] [QTY]

    axle Inlet 1

    Cylinders 1-4

  • 079109371E Offers

    [Name] [Note] [QTY]

    axle Inlet 1

    Cylinder 5-8

  • 079109091B Offers

    [Name] [Note] [QTY]

    Seal Cylinder 5-8 1

  • 079109372D Offers

    [Name] [Note] [QTY]

    axle Outlet 1

    Cylinders 1-4

  • 079109372E Offers

    [Name] [Note] [QTY]

    axle Outlet 1

    Cylinder 5-8

  • 077109417N Offers

    [Name] [QTY]

    roller rocker arm 8

  • 077109417K Offers

    [Name] [QTY]

    roller rocker arm

    F 4F-5-030 001>>* 8

  • 079109513D Offers

    [Name] [QTY]

    slide rail 2

  • 077109601Q Offers

    [Name] [QTY]

    Inlet valve 24

  • 079109092B Offers

    [Name] [Note] [QTY]

    Seal Cylinders 1-4 1

  • 077109611S Offers

    [Name] [QTY]

    exhaust valve 16

  • 077109623C Offers

    [Name] [Note] [QTY]

    Valve spring outer 16

    for exhaust valve

  • 077109633F Offers

    [Name] [Note] [QTY]

    Valve spring inner 24

    for exhaust valve

  • 077109641G Offers

    [Name] [Note] [QTY]

    spring disc upper 24

    for intake valve

  • 077109641H Offers

    [Name] [Note] [QTY]

    spring disc upper 16

    for exhaust valve

  • 036109651A Offers

    [Name] [QTY]

    cotter, split 80

  • 036109675A Offers

    [Name] [Note] [QTY]

    Valve stem seal 6MM 40

    also use: 100 109 001 B X

    Accompanying details: 100109001B

  • 079109101BL Offers

    [Name] [Note] [QTY]

    Camshaft Inlet 1

    Cylinders 1-4

  • 079131120 Offers

    [Name] [Note] [QTY]

    Seal right 1

  • 079131120A Offers

    [Name] [Note] [QTY]

    Seal left 1

  • 077133287A Offers

    [Name] [QTY]

    seal ring 2

  • 077133287B Offers

    [Name] [QTY]

    seal ring 2

  • N10196103 Offers

    [Name] [Note] [QTY]

    Oval socket head bolt with hex drive M6X18 4

  • N10587401 Offers

    [Name] [Note] [QTY]

    round hd. screw M4X8 2

  • N10311403 Offers

    [Name] [Note] [QTY]

    Hexagon socket head bolt, self-locking M6X20 2

  • N10124306 Offers

    [Name] [Note] [QTY]

    Hexagon socket flat head bolt M6X20 8

  • 079109102AP Offers

    [Name] [Note] [QTY]

    Camshaft Outlet

    Cylinders 1-4

    F 4F-5-030 001>>* 1

  • N10156205 Offers

    [Name] [Note] [QTY]

    Oval hexagon socket head bolt M6X30 10

  • N10470703 Offers

    [Name] [Note] [QTY]

    round hd. screw M6X50 19

  • N91086201 Offers

    [Name] [Note] [QTY]

    Hex socket head collared bolt M12X1,25X125 2

  • 079109103AC Offers

    [Name] [Note] [QTY]

    Camshaft Inlet 1

    Cylinder 5-8

  • D176501A1 Offers

    [Name] [Note] [QTY]

    Silicon sealant 50ML X

    adhesives and sealing compound

  • 079109104T Offers

    [Name] [Note] [QTY]

    Camshaft Outlet

    Cylinder 5-8

    F 4F-5-030 001>>* 1

  • 079109129G Offers

    [Name] [Note] [QTY]

    Cover Cylinder 5-8 1

  • 079109130G Offers

    [Name] [Note] [QTY]

    Cover Cylinders 1-4 1
