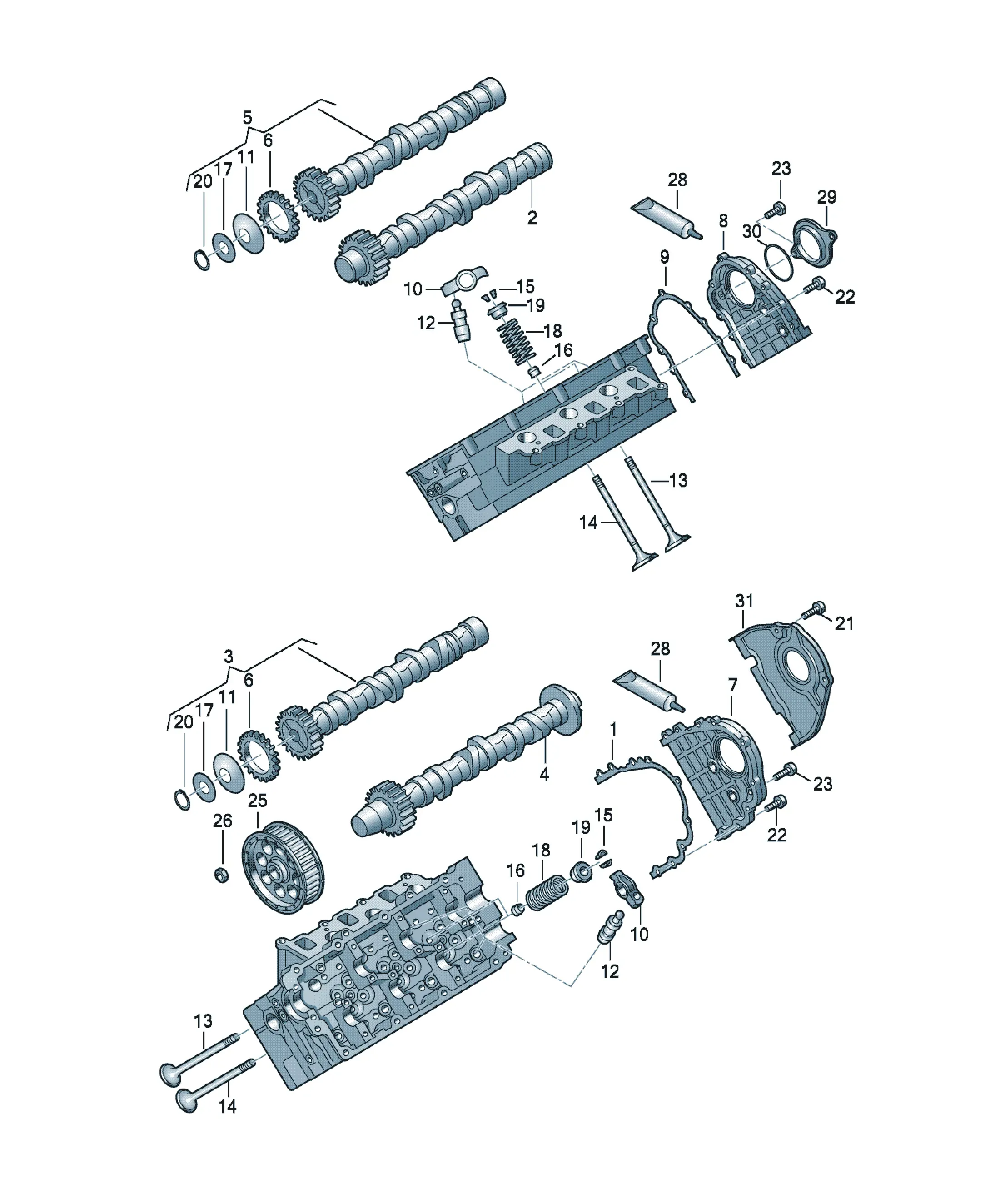

Valvetrain

[Name] [Note] [QTY]

Mounting sleeve 6X20 1

red

[Name] [Note] [QTY]

Seal cylinders 4-6 1

[Name] [QTY]

roller rocker arm 24

[Name] [QTY]

equalizing element, hydraulic 24

[Name] [QTY]

Inlet valve 12

[Name] [Model info] [QTY]

exhaust valve BMK,BNG,ASB 12

[Name] [Model info] [QTY]

exhaust valve BPP,BSG 12

Replacements: 059109611K

[Name] [QTY]

cotter, split 48

[Name] [Note] [QTY]

Valve stem seal 6MM 24

also use: 100 109 001 B X

Accompanying details: 100109001B

[Name]

No replacement part

[Name] [QTY]

Valve spring 24

Replacements: 059109633N

[Name] [Note] [QTY]

spring disc upper 24

[Name] [Note] [QTY]

Camshaft Outlet 1

cylinders 1-3

[Name] [Note] [QTY]

Securing ring 16X1 2

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 18

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 4

[Name] [QTY]

toothed belt pulley

F 4F-6-132 001>>* 1

[Name] [Note] [QTY]

toothed belt pulley Z=35

F >> 4F-6-132 000* 1

[Name] [Note] [QTY]

Hexagon bolt M10X1,25X30 1

[Name] [Note] [QTY]

Silicon sealant 50ML X

adhesives and sealing compound

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

Camshaft Outlet

cylinders 4-6

F 4F-5-135 001>>* 1

[Name] [Note] [QTY]

O-ring 67X2,8 1

[Name] [Note] [QTY]

Camshaft Inlet 1

cylinders 4-6

[Name] [Note] [QTY]

Camshaft Inlet 1

cylinders 1-3

[Name] [QTY]

Drive wheel 2

Replacements: 059109009BK; 059109009BL

[Name] [Note] [QTY]

Cover cylinders 4-6 1

Exchange program parts: 059109129EX

[Name] [Note] [QTY]

Cover cylinders 1-3 1

[Name] [Note] [QTY]

Seal cylinders 1-3 1
