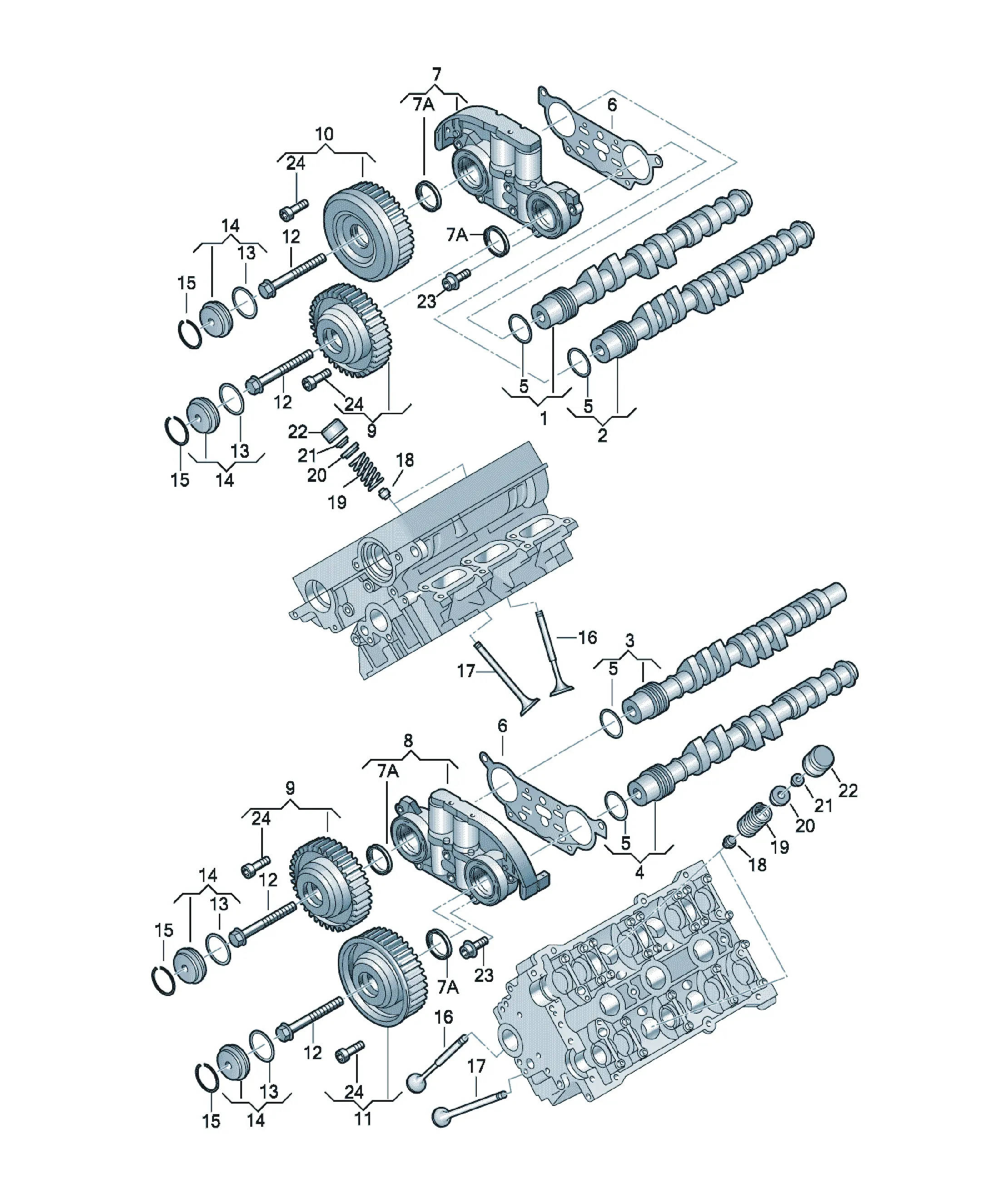

Valvetrain

[Name] [Note] [QTY]

O-ring 21X1,5 X

to be used for item: 8

[Name] [Note] [QTY]

Mounting sleeve 6X20 X

[Name] [Note] [QTY]

Camshaft Outlet 1

cylinders 1-3

[Name] [Note] [QTY]

camshaft adjuster unit Outlet 1

cylinders 1-3

[Name] [Note] [QTY]

camshaft adjuster unit Outlet 1

cylinders 4-6

[Name] [Note] [QTY]

Hex collared bolt M12X1,5X115 4

[Name] [Note] [QTY]

O-ring 30X2 4

Replacements: WHT007432

[Name] [QTY]

End cap 4

[Name] [Note] [QTY]

snap ring 36 4

[Name] [Note] [QTY]

exhaust valve 103,9 12

[Name] [Note] [QTY]

Inlet valve 105,1 18

[Name] [Note] [QTY]

Valve stem seal 6MM 30

use if required: 100 109 001 B X

Accompanying details: 100109001B

[Name] [Note] [QTY]

Valve spring Inlet 18

[Name] [Note] [QTY]

Valve spring Outlet 12

[Name] [Note] [QTY]

Camshaft Inlet 1

cylinders 1-3

[Name] [Note] [QTY]

spring disc Inlet 18

Replacements: 058109641D

[Name] [Note] [QTY]

spring disc Outlet 12

Replacements: 058109641E

[Name] [QTY]

cotter, split 60

[Name] [Note] [QTY]

Tappets Inlet 18

[Name] [Note] [QTY]

Tappets Outlet 12

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X20 10

[Name] [Note] [QTY]

Camshaft Inlet 1

cylinders 4-6

[Name] [Note] [QTY]

Camshaft Outlet 1

cylinders 4-6

[Name] [Note] [QTY]

seal ring 40X1,5 12

Replacements: 066109345B

[Name] [QTY]

Seal 2

[Name] [Note] [QTY]

timing case cylinders 1-3 1

[Name] [Note] [QTY]

Shaft oil seal 55X41X7 4

[Name] [Note] [QTY]

timing case cylinders 4-6 1

[Name] [Note] [QTY]

camshaft adjuster unit Inlet 2
