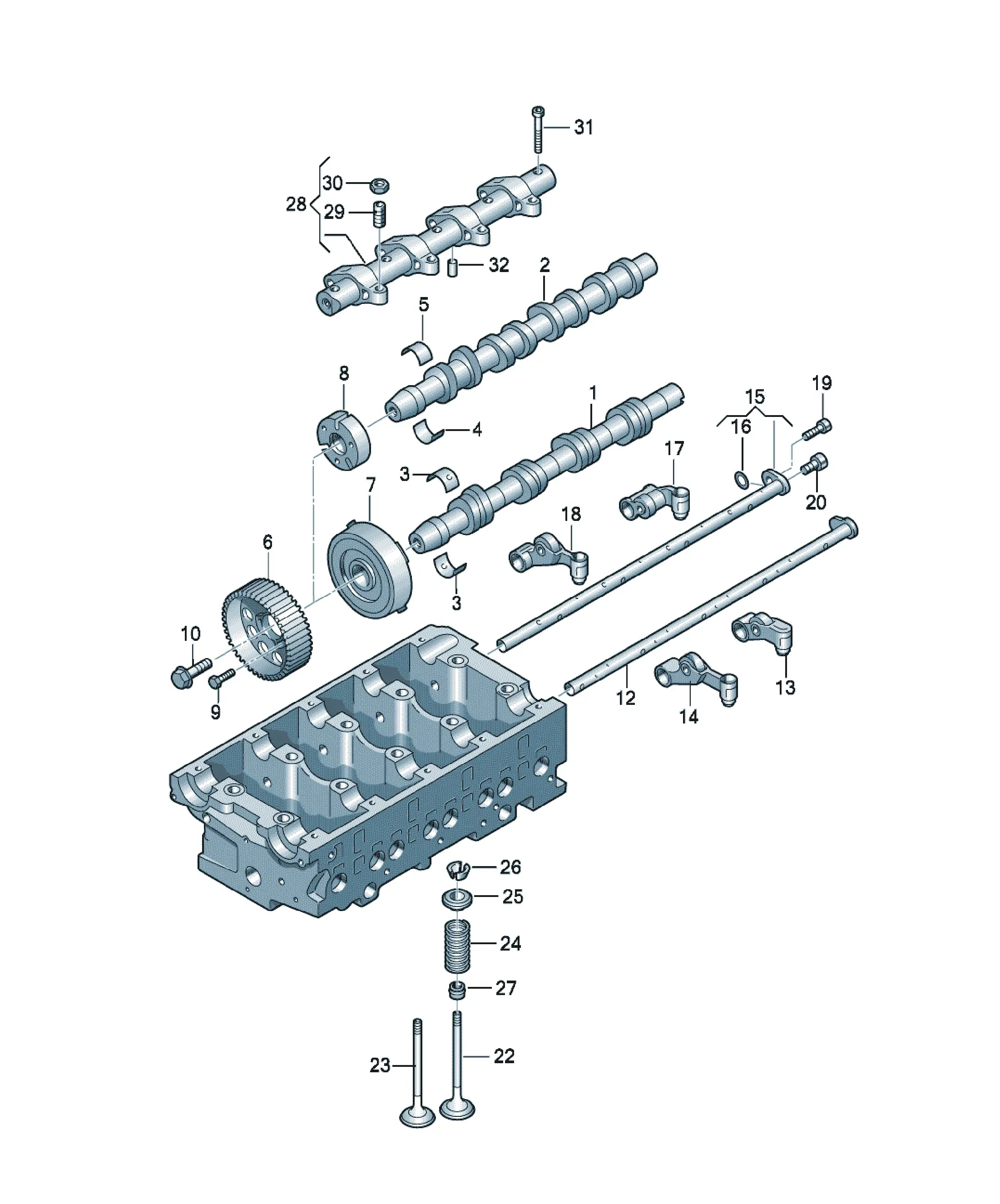

Camshaft and valve train

[Name] [QTY]

Ball pin 1

[Name] [Note] [QTY]

Camshaft Inlet 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M12X1,5X35 2

[Name] [Note] [QTY]

axle Inlet 1

[Name] [Note] [QTY]

roller rocker arm Inlet 4

[Name] [Note] [QTY]

roller rocker arm Inlet 4

[Name] [Note] [QTY]

axle Outlet 1

[Name] [Note] [QTY]

O-ring 12X1,9 1

[Name] [Note] [QTY]

roller rocker arm Outlet 4

[Name] [Note] [QTY]

roller rocker arm Outlet 4

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 1

[Name] [Note] [Model info] [QTY]

Camshaft Outlet BRE,BRF,BVG 1

[Name] [Note] [Model info] [QTY]

Camshaft Outlet BLB,BNA 1

[Name] [Note] [QTY]

Hexagon socket head bolt M8X12 1

[Name] [Note] [QTY]

Inlet valve 88,5 8

[Name] [Note] [QTY]

exhaust valve 88 8

[Name] [QTY]

Valve spring 16

[Name] [Note] [QTY]

spring disc upper 16

Replacements: 058109641D

[Name] [QTY]

cotter, split 32

[Name] [Note] [Model info] [QTY]

Valve stem seal 6MM BLB,BNA 16

[Name] [Note] [QTY]

rocker arm shaft with rocker arm Unit inject. 1

also use: WHT 002 791 1

Accompanying details: WHT002791

[Name] [Note] [QTY]

adjusting screw with ball- head M12X1,25X26,75 4

[Name] [Note] [QTY]

camshaft bearing shell Inlet 10

[Name] [Note] [QTY]

Hexagon nut M12X1,25 4

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X58 5

[Name] [Note] [QTY]

Cylinder pin 6X12 1

[Name] [Note] [QTY]

camshaft bearing shell Outlet 5

lower

[Name] [Note] [QTY]

camshaft bearing shell Outlet 5

upper

[Name] [QTY]

toothed belt pulley 2

[Name] [Note] [Model info] [QTY]

hub Inlet BRE,BRF,BVG 1

[Name] [Note] [Model info] [QTY]

hub Inlet BLB,BNA 1

[Name] [Note] [QTY]

hub Outlet 1

[Name] [Note] [QTY]

Hex collared bolt M8X30 3
