Hoses / pipes

Cooling system

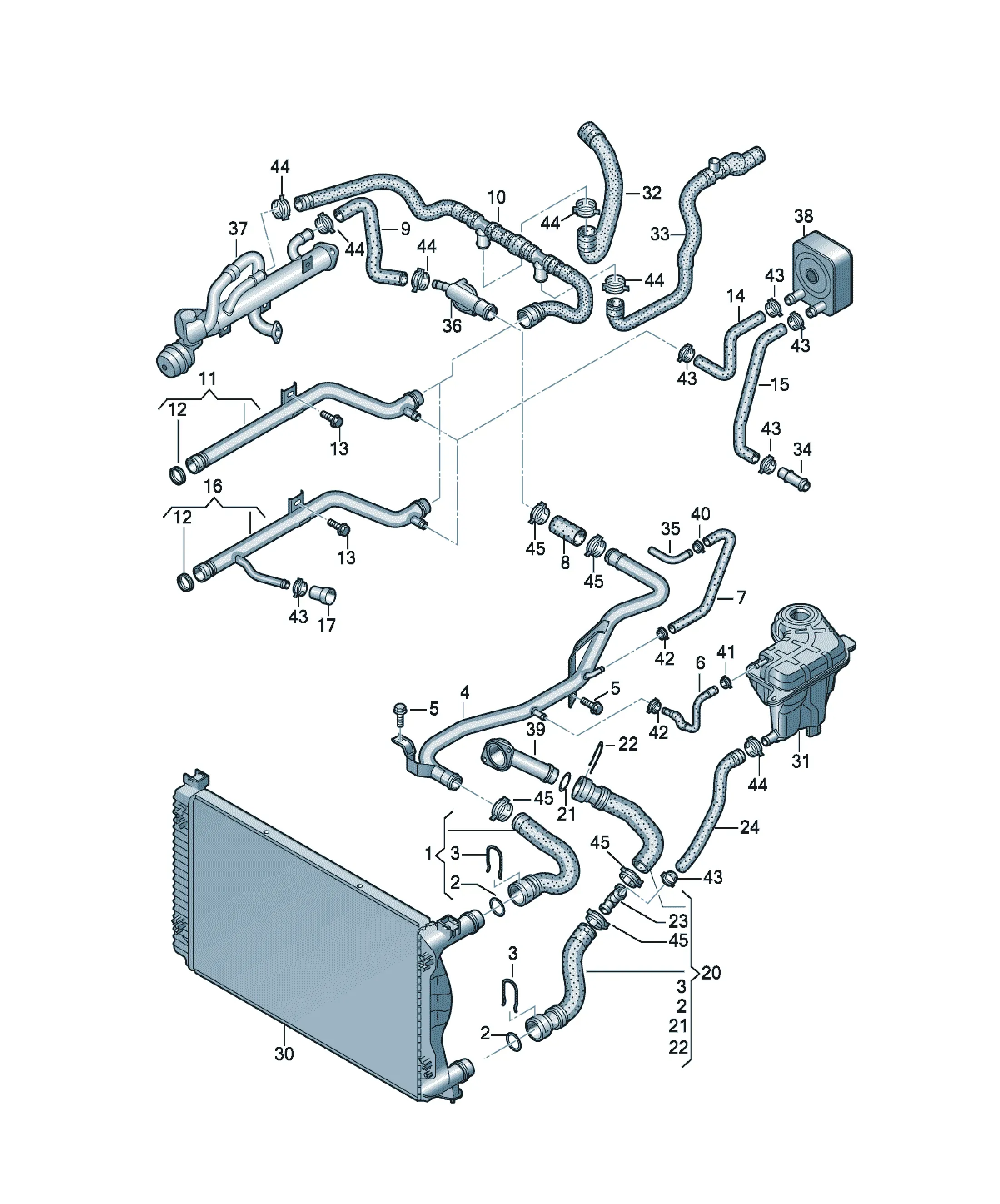

Cooling system diagram

Parts

41 parts

Держатель шланга
N10428401 Offers

[Name] [Note] [QTY]
Hose bracket 19X12X6,5 1
4F0121101B Offers

[Name] [QTY]
Coolant hose with quick release coupling 1
4F0819375C Offers

[Name] [QTY]
Heating hose 1
03G121065R Offers

[Name] [QTY]
Coolant pipe 1
06B121687 Offers

[Name] [Note] [QTY]
seal ring 20,5X5,5 1
N0102279 Offers

[Name] [Note] [QTY]
bolt, hexagon head self-locking M7X12 1
1K0121058P Offers

[Name] [QTY]
Coolant hose 1
03G121096 Offers

[Name] [QTY]
Coolant hose 1
[Name]
Coolant pipe
Not for this model
1J0121324 Offers

[Name] [QTY]
Cap closure 1
4E0121666 Offers

[Name] [Note] [QTY]
O-ring 38X4 1
4F0121055P Offers

[Name] [Note] [Model info] [QTY]
Coolant hose with quick release coupling 1
also use: *>>4F-6-002000 sedan
*>>4F-6-022000 AVANT
4F0 121 109 S 1
Accompanying details: 4F0121109S
Items supplied
Coolant hose 2
N 90692901 connection piece 32X20X32 1
N90765301 Offers

[Name] [Note] [QTY]
O-ring 32X4 1
1J0121142 Offers

[Name] [Note] [QTY]
retaining spring 32MM 1
N90692901 Offers

[Name] [Note] [QTY]
connection piece 32X20X32 1
4F0121109S Offers

[Name] [Note] [Model info] [QTY]
Coolant hose 1
also use: *>>4F-6-002000 sedan
*>>4F-6-022000 AVANT
4F0 121 055 P 1
Accompanying details: 4F0121055P
4E0121142 Offers

[Name] [Note] [QTY]
retaining spring 38MM 1
[Name] [Note]
Cooler for coolant
see illustration: 121-071
[Name] [Note]
Reservoir
see illustration: 121-071
[Name] [Note]
Coolant hose
see illustration: 819-060
[Name] [Note]
Coolant hose
see illustration: 819-060
[Name] [Note]
Pipe union
see illustration: 103-010
[Name] [Note]
Pipe union
see illustration: 103-040
[Name] [Note]
water connection
see illustration: 121-077
[Name] [Note]
Cooler for exhaust recuperation
see illustration: 131-000
[Name] [Note]
Oil cooler
see illustration: 115-060
[Name] [Note]
Pipe union
see illustration: 121-002
03G121071A Offers

[Name] [QTY]
Coolant pipe 1
N90686701 Offers

[Name] [Note] [QTY]
Spring band clamp 14X12 X
4B0422379 Offers

[Name] [Note] [QTY]
Spring band clamp 16X12 X
N90770201 Offers

[Name] [Note] [QTY]
Spring band clamp 17X12 X
N90686901 Offers

[Name] [Note] [QTY]
Spring band clamp 23X12 X
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 X
N90687201 Offers

[Name] [Note] [QTY]
Spring band clamp 40X12 X
N10171102 Offers

[Name] [Note] [QTY]
Hex collared bolt M6X16 2
Replacements: N 10171105
4F0121107AM Offers

[Name] [QTY]
Vent hose
F 4F-6-175 601>>* 1
4F0121107N Offers

[Name] [QTY]
Vent hose
F >> 4F-6-175 600* 1
Replacements: 4F0121107AM
03G121473 Offers

[Name] [QTY]
Vent hose 1
03G121101 Offers

[Name] [QTY]
Coolant hose 1
03G121157 Offers

[Name] [QTY]
Coolant hose 1
D >> - 16.01.2006
03G121157B Offers

[Name] [QTY]
Coolant hose 1
D - 16.01.2006>>
