Hoses / pipes

Coolant hoses and pipes

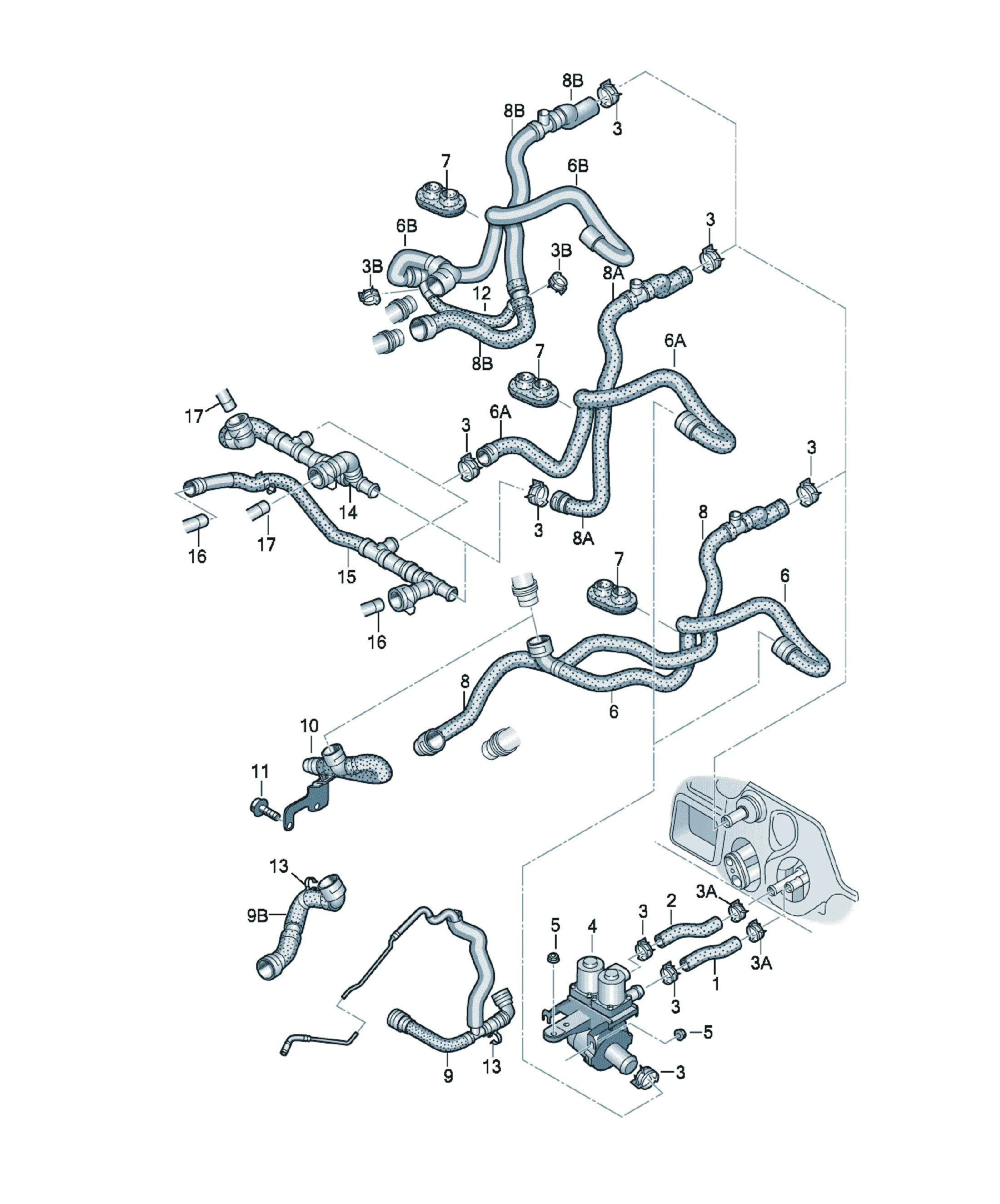

Coolant hoses and pipes diagram

Parts

36 parts

Винт самонарез. с внутр. TORX
N90817003 Offers

[Name] [Note] [Model info] [QTY]
Hexagon socket head panel bolt 6X17 PR:G0Z+ 1
BPP,BSG
1 set of attachment parts for valve unit
4F2998617 Offers

[Name] [QTY]
1 set of attachment parts for valve unit 1
repair set
Bracket 1
Damping rubber 2
Satin black
4B0863907A01C Offers

[Name]
Satin black
Clip
4B0863907A Offers

[Name] [QTY]
Clip 1
Replacements: 4B0863907A 01C
Spring clamp
4B0422379 Offers

[Name] [Note] [QTY]
Spring band clamp 16X12 1
choke
4F0819036 Offers

[Name] [QTY]
choke 1
4F2819372 Offers

[Name] [QTY]
Heating hose 1
4F0819342A Offers

[Name] [Note] [Model info] [QTY]
Heating hose feed PR:G0Z+ 1
BPP+BSG
N91048802 Offers

[Name] [Note] [Model info] [QTY]
Screw with int. serrations M8X22 PR:G0Z+ 2
BPP,BSG
4A0121093 Offers

[Name] [Model info] [QTY]
Cable tie with hose retainer BMK,BNG,BPP, 1
BSG
4F0819375B Offers

[Name] [QTY]
Heating hose 1
4F0819375C Offers

[Name] [QTY]
Heating hose 1
[Name] [Note]
see illustration: 121-020
[Name] [Note]
see illustration: 121-028
[Name] [Note]
see illustration: 121-028
[Name] [Note]
see illustration: 121-020
4F2819374 Offers

[Name] [QTY]
Coolant hose 1
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 X
N90686902 Offers

[Name] [Note] [QTY]
Spring band clamp 23X12 1
N10205802 Offers

[Name] [Note] [QTY]
Hexagon collar nut self-locking M6 1
4F2819371S Offers

[Name] [Note] [Model info] [QTY]
Heating hose feed PR:G0Z+ 1
BPP,BSG
[Name] [Note]
Coolant hose PR-9M9
see illustration: 261-029,32
4F2819371 Offers

[Name] [Note] [Model info] [QTY]
Heating hose feed BMK,BNG,BPP, 1
BSG
4F2819371 Offers

[Name] [Note] [Model info] [QTY]
Heating hose feed PR:G0K,G0R+ 1
BPP,BSG
[Name] [Note] [Model info]
Coolant hose PR:9M9
see illustration: 261-028
4F2819371K Offers

[Name] [Note] [Model info] [QTY]
Heating hose feed BLB 1
4F2819371K Offers

[Name] [Note] [QTY]
Heating hose feed 1
4F2819699 Offers

[Name] [QTY]
Grommet 1
[Name] [Note] [Model info]
Coolant hose PR:9M9
see illustration: 261-029,32
4F0819373AA Offers

[Name] [Note] [Model info] [QTY]
Heating hose return PR:G0K,G0R+ 1
BPP,BSG
4F0819373AA Offers

[Name] [Note] [Model info] [QTY]
Heating hose return BMK,BNG,ASB 1
4F0819373T Offers

[Name] [Note] [QTY]
Heating hose return 1
4F0819373T Offers

[Name] [Note] [Model info] [QTY]
Heating hose return BLB 1
4F0819373AB Offers

[Name] [Note] [Model info] [QTY]
Heating hose return PR:G0Z+ 1
BPP,BSG
[Name] [Note] [Model info]
Coolant hose PR:9M9
see illustration: 261-028
4F0819334D Offers

[Name] [Note] [Model info] [QTY]
Heating hose return 2MK,BNG,BPP, 1
Contains: 4F0 121 107 AS BSG
