Hoses / pipes

Cooling system

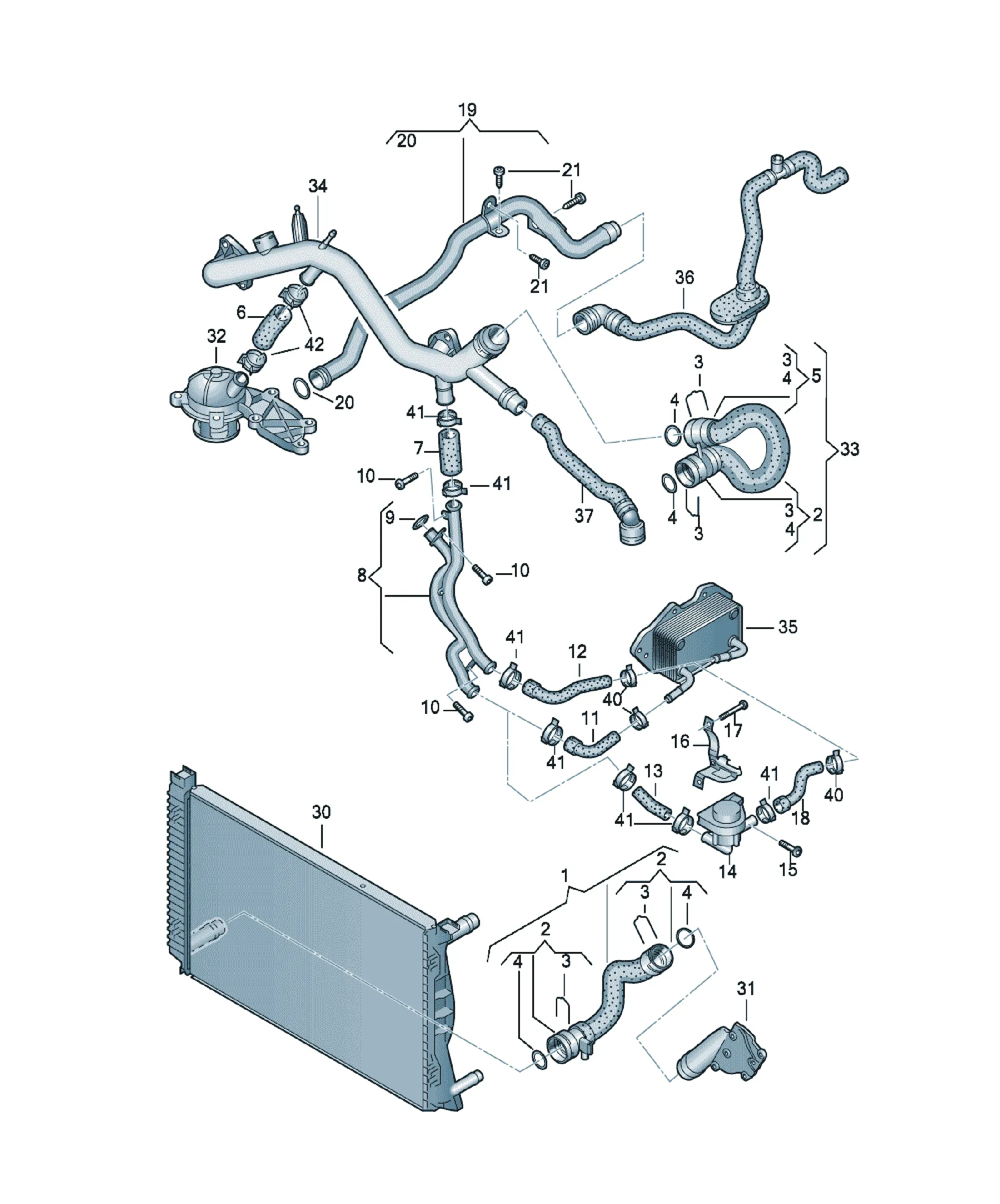

Cooling system diagram

Parts

37 parts

4F0121055F Offers

[Name] [QTY]
Coolant hose with quick release coupling 1
N10124408 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt (combi) M6X20 3
06E121082C Offers

[Name] [QTY]
Coolant hose 1
06E121058E Offers

[Name] [Model info] [QTY]
Coolant hose PR:8Z5,8Z6, 1
8Z4
06E121088B Offers

[Name] [Model info] [QTY]
Coolant hose PR:8Z9 1
for vehicle use in warm climates
06E121601B Offers

[Name] [Model info] [QTY]
Additional coolant pump PR:8Z9 1
for vehicle use in warm climates
N10124408 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt (combi) M6X20 3
06E121521D Offers

[Name] [Model info] [QTY]
Bracket for additional coolant pump PR:8Z9,BDW, 1
AUK,BYU,BKH,
BDX
N10636501 Offers

[Name] [Note] [QTY]
bolt,hex.hd.with shoul.(combi) M8X90 2
06E121088C Offers

[Name] [Model info] [QTY]
Coolant hose PR:8Z9 1
for vehicle use in warm climates
06E121065M Offers

[Name] [Note] [Model info] [QTY]
Coolant pipe plastic AUK,BDX,BKH 1
D - 14.01.2008>>
Replacements: 06E121065N; 06E103733
06E121065J Offers

[Name] [Model info] [QTY]
Coolant pipe BDW 1
06E121065H Offers

[Name] [Model info] [QTY]
Coolant pipe AUK,BDX,BKH 1
D >> - 14.01.2008
[Name]
Quick acting coupling
No replacement part
N90316801 Offers

[Name] [Note] [QTY]
O-ring 19,6X3,65 1
N91140701 Offers

[Name] [Note] [QTY]
Hexagon socket oval head bolt (combi) M6X18 1
D - 27.07.2006>>
N10347003 Offers

[Name] [Note] [QTY]
Socket head bolt with inner hex round head M6X16 1
D >> - 27.07.2006
4E0121142 Offers

[Name] [Note] [QTY]
retaining spring 38MM 2
[Name] [Note]
Cooler for coolant
see illustration: 121-071
[Name] [Note]
Cover
see illustration: 121-003
[Name] [Note]
Coolant regulator
see illustration: 121-003
[Name] [Note]
Coolant hose with quick release coupling
see illustration: 121-040
[Name] [Note]
Coolant pipe
see illustration: 121-040
[Name] [Note]
Oil cooler
see illustration: 115-010
[Name] [Note]
Coolant hose with quick release coupling
See main and sub-group: 8-19
[Name] [Note]
Coolant hose with quick release coupling
See main and sub-group: 2-61
[Name] [Note]
Coolant hose with quick release coupling
See main and sub-group: 2-61
[Name] [Note]
Coolant hose with quick release coupling
See main and sub-group: 8-19
4E0121666 Offers

[Name] [Note] [QTY]
O-ring 38X4 2
N90686901 Offers

[Name] [Note] [QTY]
Spring band clamp 23X12 X
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 X
N90687101 Offers

[Name] [Note] [QTY]
Spring band clamp 32X12 X
[Name]
Quick acting coupling
No replacement part
06E121445B Offers

[Name] [QTY]
Coolant hose 1
06E121058D Offers

[Name] [QTY]
Coolant hose 1
06E121044D Offers

[Name] [QTY]
Coolant pipe 1
Replacements: 06E121044F
Items supplied
06E121500 Coolant pipe return 1
06E121525 Coolant pipe feed 1
N 90925001 O-ring 17X3 1
Potential individual parts
N90925001 Offers

[Name] [Note] [QTY]
O-ring 17X3 1
