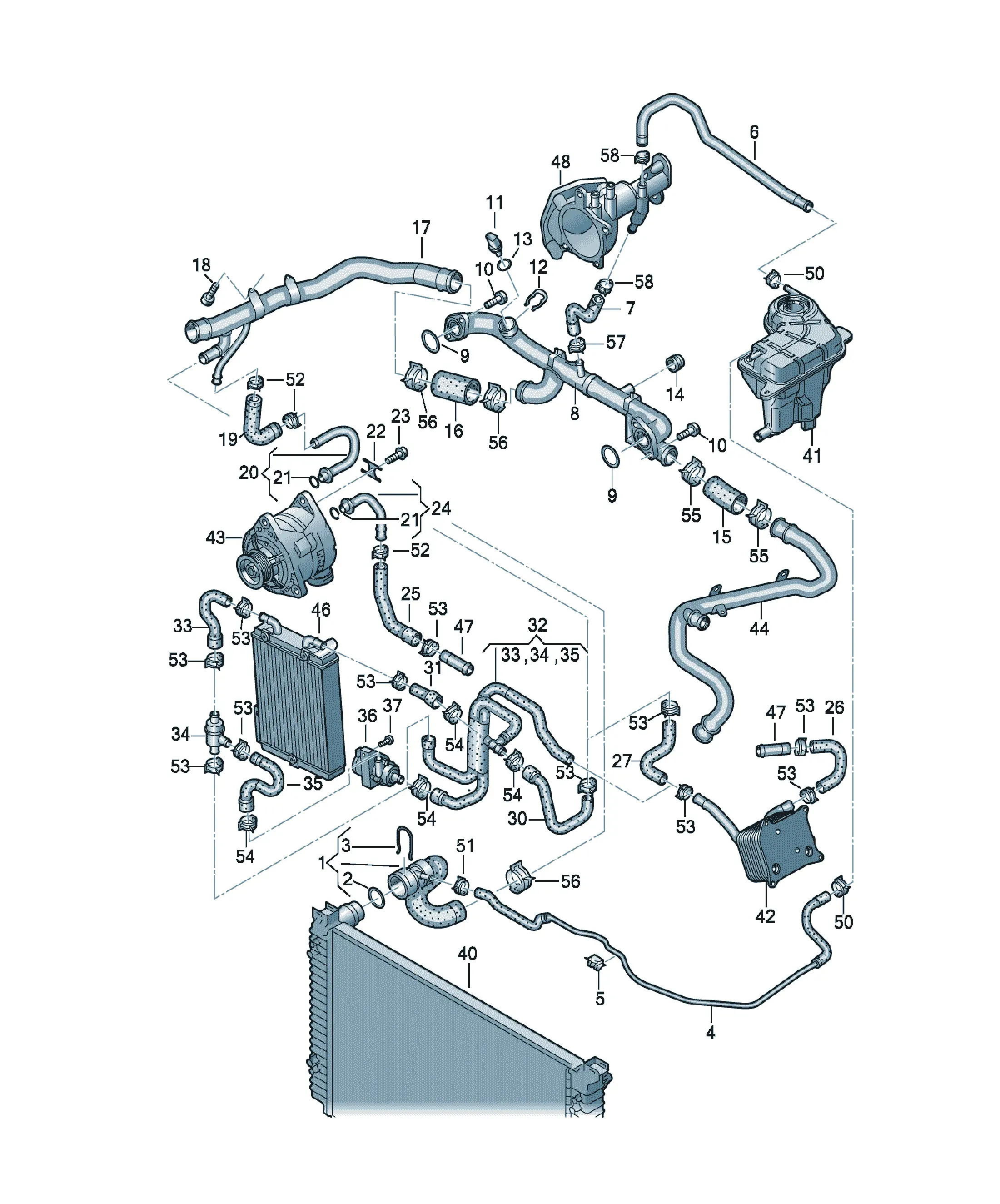

Cooling system

[Name] [QTY]

Coolant hose with quick release coupling 1

Replacements: 4F0121101M

[Name] [Note] [QTY]

Round-head screw with inner hexagon socket head M6X20 4

[Name] [Note] [QTY]

Coolant temperature sender 2 pin 1

Replacements: 05C919501

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

retaining spring 1

[Name] [Note] [QTY]

O-ring 19,6X3,65 1

[Name] [QTY]

Cap closure 1

Items supplied

Quick acting coupling black 1

tension spring black 1

O-ring 22X3,5 1

Locking ring black 1

[Name] [Note] [QTY]

Coolant hose left rear 1

[Name] [Note] [QTY]

Coolant hose right rear 1

Replacements: 079121102G

[Name] [Note] [QTY]

Coolant pipe right

F >> 4F-7-200 000* 1

Replacements: 079121070BQ

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

Replacements: N 90780904

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [Note] [QTY]

Pipe union right 1

[Name] [Note] [QTY]

O-ring 12,2X1,65 2

[Name] [QTY]

Retaining plate 1

water connection

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 1

[Name] [Note] [QTY]

Pipe union left 1

Replacements: 079121131BN

[Name] [QTY]

Coolant hose 1

Replacements: 079121053AC

[Name] [QTY]

Coolant hose 1

[Name] [Model info] [QTY]

Coolant hose PR:8Z4,8Z5,

F >> 4F-7-200 000* 8Z6 1

Replacements: 079121096AA

[Name] [Note] [QTY]

retaining spring 38MM 1

[Name] [Model info] [QTY]

Coolant hose PR:8Z9 1

[Name] [Model info] [QTY]

Coolant hose PR:8Z9 1

[Name] [Model info] [QTY]

Coolant hose with coolant regulator PR:8Z9 1

Items supplied

4F0121472A Coolant hose 1

4F0121445A Coolant hose 1

4F0121444E Coolant hose 1

4F0121448D Coolant hose 1

4F0121449E Coolant hose 1

4B3121113A Coolant regulator 90C 1

Y-piece 20X20X20 1

60GRAD

clamping ring 3

[Name]

Not for this model

[Name]

Not for this model

[Name]

Not for this model

[Name] [Model info] [QTY]

Additional coolant pump PR:8Z9 1

[Name] [Note] [Model info] [QTY]

Oval hexagon socket head bolt M6X30 PR:8Z9 1

[Name] [QTY]

Coolant hose 1

[Name] [Note]

Cooler for coolant

see illustration: 121-072

[Name] [Note]

Reservoir

see illustration: 121-072

[Name] [Note]

Oil cooler

see illustration: 115-041

[Name] [Note]

Alternator

see illustration: 903-000

[Name] [Note]

Coolant pipe

see illustration: 121-055

[Name]

Additional cooler for coolant

Not for this model

[Name] [Note]

water connection

see illustration: 103-035

[Name] [Note]

Connector union

see illustration, item: 133-086,3

[Name] [Note] [QTY]

terminal 17,5 1

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200 1

[Name] [Note] [QTY]

Clip 8X16X0,45 4

[Name] [Note] [QTY]

Spring band clamp 16X12 X

[Name] [Note] [QTY]

Spring band clamp 17X12 X

[Name] [Note] [QTY]

Spring band clamp 19X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 2

to be used for item:

[Name] [Note] [QTY]

clamp 17,5X7X0,6 X

[Name] [Note] [QTY]

clamp 21X7X0,60 X

[Name] [QTY]

Vent hose 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant pipe rear 1

[Name] [Note] [QTY]

O-ring 32X5 2
