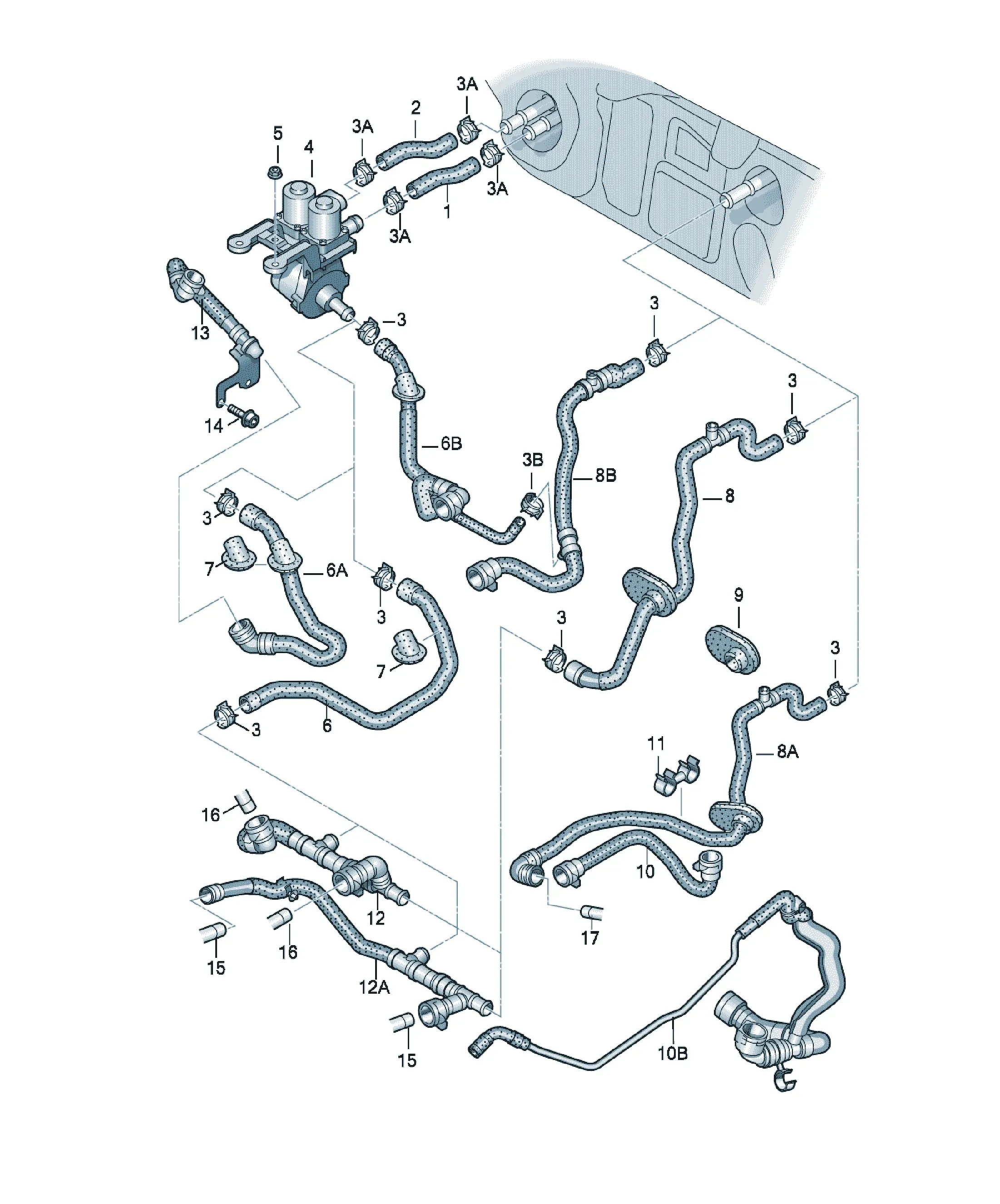

Coolant hoses and pipes

[Name]

Satin black

[Name] [Note] [QTY]

1 set of attachment parts for valve unit 1

Included in position: 4

repair set

Bracket 1

Damping rubber 2

[Name] [QTY]

Clip 1

Replacements: 4B0863907A 01C

[Name] [Note] [QTY]

Spring band clamp 16X12 1

[Name] [Note] [QTY]

Hose bracket 19X12X6,5 1

[Name] [Note] [Model info] [QTY]

Hexagon socket head panel bolt 6X17 PR:G0Z+ 1

BPP,BSG

[Name] [QTY]

Heating hose 1

[Name] [Note] [Model info] [QTY]

Heating hose return 1

lhd BMK,BNG,BPP,

Contains: 4F0.121.107.AS BSG,ASB

[Name] [Model info] [QTY]

Cable tie with hose retainer BMK,BNG,BPP, 1

Use also from illustration: BSG,ASB

[Name] [Note] [QTY]

Heating hose return 1

[Name] [Note] [Model info] [QTY]

Heating hose return BLB,BNA,BRF, 1

BRE,BVG

[Name] [Note] [Model info] [QTY]

Heating hose feed PR:G0Z+ 1

BPP,BSG

[Name] [Note] [Model info] [QTY]

Socket head bolt with hexagon socket head (combination) M8X22 PR:G0Z+ 2

BPP,BSG

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 1

[Name] [QTY]

Valve unit 1

mating connector

4D0971992 Flat connector housing with contact locking mechanism 2 pin 1

black/violet

4D0971993 Flat connector housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Hexagon collar nut self-locking M6 3

[Name] [Note] [QTY]

Hexagon collar nut self-locking M6 1

[Name] [Note] [Model info] [QTY]

Heating hose feed BLB,BNA,BRF, 1

BRE,BVG

[Name] [Note] [QTY]

Heating hose feed 1

use if required: 4F1 819 345 1

Accompanying details: 4F1819345

[Name] [Note] [Model info]

Coolant hose PR:9M9

see illustration: 261-028

[Name] [Note] [Model info] [QTY]

Heating hose feed BMK,BNG,ASB 1

[Name] [Note] [Model info]

Coolant hose PR:9M9

see illustration: 261-029,32

[Name] [Note] [Model info] [QTY]

Heating hose feed PR:G0Z+ 1

BPP,BSG

[Name] [Note] [Model info] [QTY]

Heating hose feed PR:G0K,G0R+ 1

BPP,BSG

[Name] [QTY]

Grommet 1

[Name] [Note] [Model info] [QTY]

Heating hose return BLB,BNA,BRF, 1

BRE,BVG

use if required: 4F1 819 699 1

Accompanying details: 4F1819699

[Name] [Note] [Model info]

Coolant hose PR:9M9

see illustration: 261-028

[Name] [Note] [QTY]

Heating hose return 1

[Name] [Note] [Model info]

Coolant hose PR:9M9

see illustration: 261-029,32

[Name] [Note] [Model info] [QTY]

Heating hose return BMK,BNG,ASB 1

[Name] [Note] [Model info] [QTY]

Heating hose return BMK 1

[Name] [Note] [Model info] [QTY]

Heating hose return PR:G0Z+ 1

BPP,BSG

[Name] [Note] [Model info] [QTY]

Heating hose return PR:G0K,G0R+ 1

BPP,BSG

[Name] [QTY]

Grommet 1
