Hoses / pipes

Coolant hoses

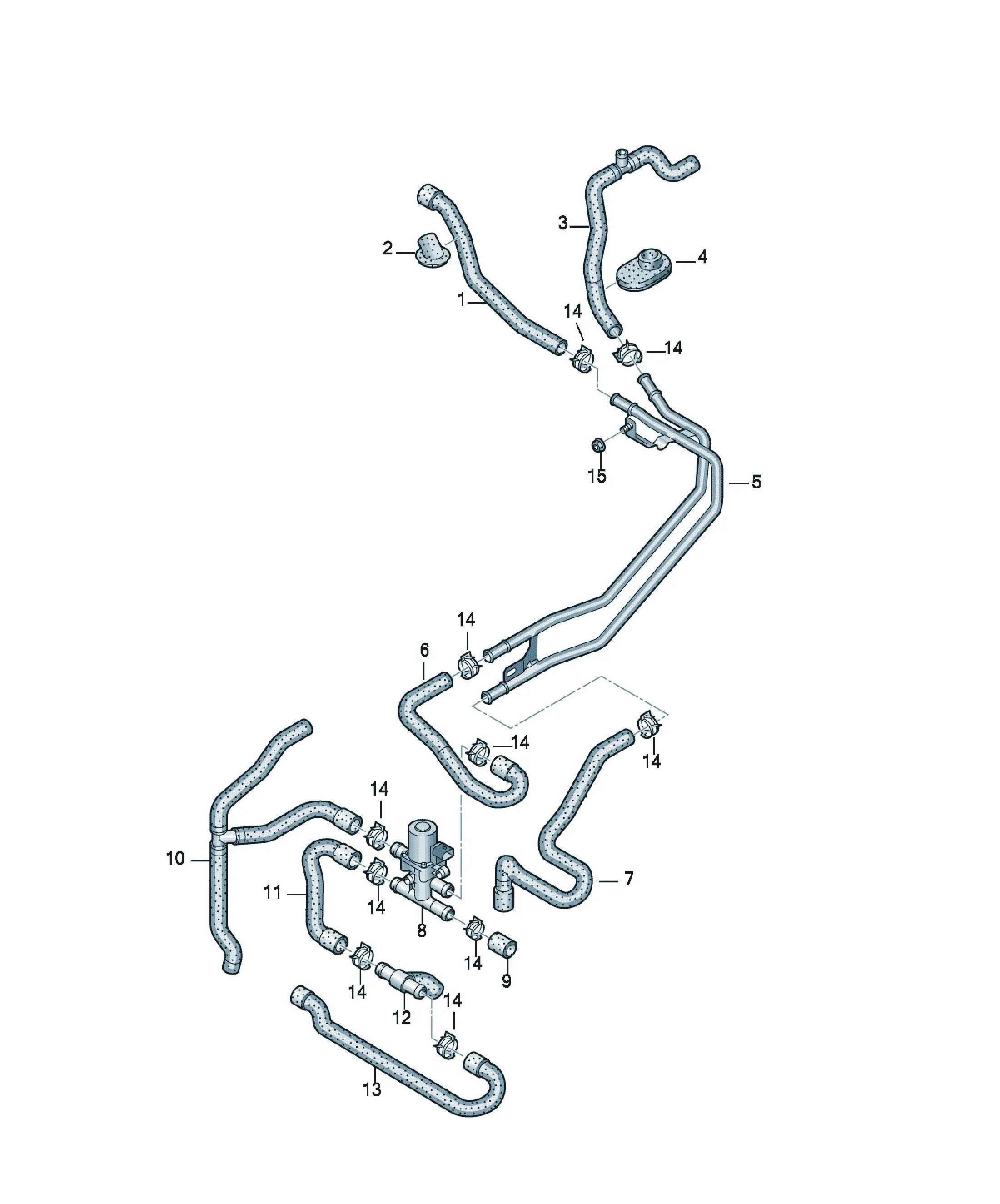

Coolant hoses diagram

Parts

19 parts

4F1265371A Offers

[Name] [QTY]
Coolant hose 1
4F0265036 Offers

[Name] [Model info] [QTY]
Coolant hose BAT 1
4F0265036A Offers

[Name] [Model info] [QTY]
Coolant hose BVJ 1
4F0265355 Offers

[Name] [QTY]
Coolant hose 1
4F0265351 Offers

[Name] [QTY]
Coolant hose 1
4F0265352M Offers

[Name] [Model info] [QTY]
Coolant hose BVJ 1
4F0265352F Offers

[Name] [Model info] [QTY]
Coolant hose BAT 1
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 X
N90561801 Offers

[Name] [Note] [QTY]
Clamp 16-28X9X0,5 2
for solenoid valve
N01508213 Offers

[Name] [Note] [QTY]
Hexagon collar nut M6 4
Replacements: N 01508210
4F1819345 Offers

[Name] [QTY]
Grommet 1
4F1265348D Offers

[Name] [Note] [Model info] [QTY]
Coolant hose return BAT 1
4F1819350R Offers

[Name] [Model info] [QTY]
Heating hose BVJ 1
4F1819699 Offers

[Name] [QTY]
Grommet 1
4F0265235C Offers

[Name] [QTY]
Coolant pipe 1
4F0265374E Offers

[Name] [QTY]
Coolant hose 1
4F0265353E Offers

[Name] [Note] [QTY]
Coolant hose feed 1
8E0820035B Offers

[Name] [QTY]
Solenoid valve 1
Replacements: 8E0820036; 8E0820607; 8J0121324; N 90687001
Items supplied
8E0820036 Solenoid valve 1
8E0820607 Sleeve 2
8J0121324 Cap closure 20X3,5 1
N 90687001 Spring band clamp 27X12 1
mating connector
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
4D0133335 Offers

[Name] [QTY]
Cap closure 1
Items supplied
Quick acting coupling black 1
tension spring black 1
O-ring 22X3,5 1
Locking ring black 1
