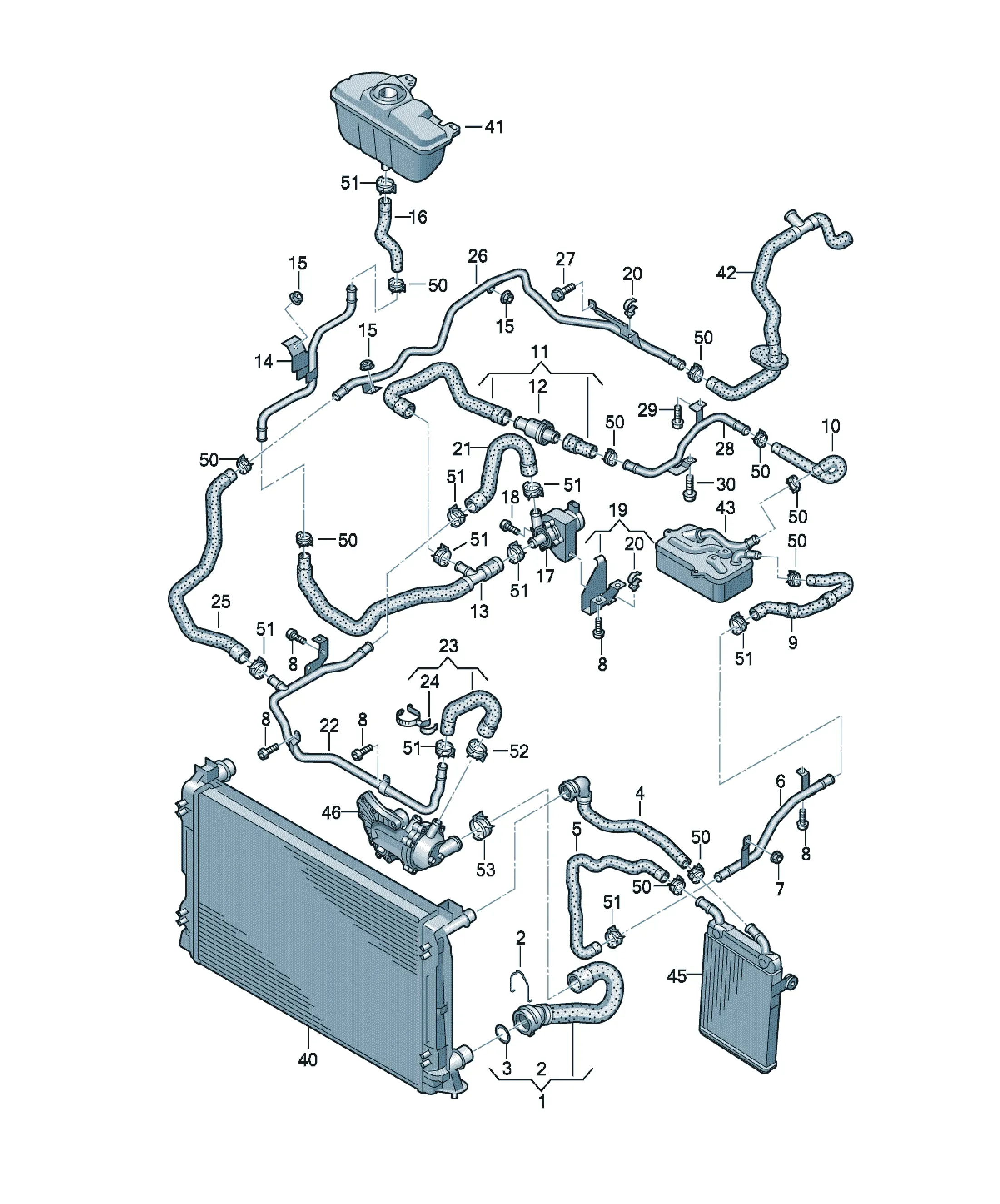

Cooling system

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose with coolant regulator 1

[Name] [QTY]

Coolant regulator 1

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant pipe left 1

[Name] [Note] [QTY]

hex. nut with washer M6 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Additional coolant pump 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 1

[Name] [QTY]

Bracket for additional coolant pump 1

[Name] [Note] [QTY]

retaining spring 38MM 1

[Name] [QTY]

Clip X

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Coolant pipe front 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Cable tie with hose retainer 1

[Name] [Model info] [QTY]

Coolant hose PR:9M0 1

[Name] [QTY]

flanged pipe 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X15 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M6X16 1

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X28 1

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note]

Cooler for coolant

see illustration: 121-072

[Name] [Note]

Reservoir

see illustration: 121-072

[Name] [Note]

Coolant hose

see illustration: 819-062

[Name] [Note]

Oil cooler

for automatic gearbox

see illustration: 325-079

[Name] [Note]

Oil cooler

for transfer box

see illustration: 325-079

[Name] [Note]

Additional cooler for coolant

see illustration: 121-074

[Name] [Note]

Coolant pump

see illustration: 121-006

[Name] [QTY]

Coolant hose 1

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 47X12 X

[Name] [Note] [QTY]

Coolant pipe left 1

[Name] [Note] [QTY]

Hexagon collar nut M6 X

Replacements: N 01508210

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 X

[Name] [QTY]

Coolant hose 1
