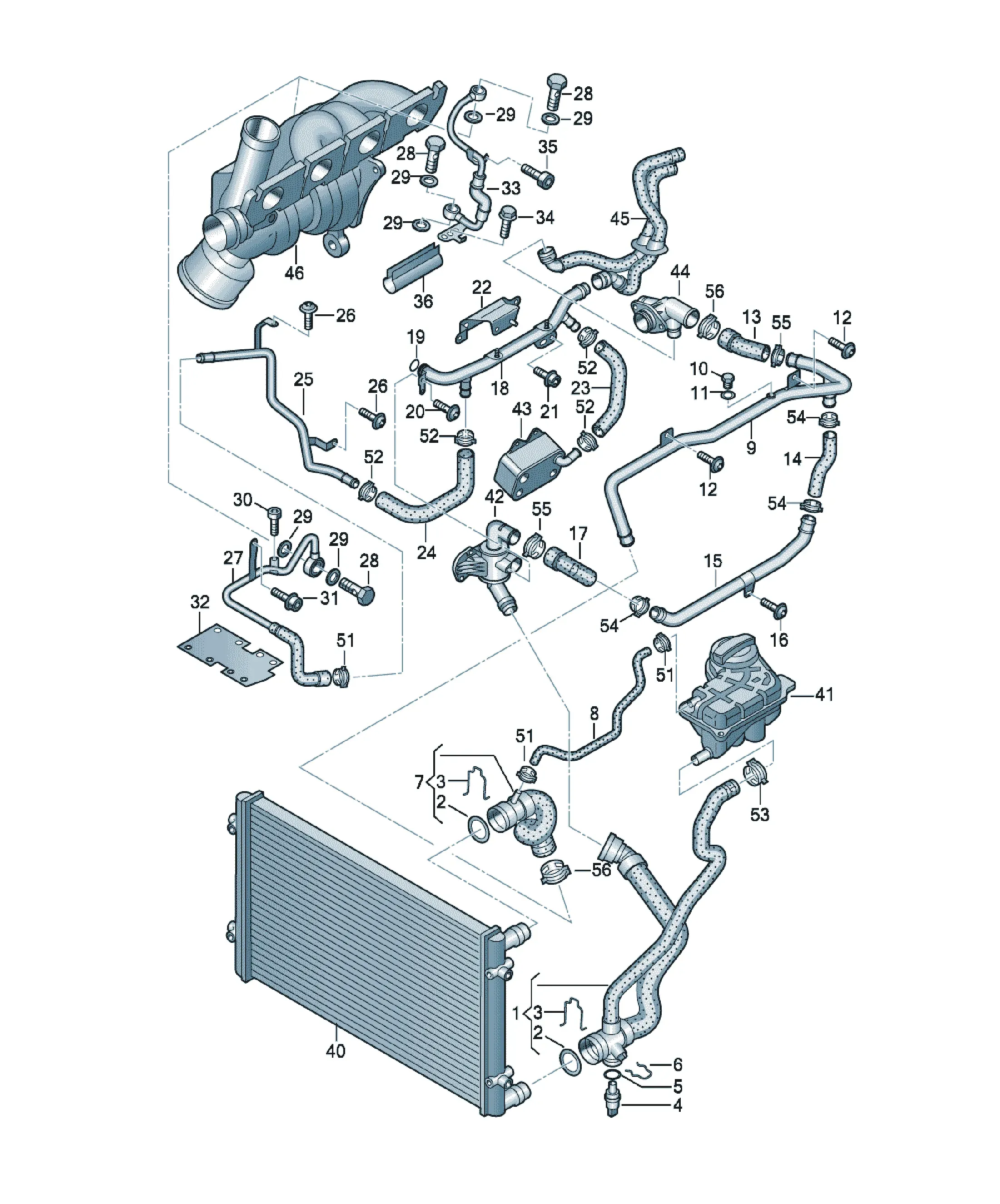

Cooling system

[Name] [Note] [QTY]

Coolant hose 1

(reservoir > adapter)

use if required: N 906 870 01 1

Accompanying details: N 90687001

[Name] [Note] [QTY]

Coolant hose with quick release coupling 1

use if required: 4F0 121 109 S 1

Accompanying details: 4F0121109S

Items supplied

Coolant hose 2

N 90692901 connection piece 32X20X32 1

[Name] [Note] [QTY]

Hexagon bolt M6X8 1

[Name] [Note] [QTY]

seal ring 6X10 1

[Name] [Note] [QTY]

Hex socket head collared bolt M6X12 2

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Hex socket head collared bolt M6X12 2

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

O-ring 20X3 1

[Name] [Note] [QTY]

O-ring 38X4 X

[Name] [Note] [QTY]

O-ring 32X4 X

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X18,5 1

[Name] [Note] [QTY]

Hex socket head collared bolt M6X12 2

[Name] [QTY]

Bracket mount 1

[Name] [QTY]

Coolant hose 1

(Coolant pipe > oil cooler)

[Name] [QTY]

Coolant hose 1

(Coolant pipe> coolant pipe)

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 6X17 1

[Name] [Note] [QTY]

Hex socket head collared bolt M6X12 2

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

Banjo bolt M14X26 3

[Name] [Note] [QTY]

seal ring 14,2X17,9X1,5 6

[Name] [Note] [QTY]

retaining spring 38MM X

[Name] [Note] [QTY]

retaining spring 32MM X

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X15 1

only to be used for: 06D 121 492 H

06D 121 492 J

[Name]

No replacement part

[Name] [Note] [QTY]

Heat insulation 1

only to be used for: 06D 121 492 H

06D 121 492 J

[Name] [QTY]

Coolant pipe 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M10X16 1

[Name] [Note] [QTY]

Socket head bolt M6X12 1

[Name] [Note] [QTY]

Heat insulation 1

only to be used for: 06D 121 497 A

[Name]

Temperature sensor

No replacement part

[Name] [Note]

Cooler for coolant

see illustration: 121-071

[Name] [Note]

Reservoir

see illustration: 121-071

[Name] [Note]

Coolant regulator

see illustration: 121-075

[Name] [Note]

Oil cooler

see illustration: 115-055

[Name] [Note]

water connection

see illustration: 121-076

[Name] [Note]

Coolant hose

see illustration, item: 819-064,12

[Name] [Note]

Exhaust gas turbocharger

see illustration: 145-055

[Name]

O-ring

No replacement part

[Name] [Note] [QTY]

Spring band clamp 16X1,2 X

[Name] [Note] [QTY]

Spring band clamp 21X12 X

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 30X12 X

[Name] [Note] [QTY]

Spring band clamp 35X12 X

[Name] [Note] [QTY]

Spring band clamp 40X12 X

[Name]

retaining spring

No replacement part

[Name] [Model info] [QTY]

Coolant hose with quick release coupling PR:9M0 1

[Name] [Note] [Model info]

Coolant hose with quick release coupling PR:9M1,9M9

see illustration, item: 261-028,14

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant pipe 1
